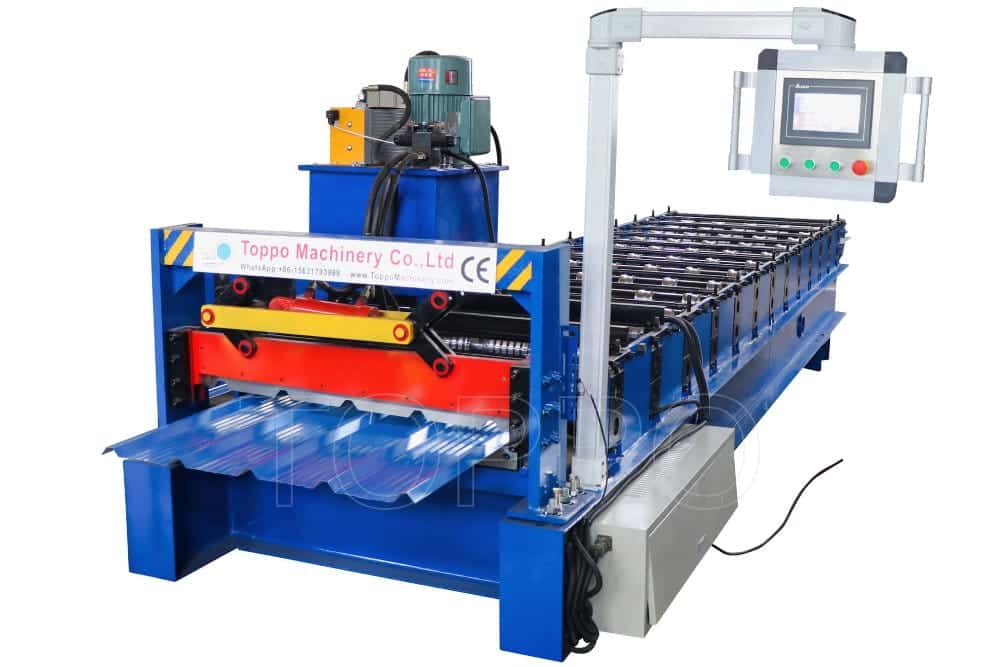

Machine Type: Trapezoidal roof panel roll forming machine
Application: Production of metal roofing and cladding panels

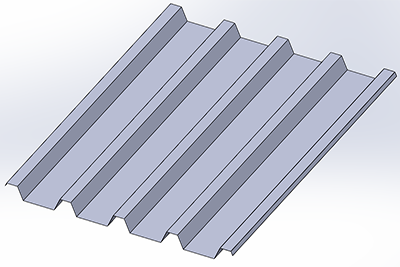

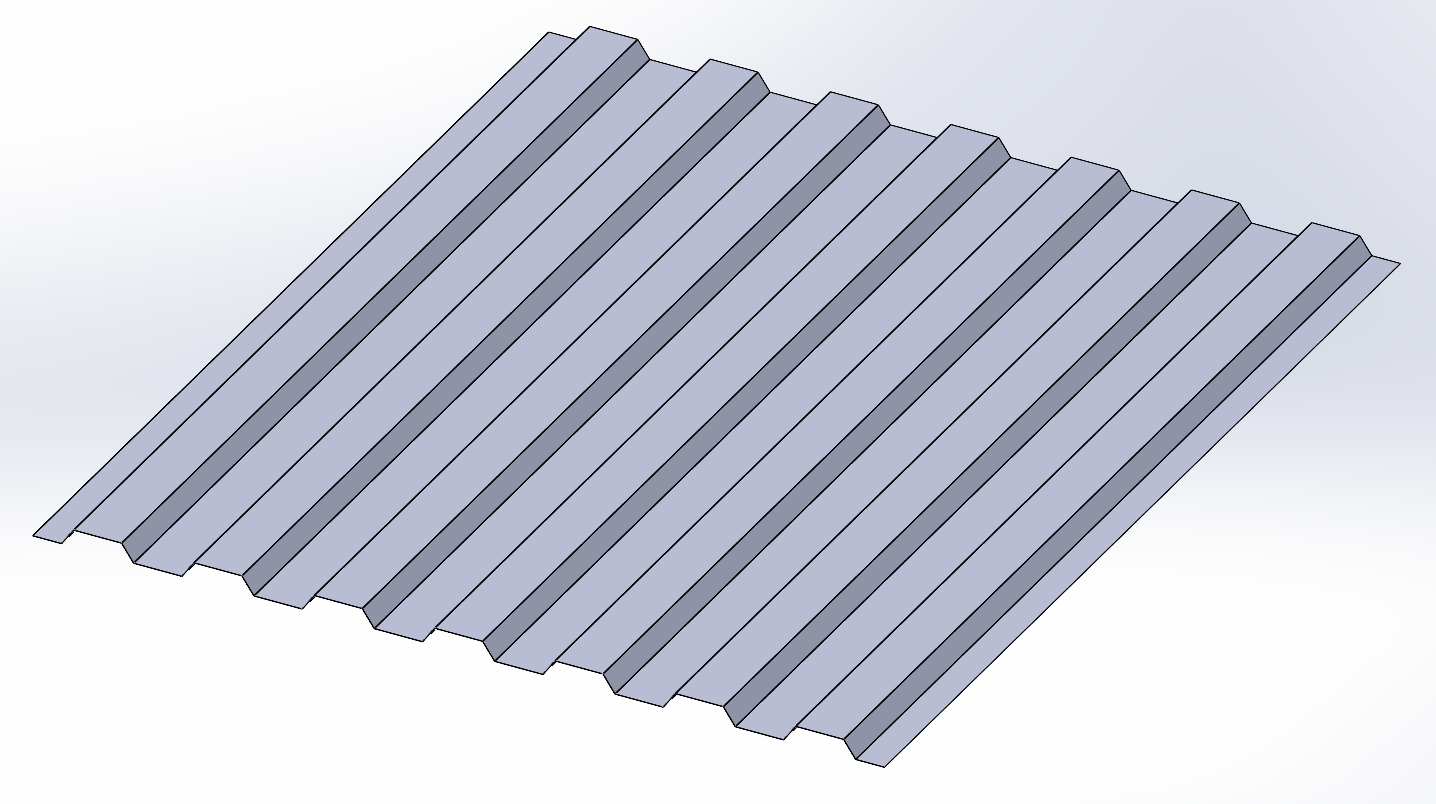

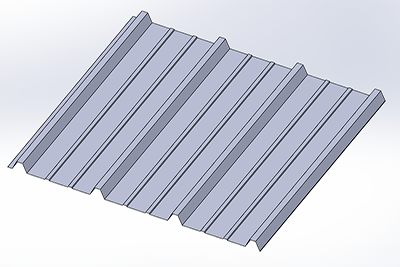

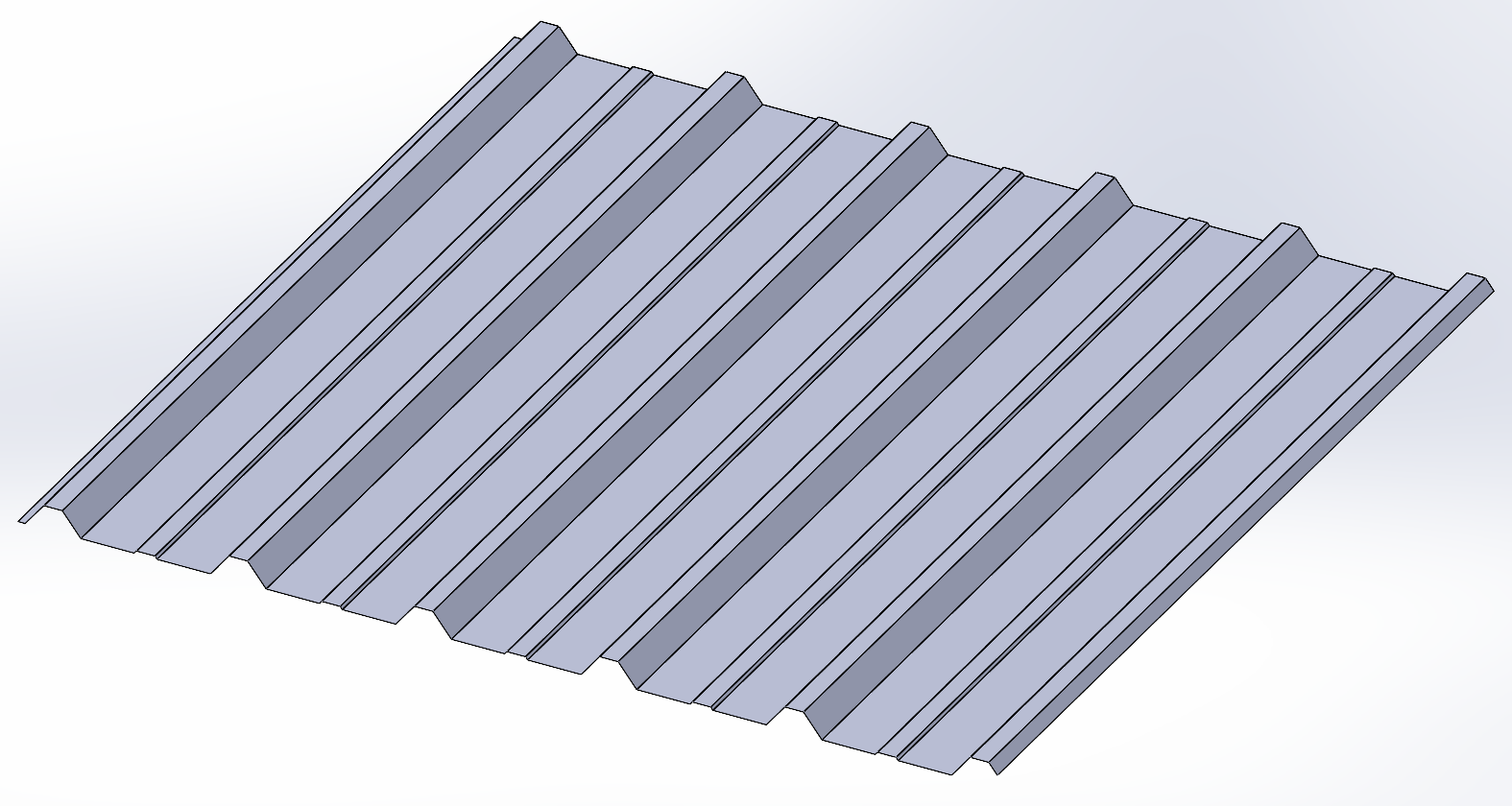

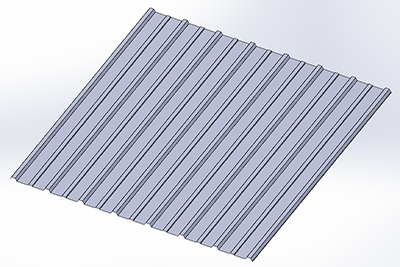

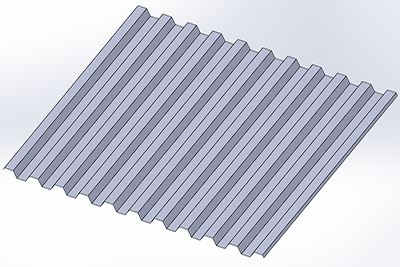

Panel Shape: Trapezoidal profile
Suitable Materials: Color steel, galvanized sheet, aluminum coil
Material Thickness: Approx. 0.3–1.0 mm

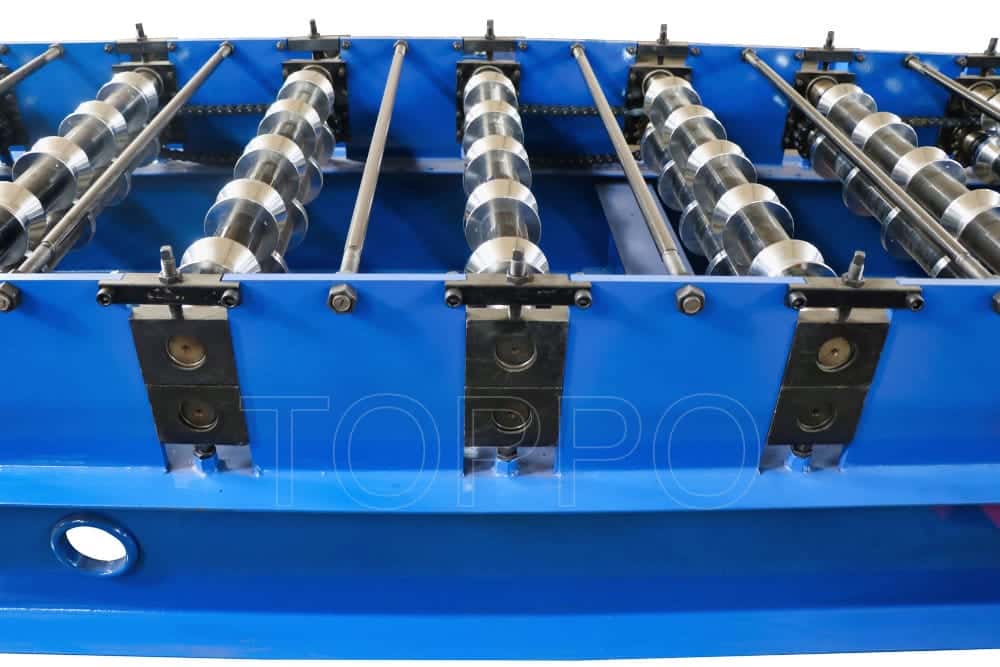

Forming Stations: Multiple roll forming stands

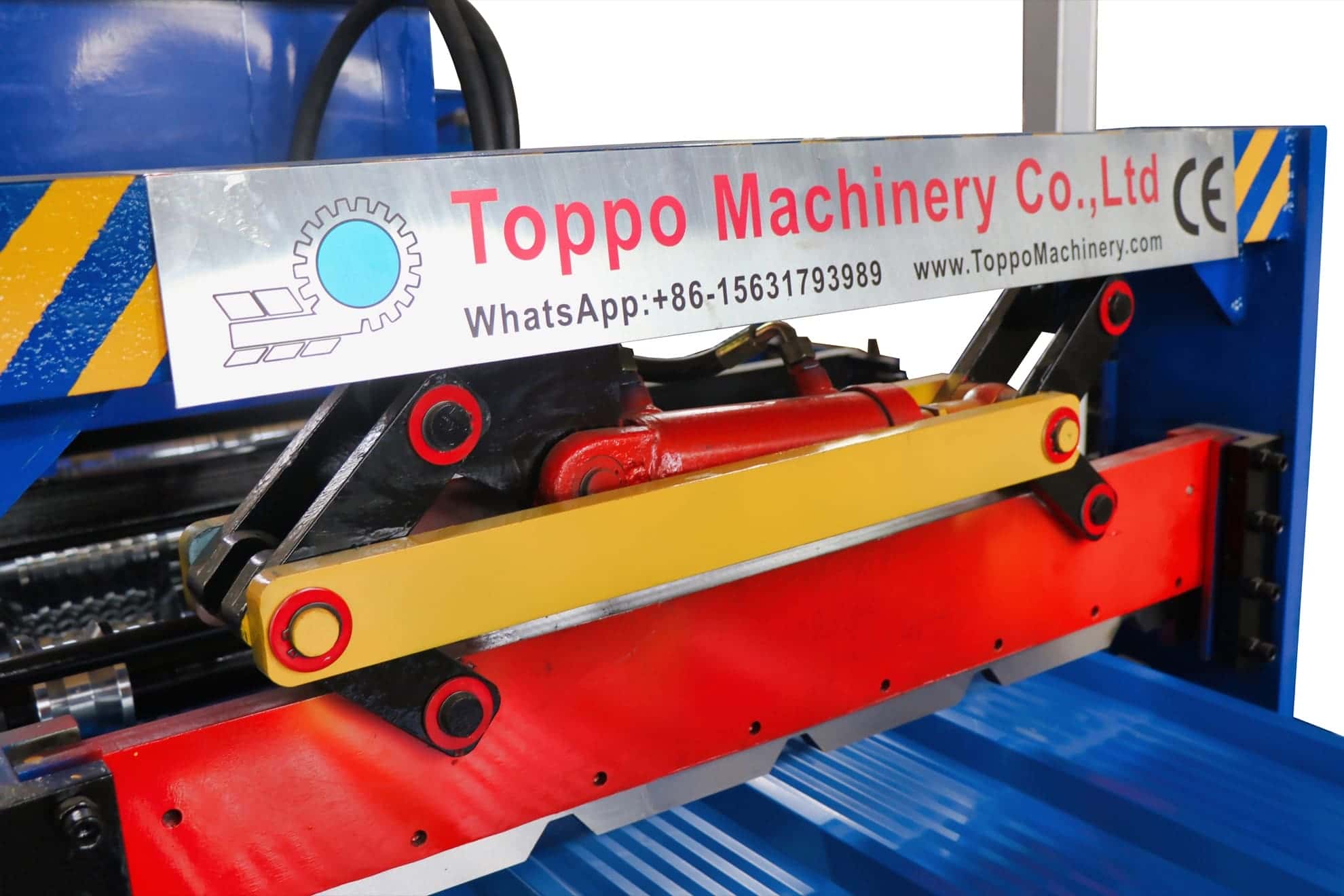

Cutting Type: Hydraulic post-cutting or pillar shear system
Control System: PLC control with touch screen
Drive Type: Motor + chain or gear drive
Shaft Material: Hardened steel (e.g. 45#)

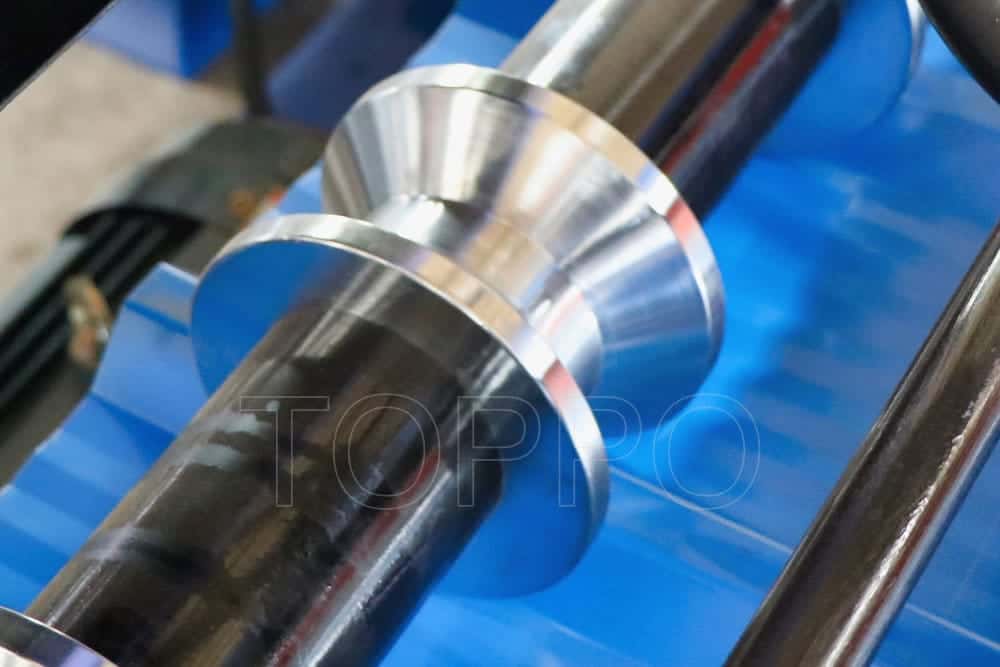

Roller Material: Hardened steel or alloy steel
Frame Structure: Welded steel base
Color: Industrial blue finish
Hydraulic System: Hydraulic pump with cylinders
Output Table: Discharge stand or support system
Voltage: 380V / 50Hz / 3 Phase (customizable)
Main Motor Power: Around 5.5 kW
Production Speed: Up to 8–12 m/min
Cutting Precision: ±2 mm
Language: Bilingual (English/Chinese), customizable
Transmission: Standard industrial chain or gear
Shaft Diameter: Typically Ø70 mm
Lubrication: Grease or oil, manual or automatic
Machine Length: Long-forming line configuration
Weight: Heavy-duty machine (several tons)
Base Dimensions: Custom width/length/height
Safety Guard: Protective cover or fencing
Adjustment Mode: Manual, servo, or mechanical

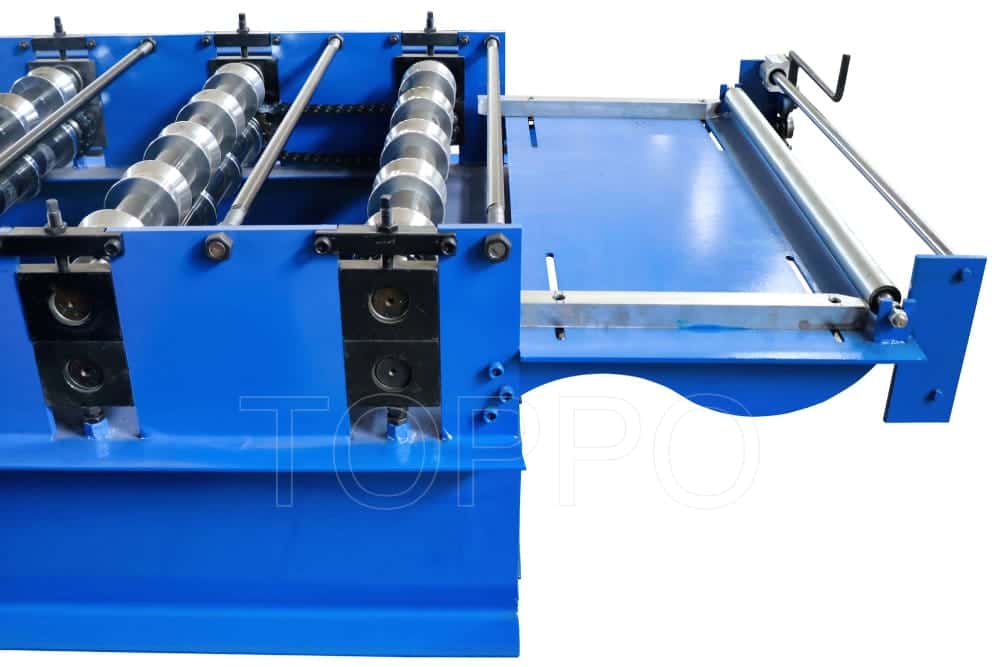

Feeding Device: Guided feeder
Decoiler: Equipped with manual or hydraulic decoiler
Bearings: Roller or ball bearings
Cooling: Fan-cooled or oil-cooled hydraulic system
Installation Method: Ground-mounted with anchor bolts
Electrical Cabinet: Independent control box
Wiring: Neat cable arrangement
Start/Stop: Push buttons, emergency stop, touchscreen
Fine Tuning: Handwheel, servo, or mechanical adjustment
Testing Function: Trial run feature
After-Sales: Technical support and spare parts service
