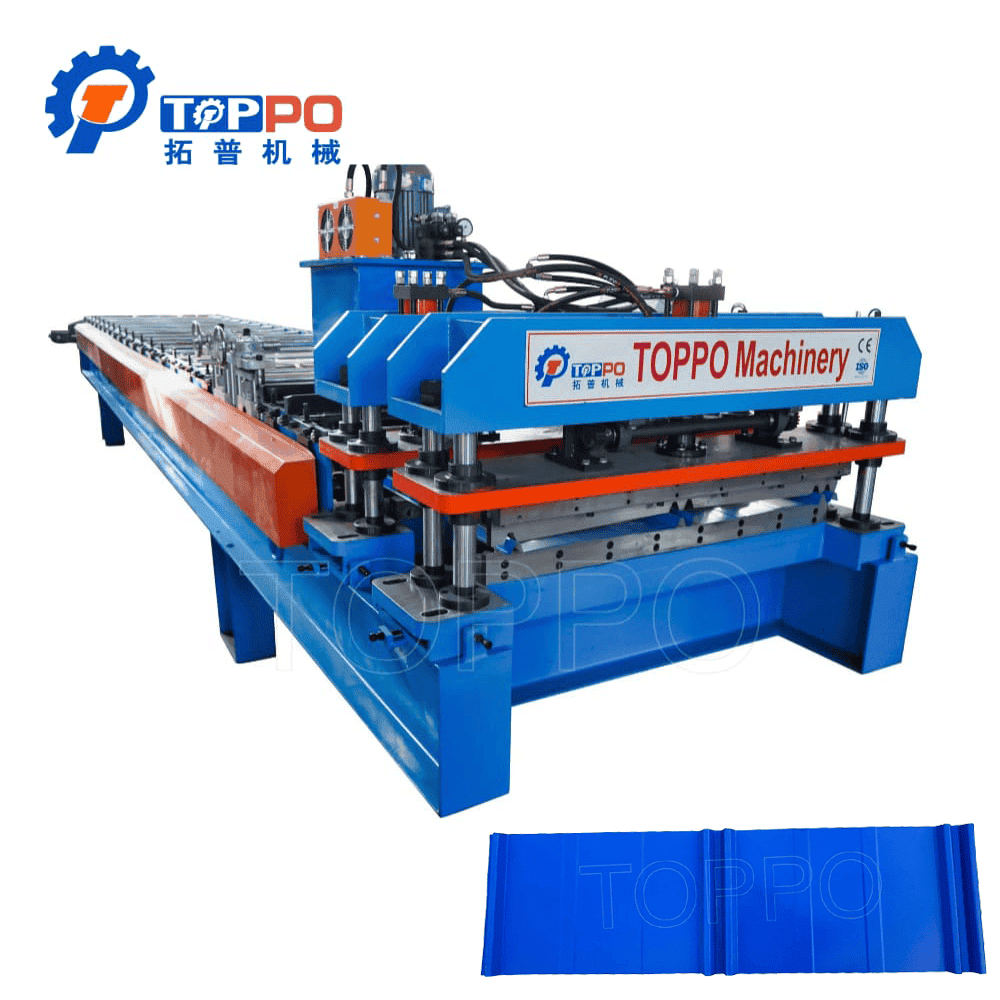

Machine Type: Trapezoidal Roof Sheet Forming Machine
Material: Galvanized steel, color-coated coil, aluminum
Thickness: 0.3-0.8mm
Effective Width: Customizable (e.g. 914mm, 1000mm, 1219mm)
Forming Speed: 10-15m/min
Main Motor Power: 5.5kW - 7.5kW
Hydraulic Power: 4kW
Voltage: 380V/50Hz/3Phase (customizable)
Control System: PLC (Siemens, Delta, Mitsubishi)
Drive Type: Chain / Gear Drive
Roll Stations: 14-20 steps
Roller Material: 45# Steel with hard chrome coating
Cutter Material: Cr12 mold steel, heat-treated
Cutting Method: Hydraulic tracking cutting
Machine Structure: Welded steel frame
Color: Blue + Orange (optional)
Profile Type: IBR trapezoidal roof panel
Application: Factory buildings, warehouses, residential roofing
Lifespan: Over 10 years
Warranty: 1 year
Installation: Overseas installation available
Packing: Anti-rust oil + plastic film + steel wire fixed
Delivery Time: 15-30 days
Forming Accuracy: ±1mm
Operation: Fully automatic + manual assist
Brand: TOPPO Machinery
Certifications: CE, ISO
Total Weight: 5-8 tons
Machine Length: 8-10 meters
Noise Level: Low
Lubrication: Auto oiling system (optional)
Language Support: English / Chinese / Custom
Daily Output: 6000m²
Customization: OEM / ODM available
Additional Features: Rib pressing, punching system (optional)
Export Markets: Africa, Southeast Asia, Middle East
User Training: Online video guidance
Software: Integrated with easy fault detection
Maintenance: Low maintenance cost
Spare Parts: Available on request
Roll Forming Type: Continuous cold roll forming
