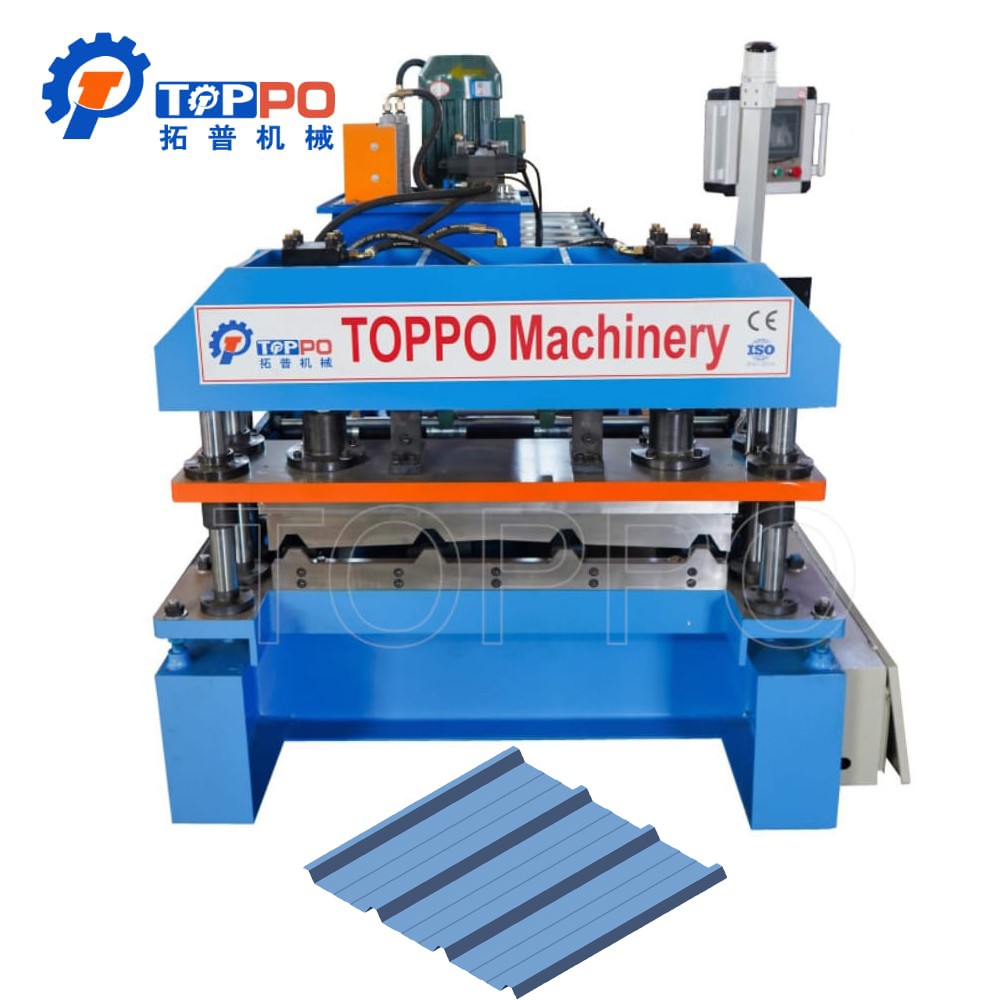

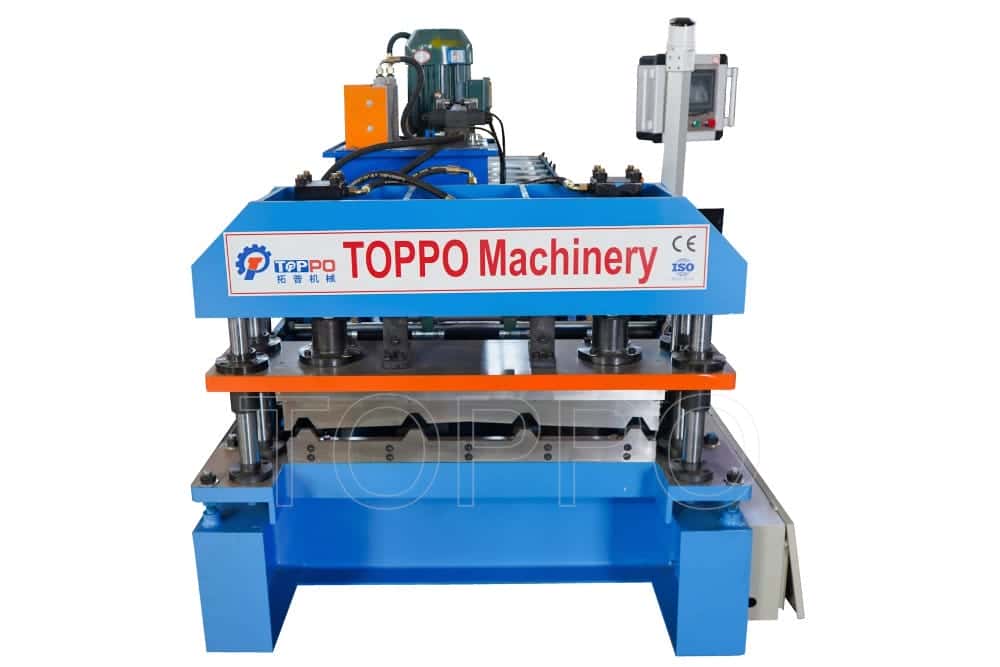

Machine Type: Roll Forming Machine
Application: Roof Sheet Production
Profile Type: Trapezoidal
Material: Galvanized Steel, Color Steel, Aluminum
Thickness Range: 0.3 – 0.8 mm
Coil Width: 1000–1250 mm
Forming Speed: 10–15 m/min
Roller Stations: 16–20 stations
Roller Material: GCr15 steel with hard chrome coating
Cutting Type: Hydraulic cutting
Cutting Blade Material: Cr12 with heat treatment
Drive Type: Chain drive / Gearbox
Main Motor Power: 5.5–7.5 kW
Hydraulic Station Power: 4 kW
Control System: PLC control (Delta/Siemens)
Operation Panel: Touch Screen HMI
Voltage: 380V/50Hz/3Phase (customizable)
Frame Structure: 300H Steel Welded
Side Panel Thickness: 16 mm
Transmission Type: Chain/gear
Roller Shaft Diameter: 75 mm
Machine Dimension: About 8.5m x 1.5m x 1.5m
Machine Weight: 5.5–6.5 tons
Certification: ISO, CE
Cutting Tolerance: ±1 mm
Automation Level: Fully automatic
Noise Level: Low
Lubrication System: Manual / Automatic optional
Maintenance: Low maintenance design
Tooling Lifetime: >10 years
Safety System: Emergency stop buttons, protective covers
Installation: On-site guidance available
Warranty: 12 months
After-sales Service: Online support, video training
Feeding Guide: Adjustable with rollers
Uncoiler: Manual or hydraulic optional
Output Table: Manual / automatic stacker
Color: Industrial Blue (customizable)
Software Update: PLC programmable updates
Export Markets: Asia, Africa, South America, Europe
Delivery Time: 30 days after deposit
