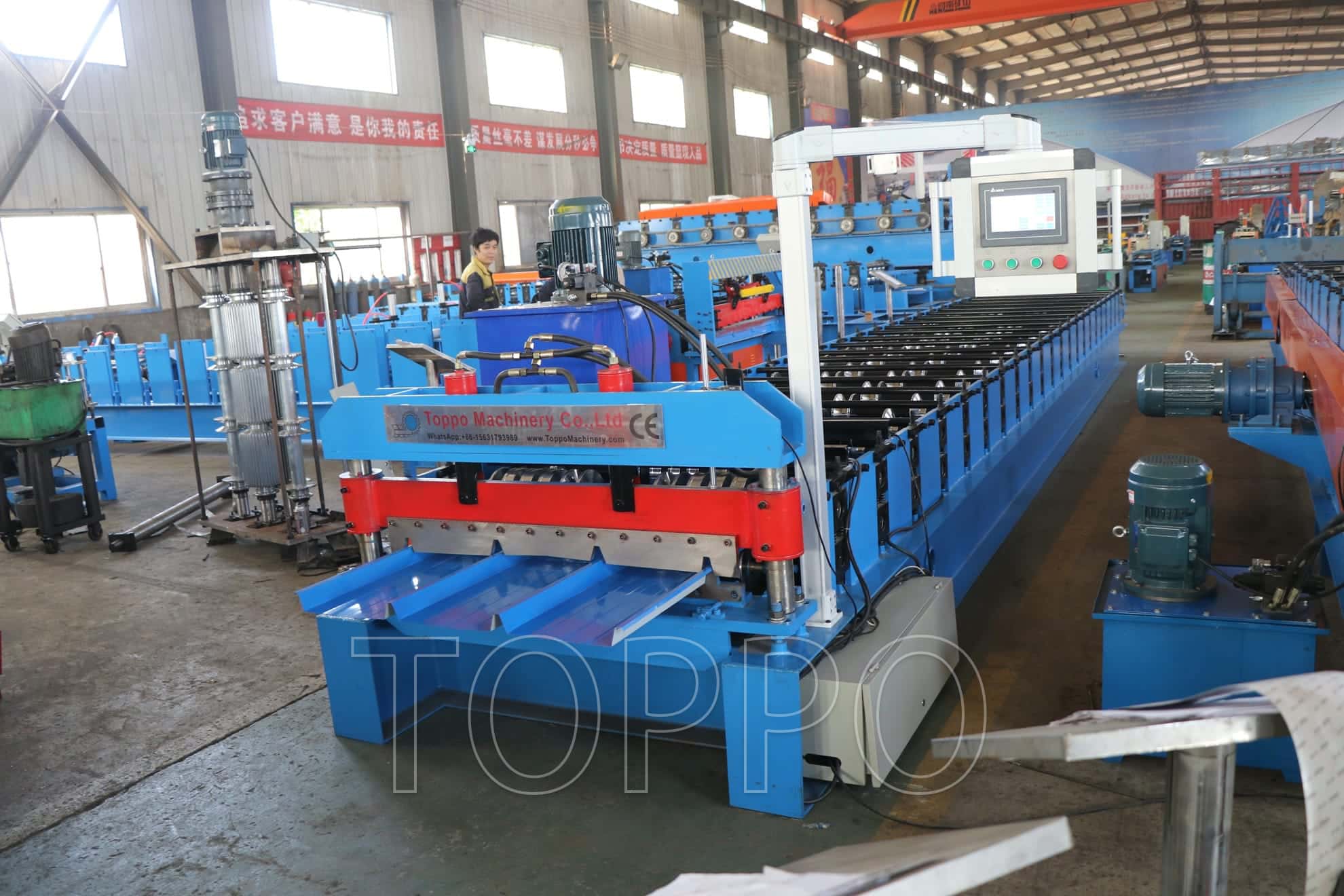

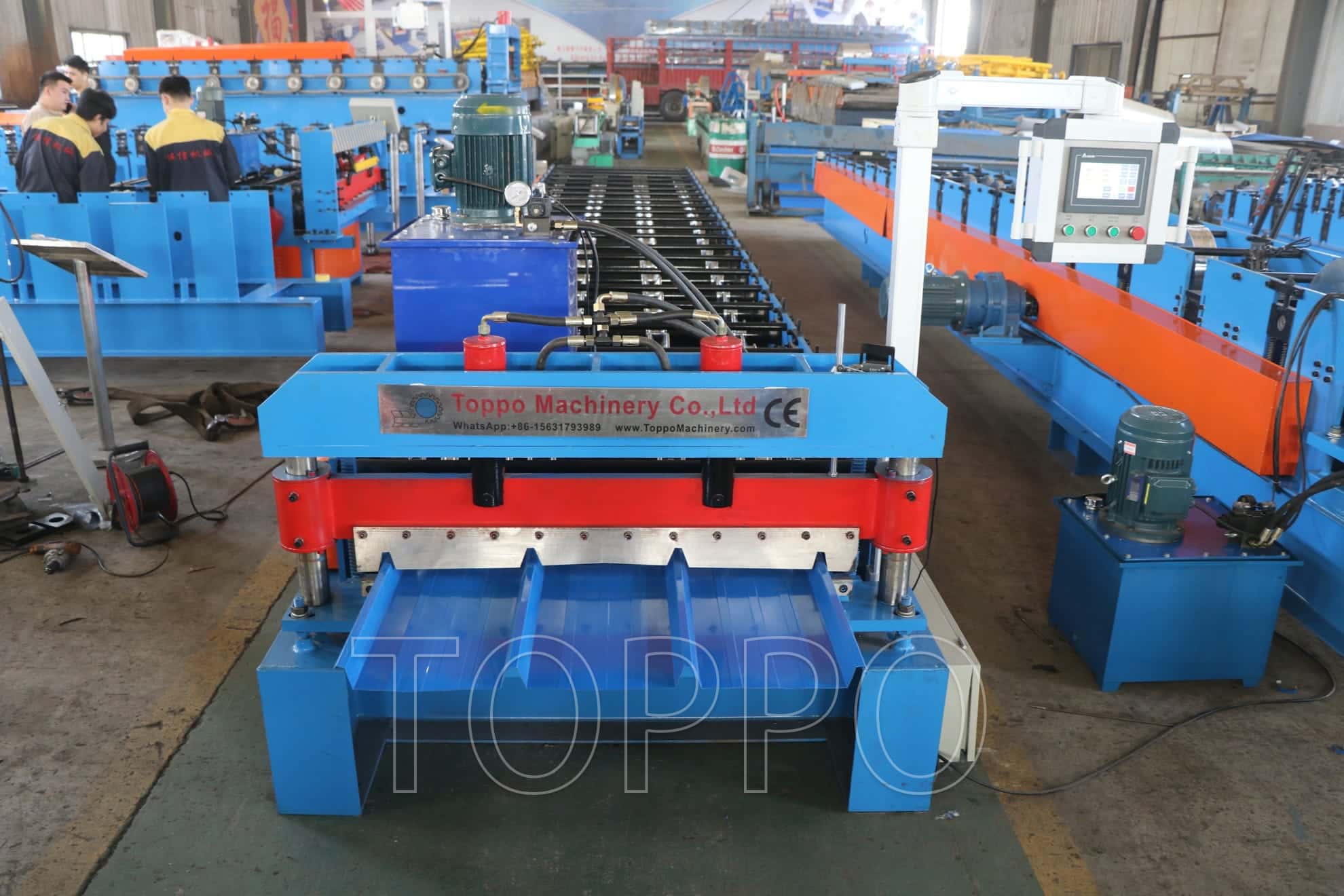

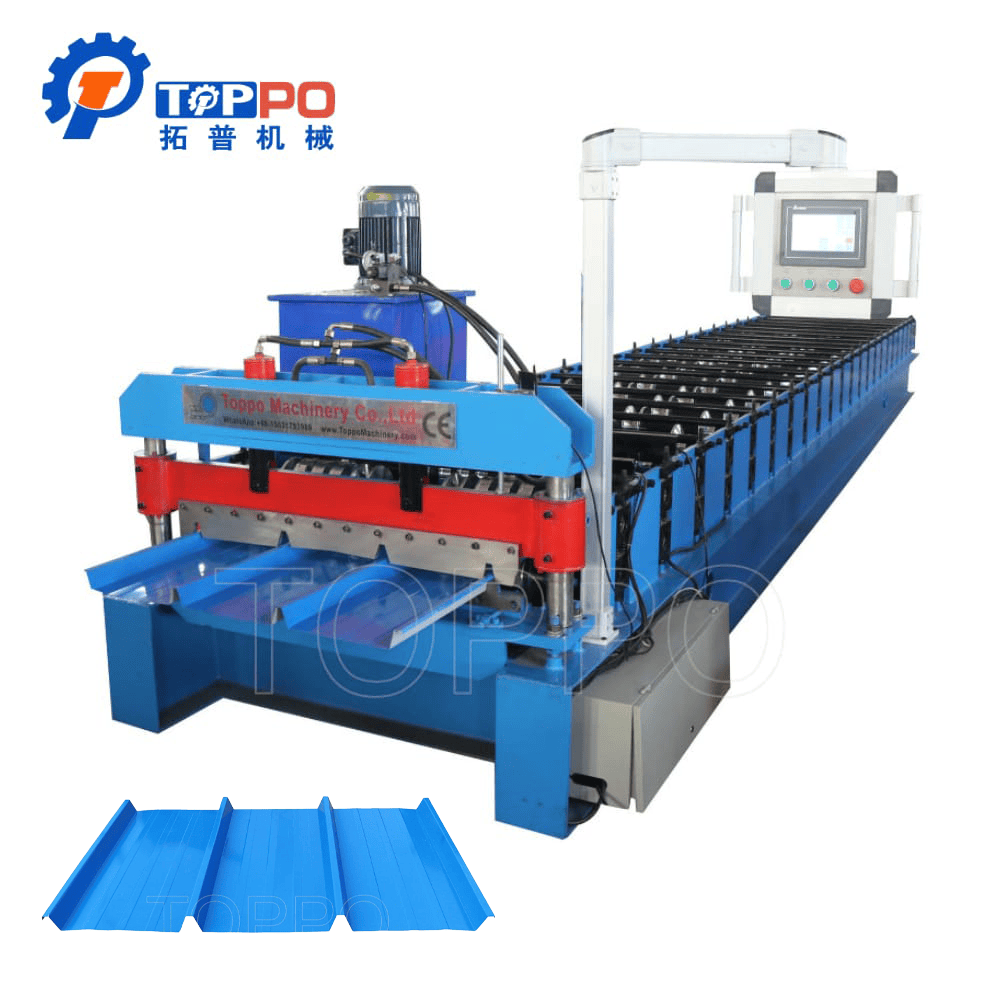

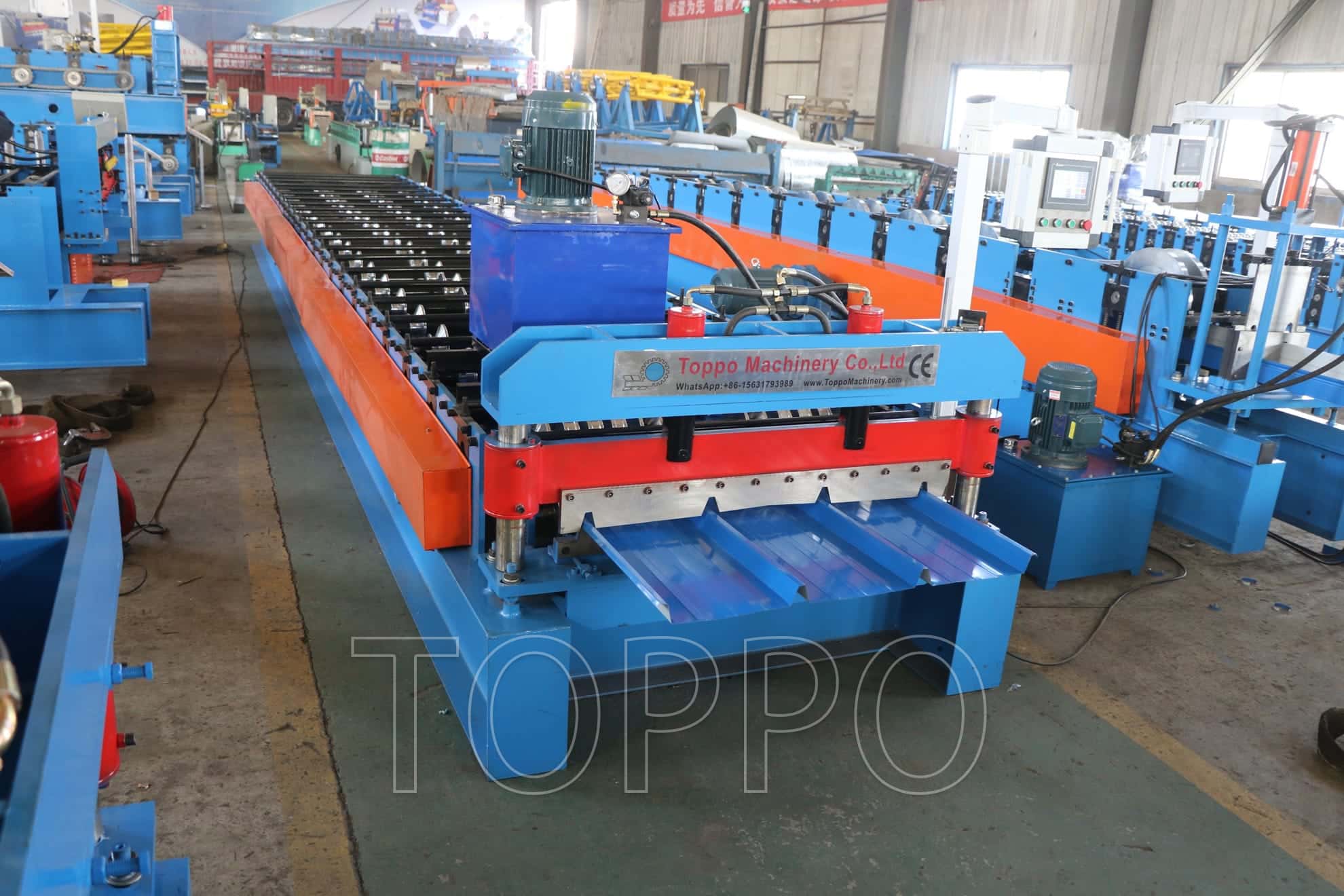

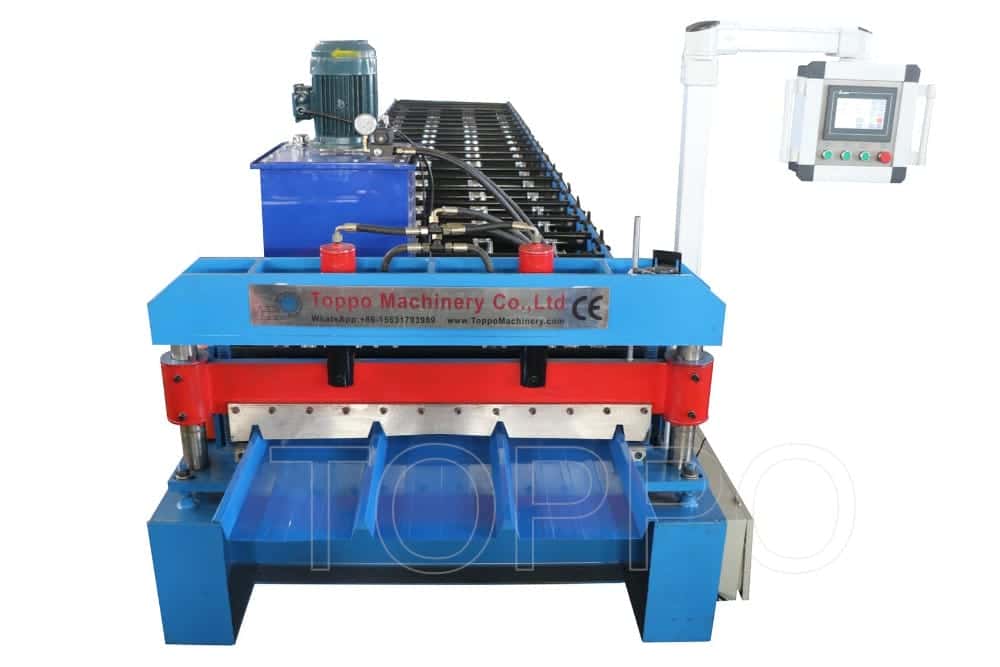

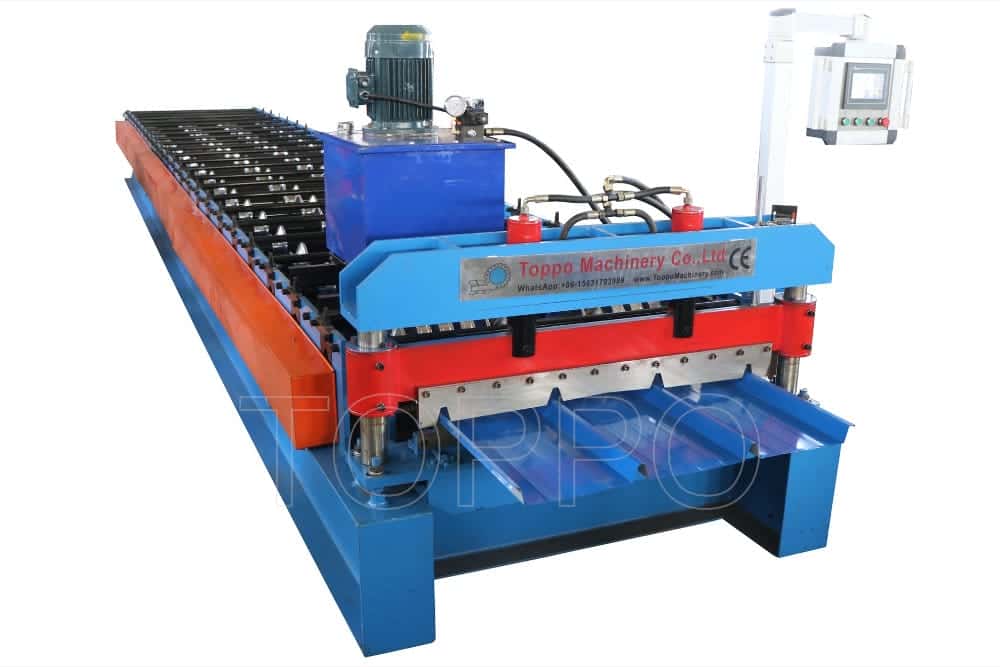

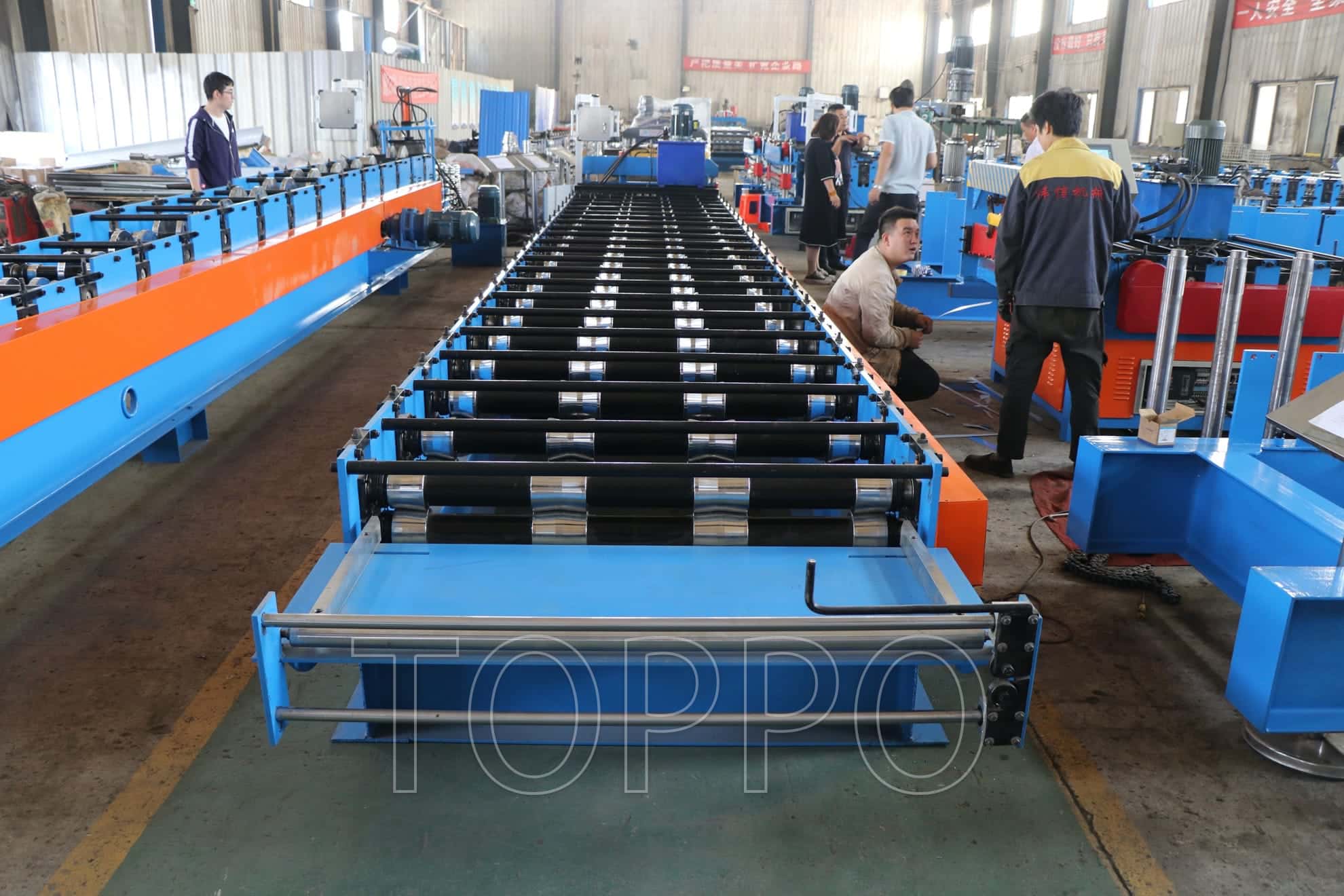

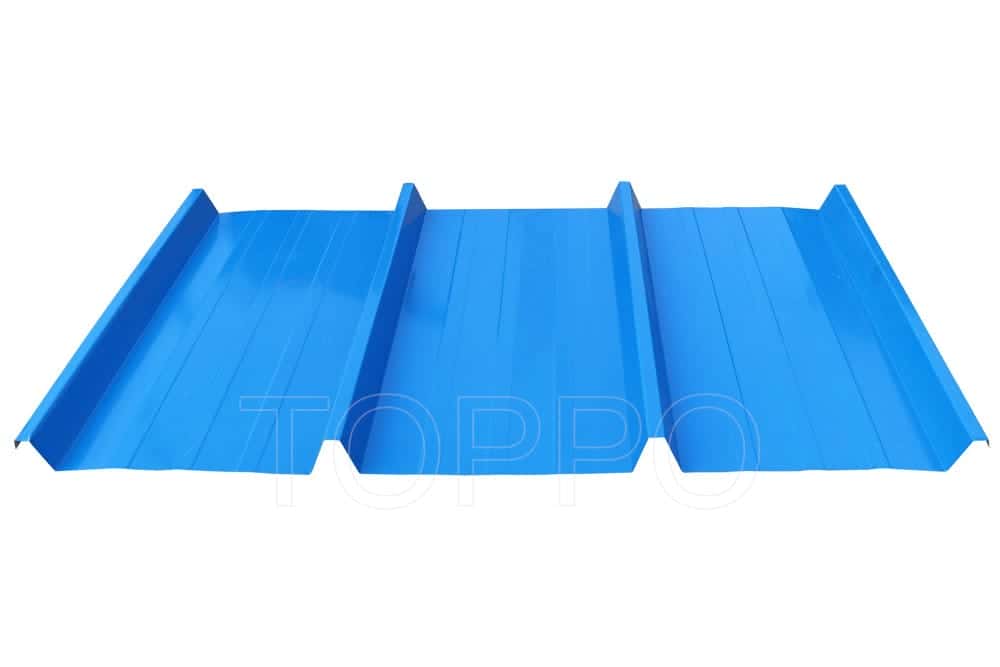

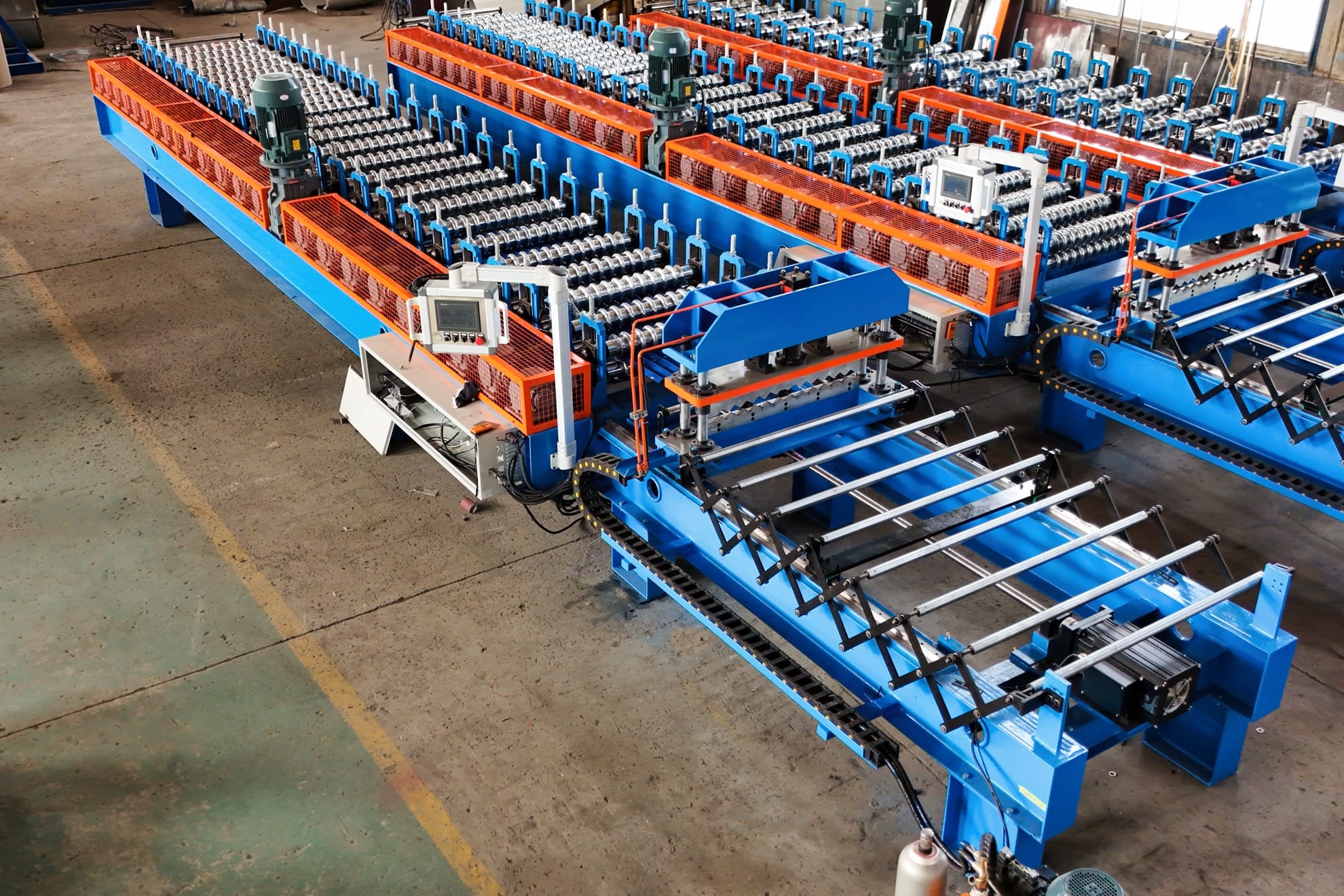

This roll forming machine is a specialized piece of equipment used in producing trapezoidal-shaped metal roofing sheets from steel coils. It is engineered for durability, ease of use, and high-volume production, making it ideal for construction material manufacturers and roofing panel suppliers worldwide.
Machine Type: Trapezoidal Roof Roll Forming
Application: Roofing Panel Manufacturing
Forming Material: Galvanized Steel, Pre-painted Steel, Aluminum
Raw Material Thickness: 0.3–0.8 mm
Feeding Width: 1000–1250 mm
Effective Panel Width: 836–1050 mm (customizable)
Production Speed: 12–15 m/min

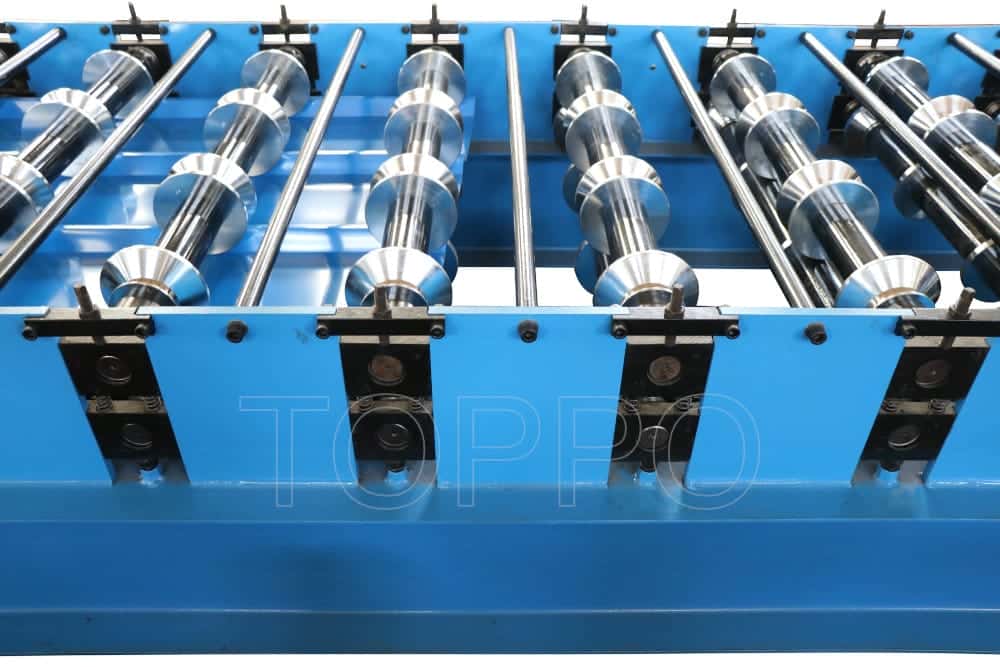

Roller Stations: 16–20 stations

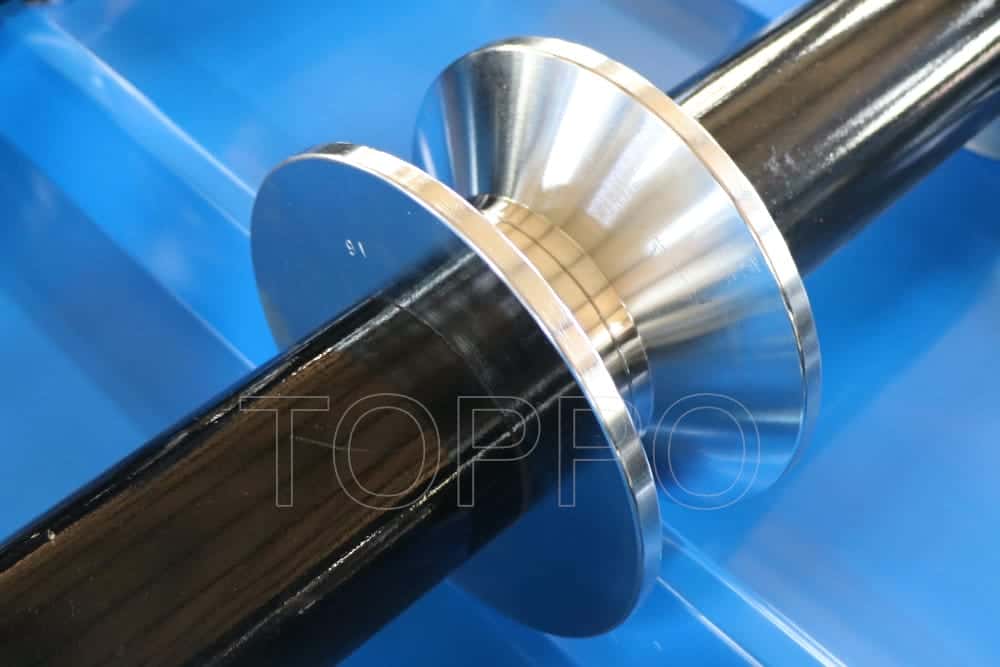

Roller Material: GCr15 with hard chrome plating
Shaft Diameter: 75 mm solid shaft
Machine Frame: Welded steel plate, 300H beam base
Drive System: Chain drive or gearbox driven

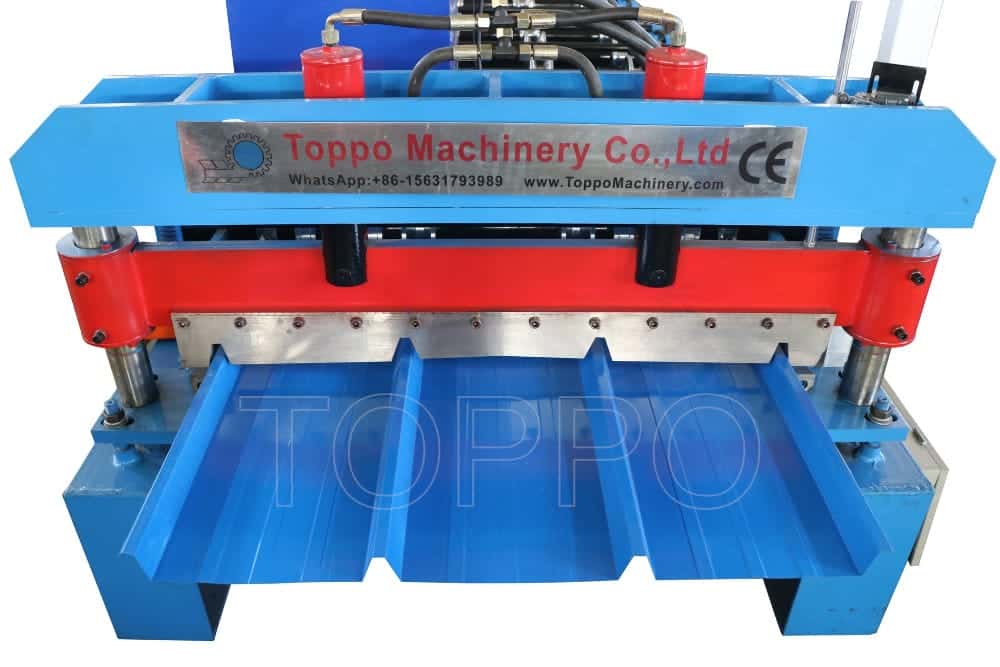

Cutting System: Hydraulic post-cutting
Blade Material: Cr12Mov, quenched
Hydraulic Power: 4.0 kW
Main Motor Power: 7.5 kW
Control System: PLC (Delta/Siemens), fully automated
Touch Screen: Human-machine interface
Operation Mode: Automatic/Manual switchable
Power Supply: 380V/50Hz/3Phase (or customized)
Machine Dimensions: Approx. 8500mm x 1500mm x 1500mm
Weight: Approx. 5.5–6.5 tons
Cutting Accuracy: ±1 mm
Side Wall Thickness: 16 mm
Protective Cover: Provided for chain/gear safety
Color: Blue + Red (customizable)

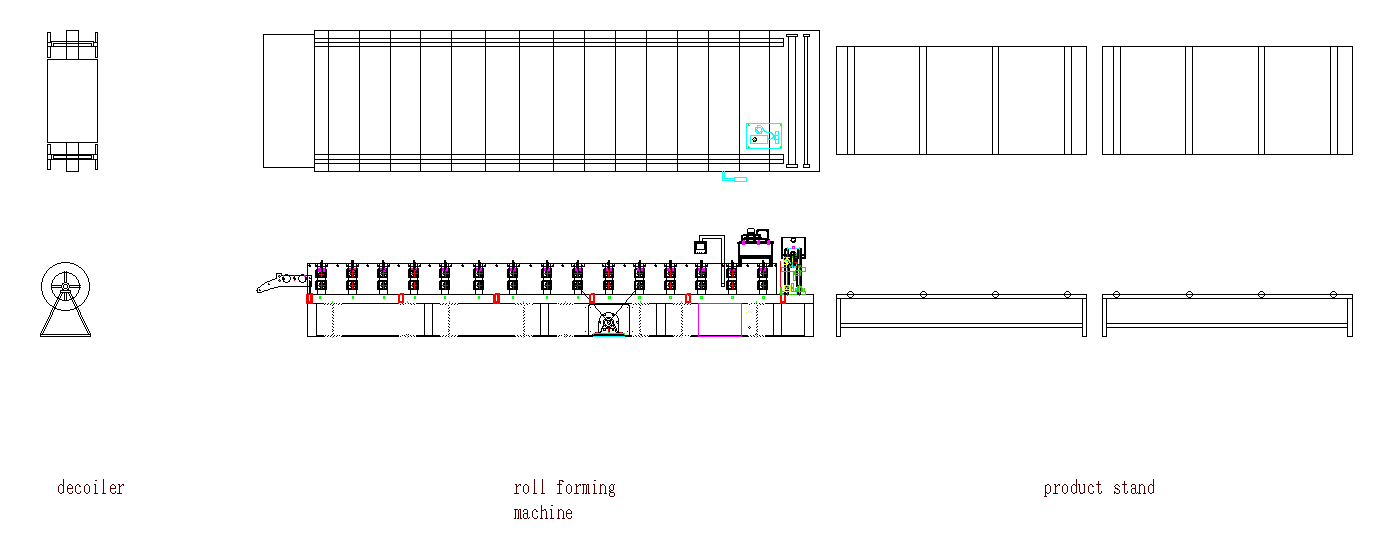

Uncoiler: Manual or hydraulic (optional)
Output Table: Manual collection table or automatic stacker
Noise Level: ≤75 dB
Cooling System: Optional air/oil cooling
Emergency Stop: Yes
Working Temperature: -10℃ to 45℃
Environment: Indoor industrial workshop
Tool Life: Over 10 years with regular maintenance
Spare Parts: Available upon request
Technical Support: Video guide, remote assistance
Warranty: 1 year standard
Customization: Profile, size, voltage all customizable
OEM/ODM: Accepted
Delivery Time: 25–30 working days after deposit
Certifications: CE, ISO9001
Compared with traditional forming machines, this model offers higher precision and faster forming speed. With the advanced PLC control system and hydraulic cutting unit, it reduces production downtime and increases operational efficiency. It is a preferred solution for industrial-scale metal sheet fabrication for roofing and cladding applications.
