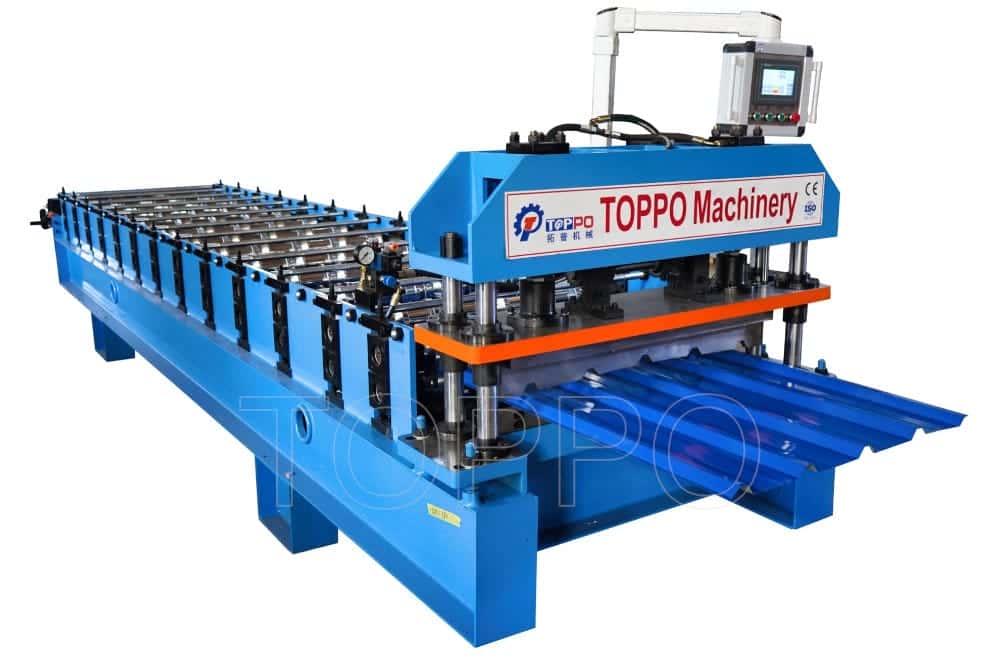

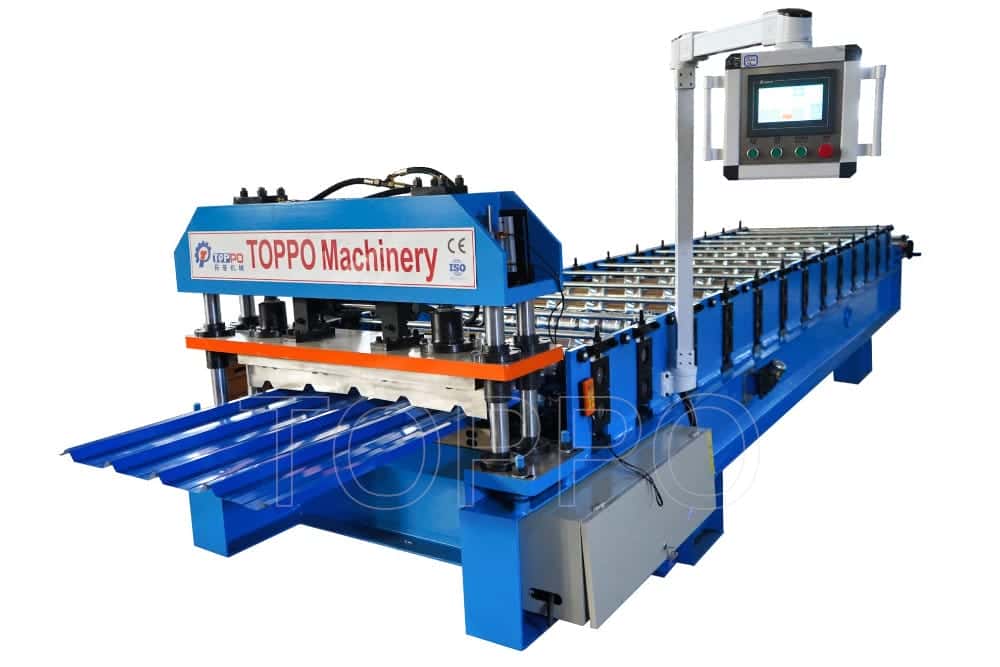

The TOPPO trapezoidal panel forming machine is specially designed for fabricating roofing sheets with trapezoidal profiles. It processes metal coils into finished roof panels automatically, with high accuracy and efficiency. This model is perfect for steel structure building manufacturers, contractors, and metal product exporters.
Profile Type: Trapezoidal roofing panels
Raw Material: Galvanized Steel, PPGI, Aluminum
Material Thickness: 0.3–0.8 mm
Input Coil Width: 1000–1250 mm
Effective Panel Width: 836–1050 mm
Forming Speed: 12–15 m/min
Roller Stations: 16–20
Roller Shaft Diameter: 75 mm
Roller Material: GCr15 with hard chrome plating
Drive Type: Chain or Gearbox
Main Motor Power: 7.5 kW
Hydraulic Power: 4.0 kW

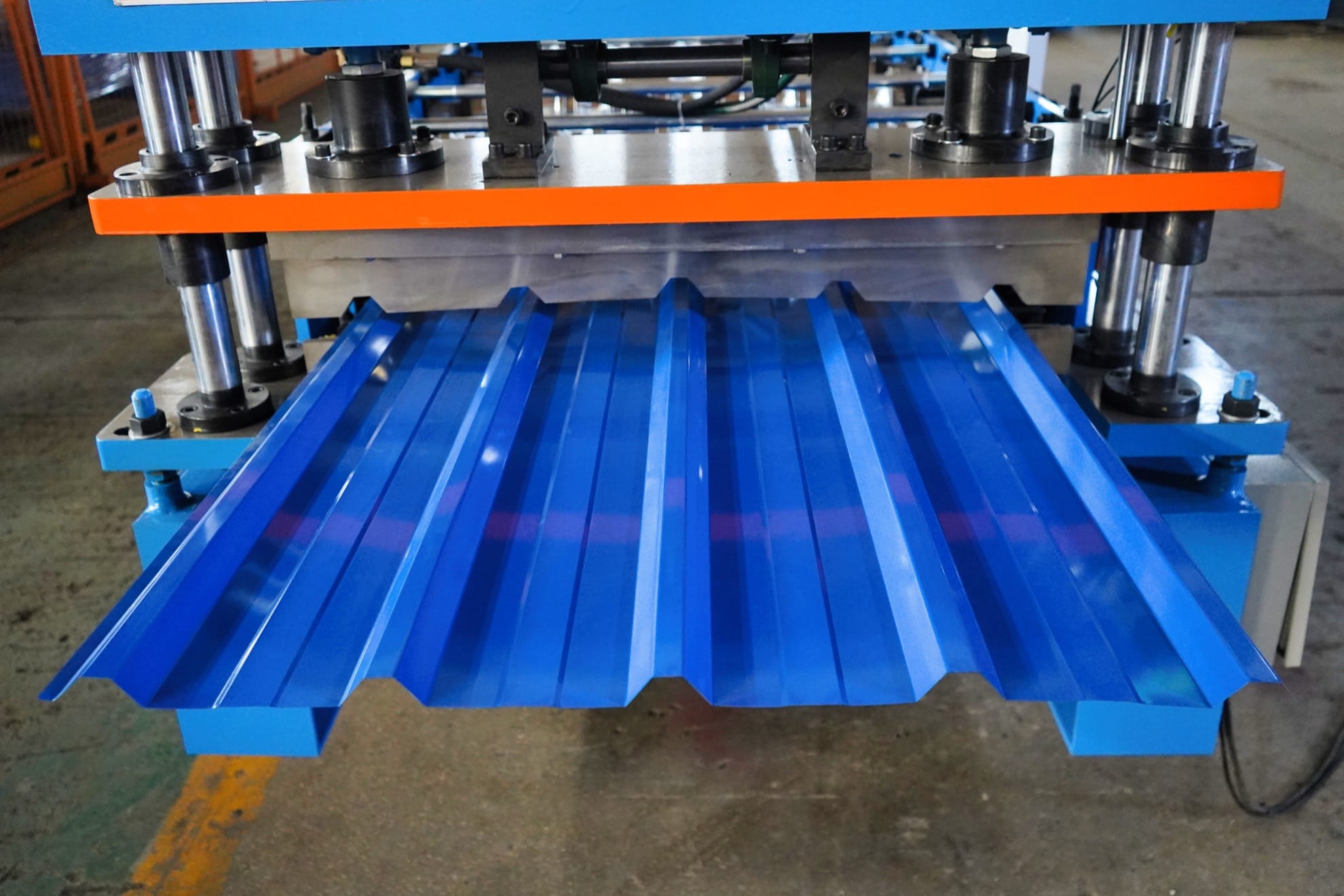

Cutting System: Hydraulic cutting, post-cut type
Cutting Blade Material: Cr12Mov, heat-treated
Cutting Accuracy: ±1 mm
PLC System: Siemens or Delta
Touch Screen: HMI interface for easy operation
Power Supply: 380V/50Hz/3Phase (customizable)
Machine Structure: 300H steel welded frame
Side Panel Thickness: 16 mm
Safety System: Emergency stop + protective covers
Output Table: Manual/auto stacking available
Uncoiler: Optional 5T hydraulic/manual
Machine Dimensions: Approx. 8500 x 1500 x 1500 mm
Machine Weight: 5.5–6.5 tons
Color: Blue/Orange (customizable)
Noise Level: ≤75 dB
Tool Life: >10 years
Production Line Type: Fully Automatic
OEM Service: Available
Warranty: 12 months
After-sales Support: Remote guidance, videos, parts
Operator Requirement: 1–2 person(s)
Installation Support: Engineer available
Maintenance: Easy access with low cost
Storage Temperature: -20℃ to +55℃
Surface Treatment: Rust-resistant coated body
Packaging: Steel frame + plastic film
Lead Time: 30 days after deposit
Market Coverage: Asia, Middle East, Africa, Europe
Certifications: CE, ISO
This trapezoidal roll forming machine is engineered to produce flawless roofing sheets that meet global standards. With its fully digital PLC automation system and precision cutting, it eliminates human error and reduces material waste. Whether you're upgrading your factory or starting a new line, this is a cost-effective investment with long-term returns.
