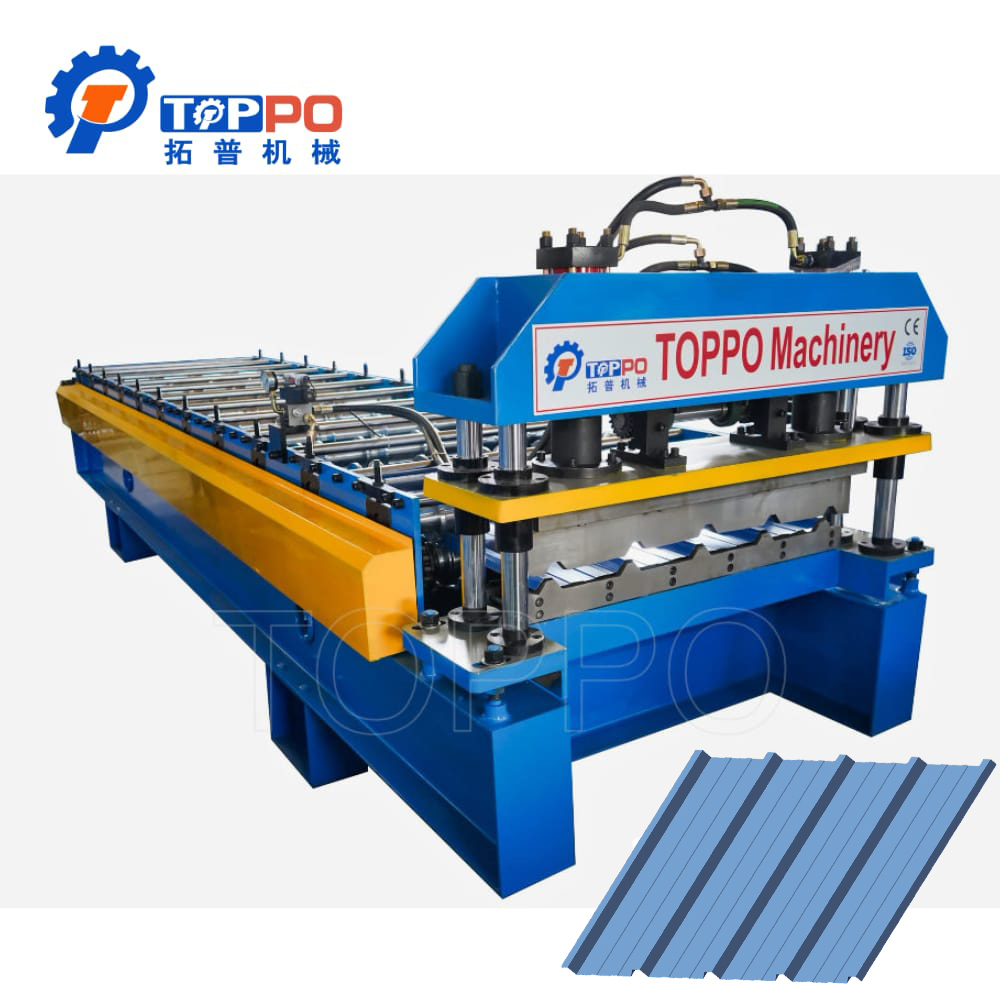

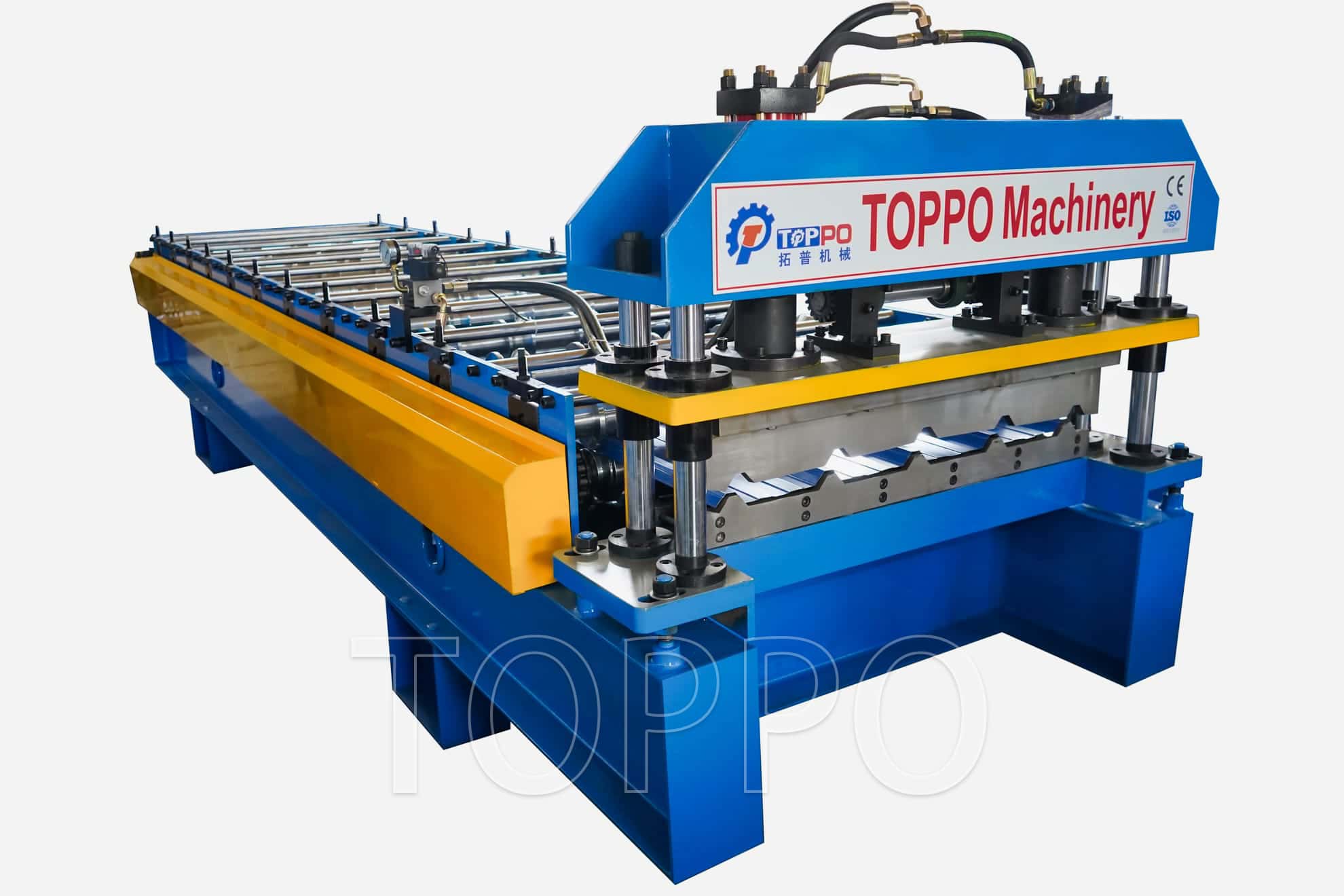

This machine is specifically designed for manufacturing trapezoidal steel roofing panels from coiled metal sheets. The robust construction, customizable forming rollers, and advanced control system make it an essential asset for metal product manufacturers, construction firms, and export suppliers.
Profile Type: Trapezoidal Sheet
Application: Roofing & Wall Panel Production
Material Compatibility: Galvanized Steel, PPGI, Aluminum
Sheet Thickness: 0.3–0.8 mm
Input Coil Width: 1000–1250 mm
Output Panel Width: 836–1050 mm (adjustable)
Forming Speed: 10–15 m/min
Roller Stations: 16–20 steps
Roller Shaft Diameter: 75 mm
Roller Material: GCr15 steel, chrome-coated
Main Frame: 300H steel structure, welded
Drive System: Chain or Gear transmission
Main Motor Power: 7.5 kW
Hydraulic Station Power: 4.0 kW
Cutting Type: Hydraulic post-cutting
Blade Material: Cr12Mov with quenching
PLC Control: Siemens / Delta
HMI: Touchscreen Operation
Voltage: 380V/50Hz/3Phase (customizable)
Control Mode: Auto / Manual selectable
Cutting Precision: ±1 mm
Side Plate Thickness: 16 mm
Working Environment: Indoor, ventilated
Machine Dimensions: Approx. 8500 x 1500 x 1500 mm
Machine Weight: 6 tons approx.
Noise Level: ≤75 dB
Color: Blue & Yellow (customizable)
Safety Features: Emergency stop, guards, overload protection
Feeding Guide: Manual adjustable with rollers
Uncoiler: Optional manual or hydraulic 5T
Output Table: Manual or automatic stacker
Tooling Lifespan: 8–10 years (with maintenance)
Maintenance Access: Easy, with minimal downtime
OEM & ODM: Available
Certification: CE, ISO9001
Operator Needed: 1–2 persons
After-sales Support: Online video, guide documents
Warranty: 12 months from shipment
Delivery Time: 25–30 working days
Packing Method: Plastic film + steel base
Export Markets: Middle East, Southeast Asia, Africa, South America
This model is built with precision in mind. It can be customized for your specific trapezoidal profile design. The use of high-grade components ensures a long lifespan and low operational cost. Its intuitive control system makes it easy to switch profiles or change batch lengths, making it perfect for both mass production and flexible orders.
