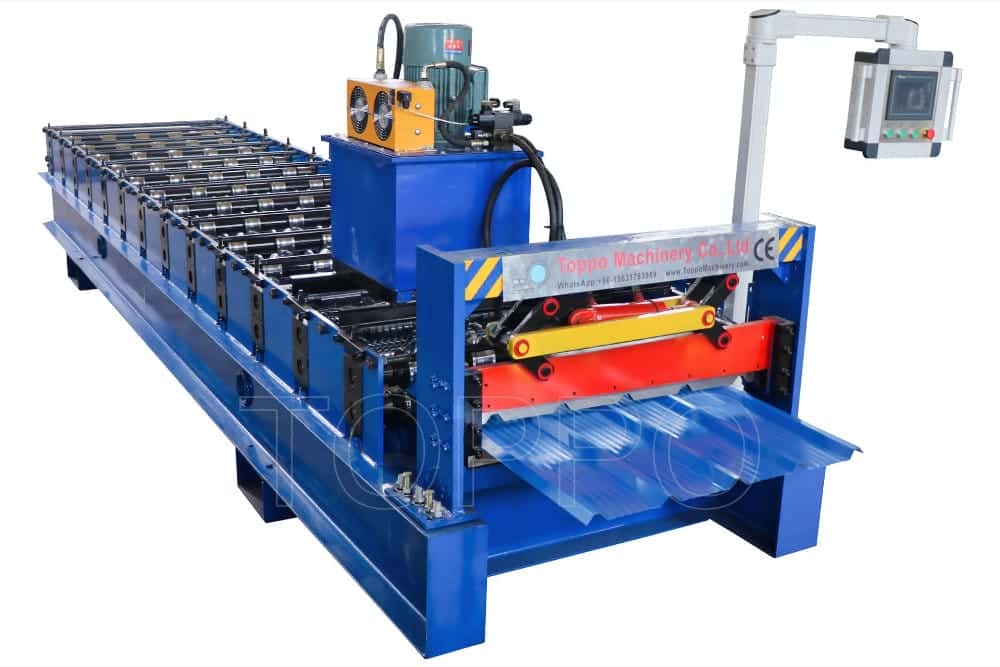

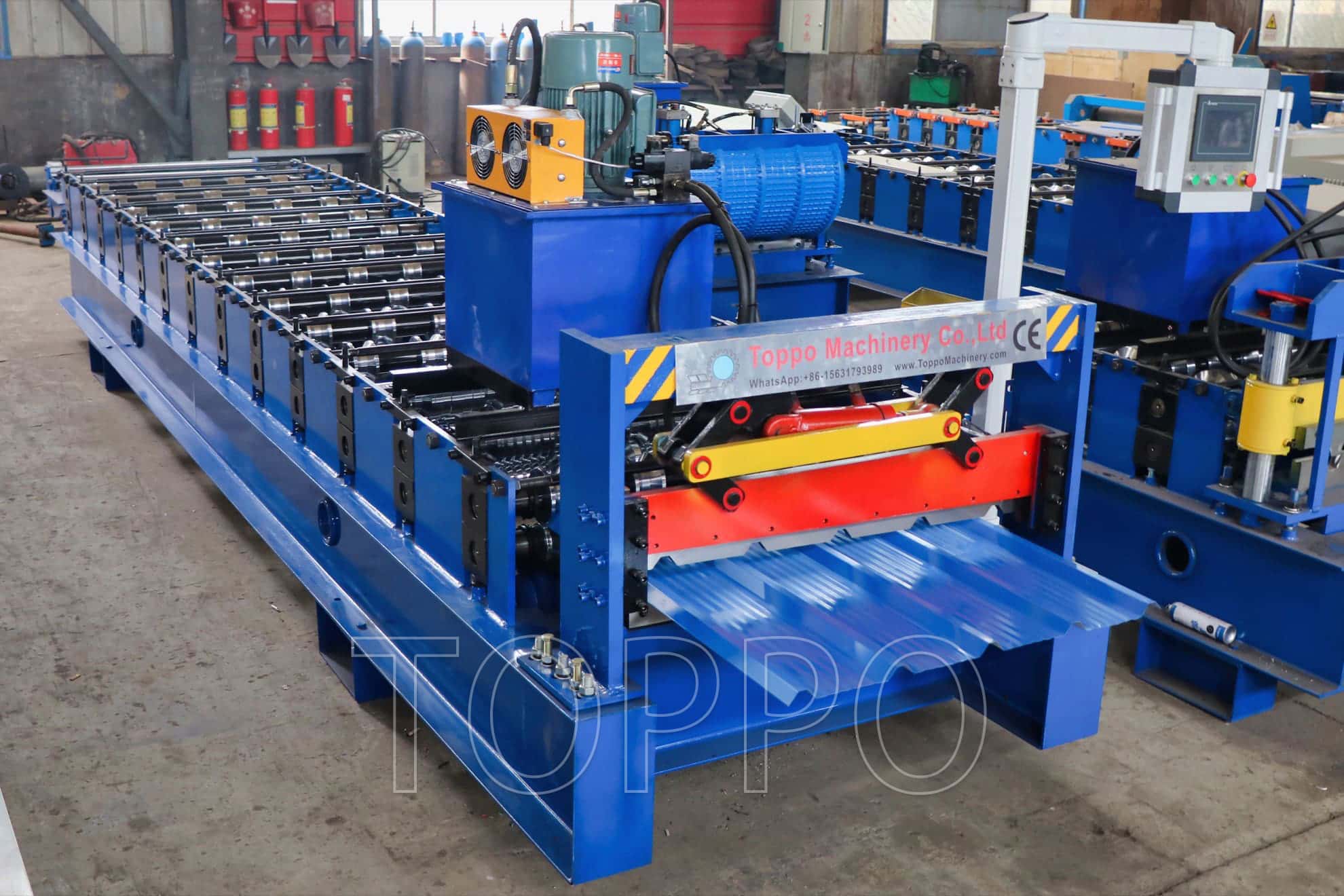

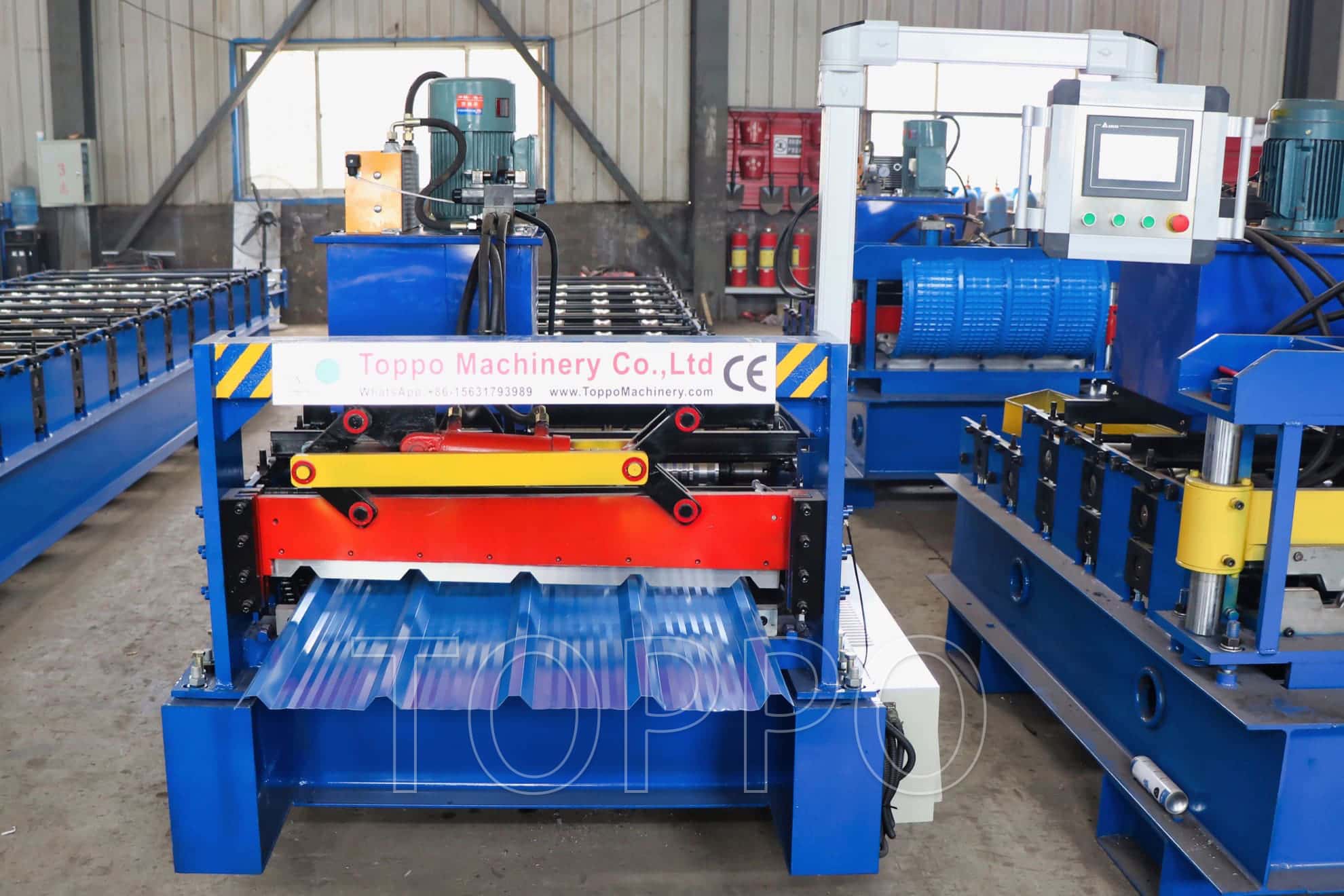

This roll forming line is engineered to produce high-precision trapezoidal roofing sheets from steel coils. With a fully automated operation, advanced PLC interface, and post-shear hydraulic cutter, it is ideal for manufacturers of large-scale roofing materials.

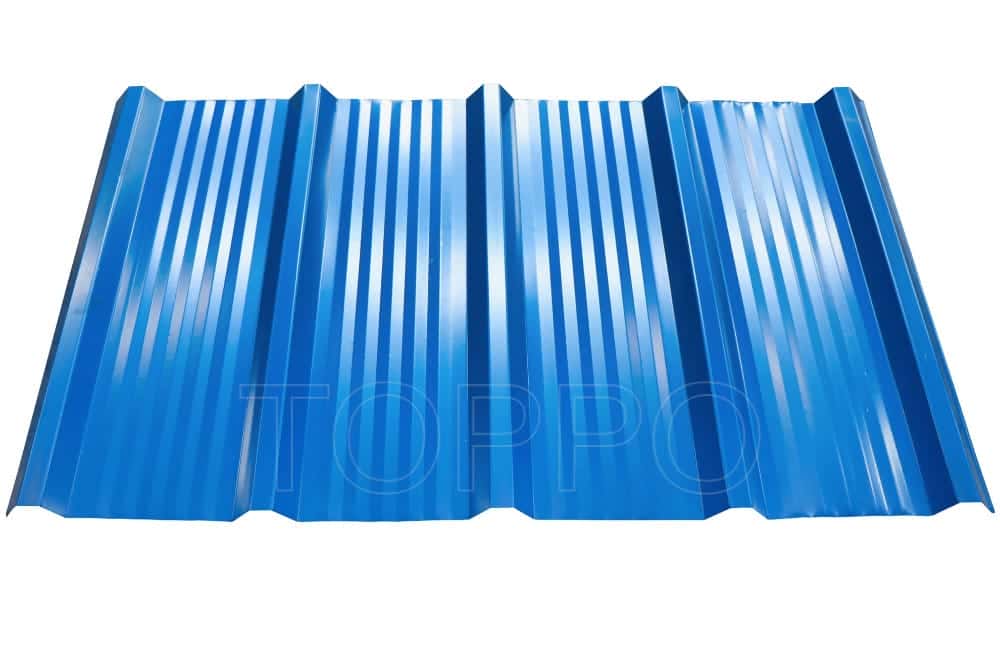

Profile Type: Trapezoidal Panel
Application: Roofing Sheet Production
Forming Material: PPGI, GI, Aluminum, Galvalume
Material Thickness: 0.3–0.8 mm
Coil Width: 1000–1250 mm
Effective Panel Width: 836–1050 mm
Production Speed: 12–15 m/min

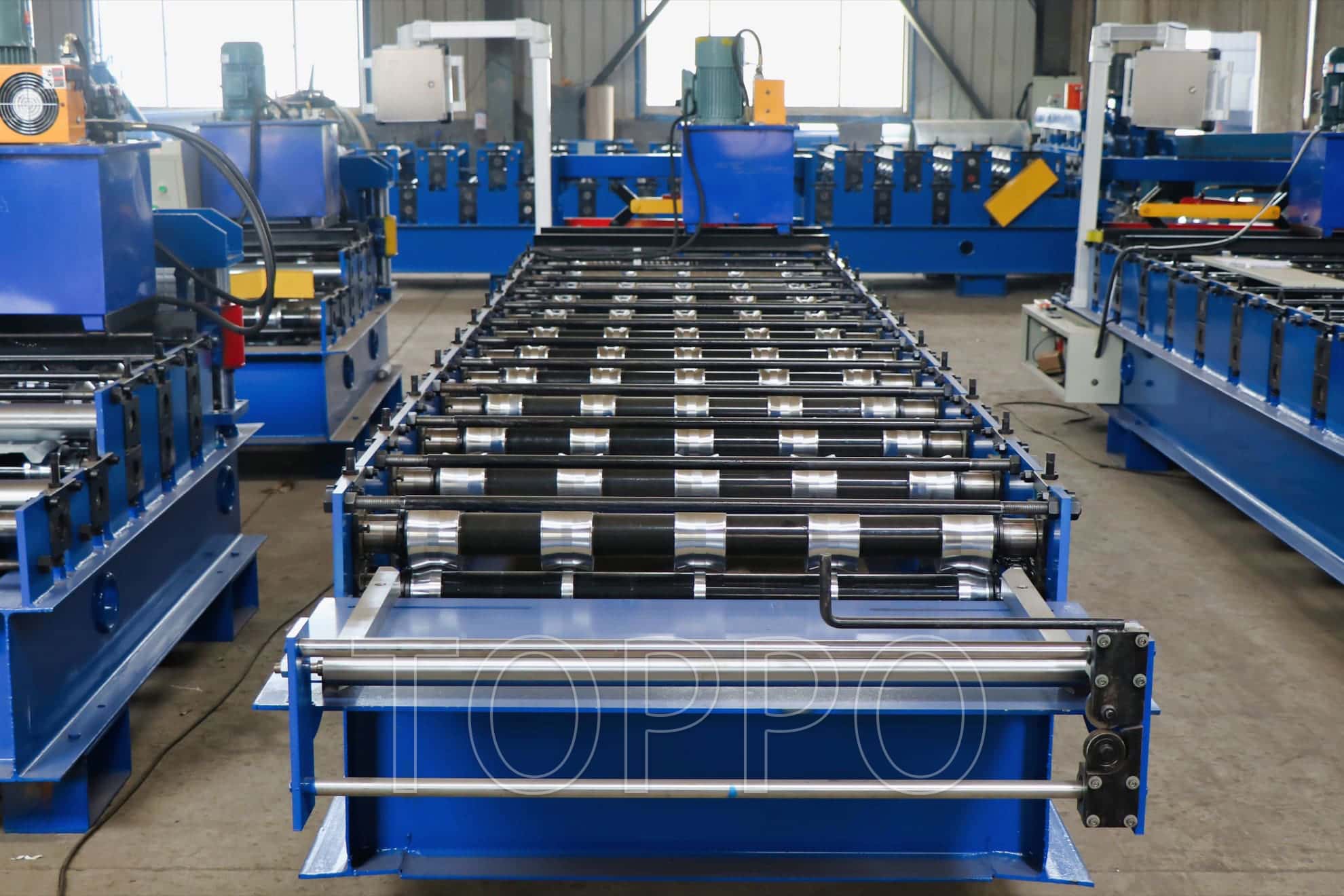

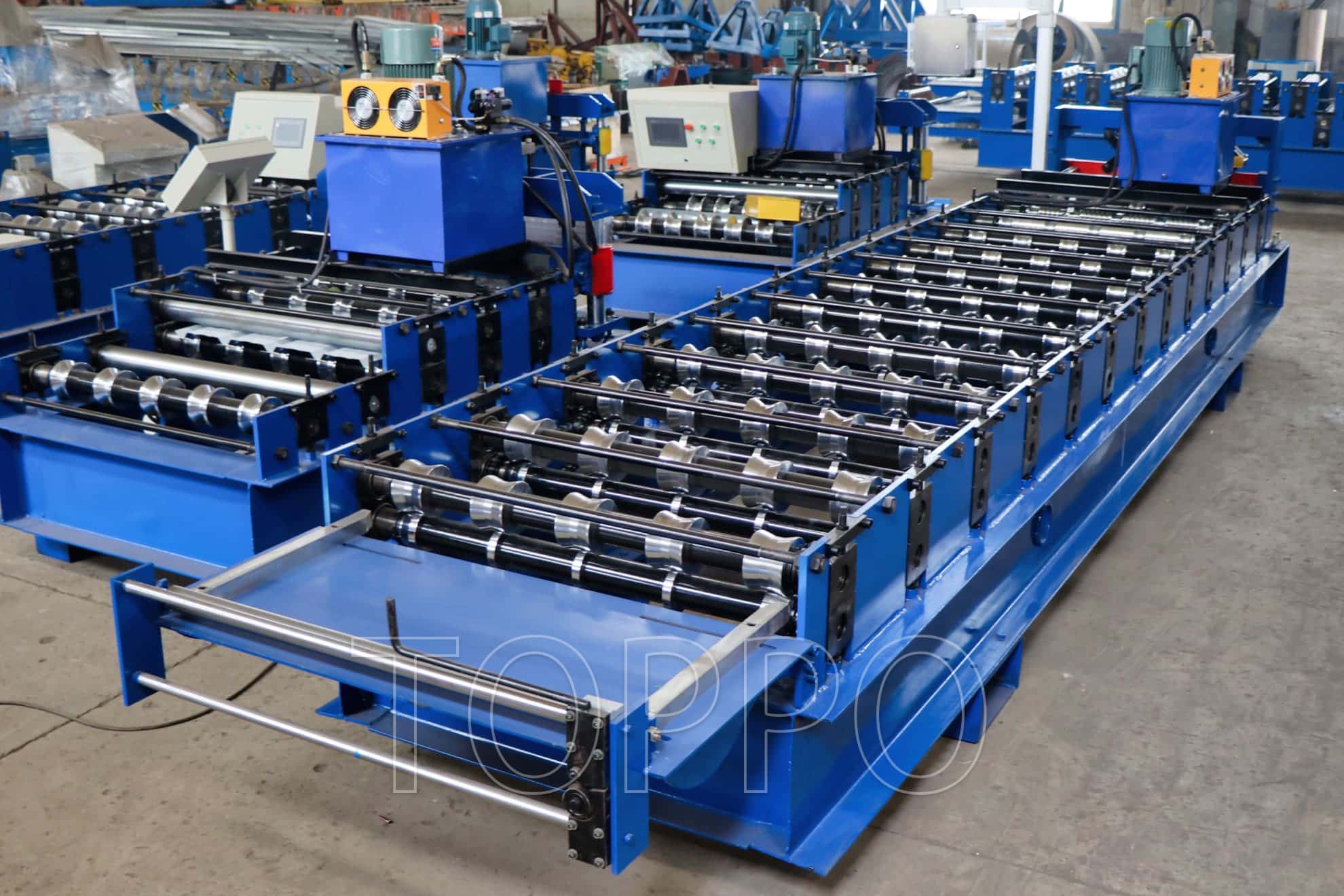

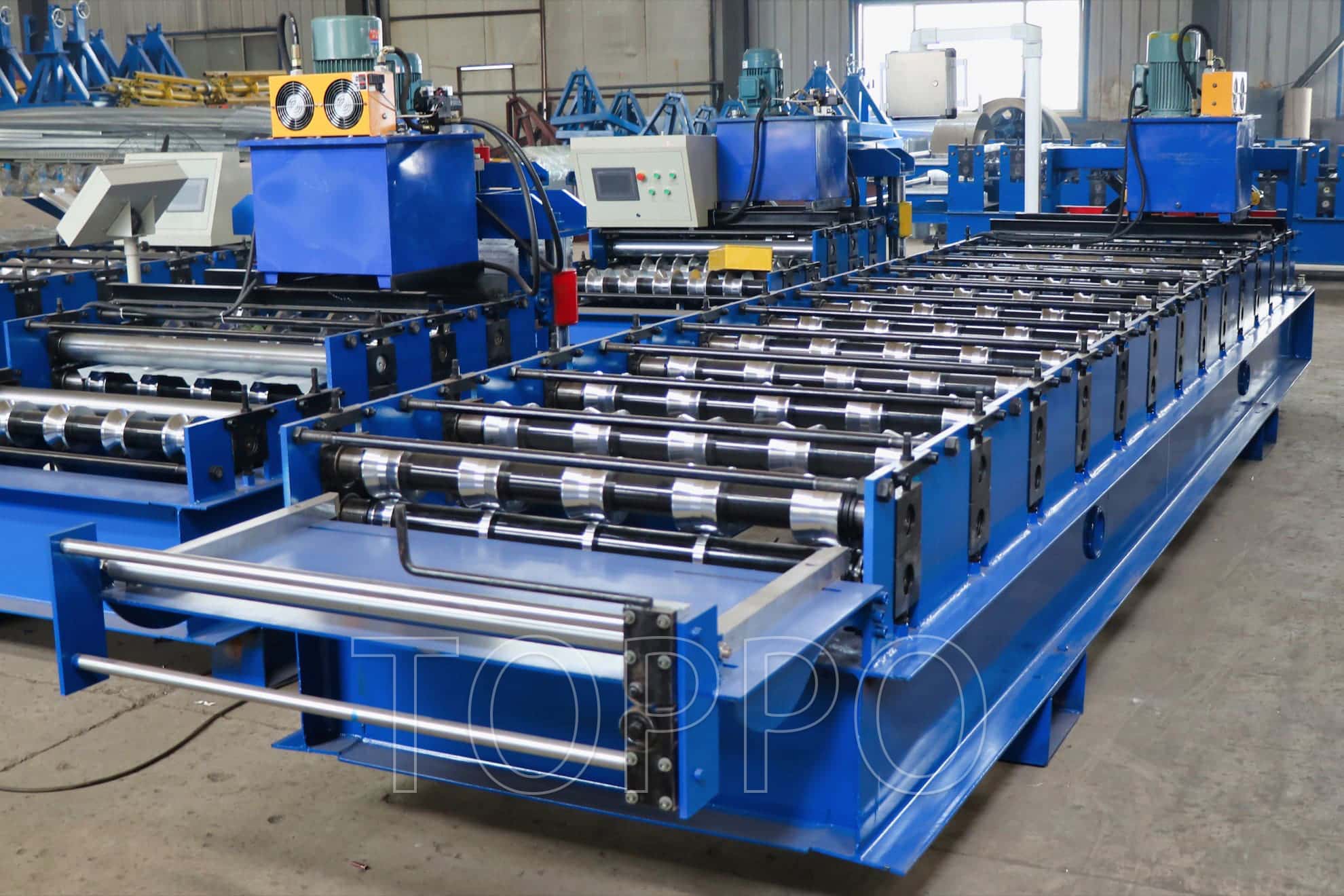

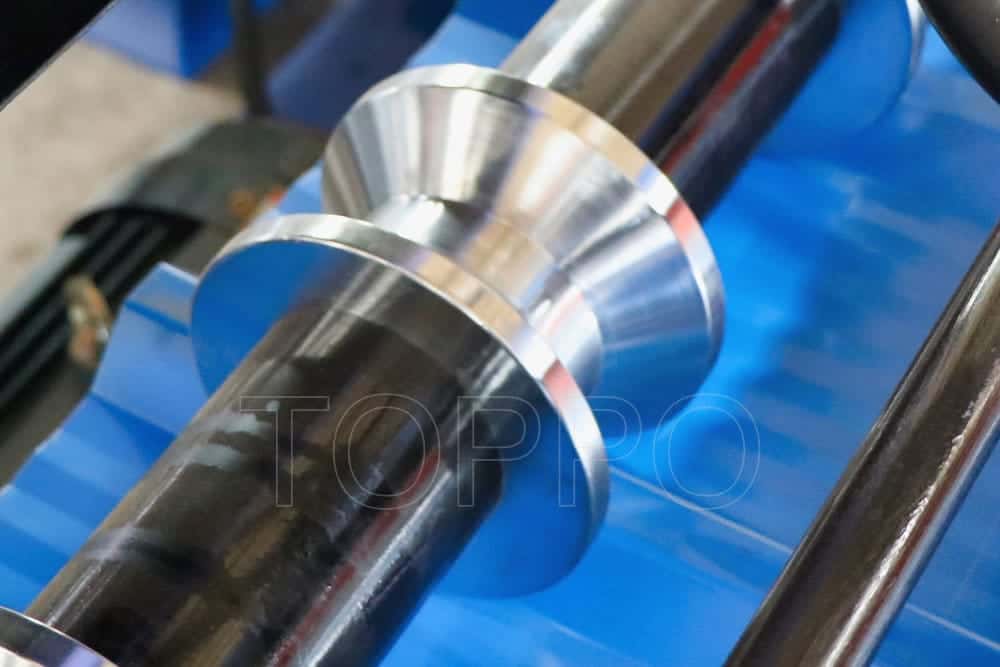

Roller Stations: 18 steps
Roller Shaft Diameter: 75 mm
Roller Material: GCr15 steel with hard chrome coating
Cutting Type: Hydraulic post-cut
Cutting Blade Material: Cr12Mov, quenched
Cutting Accuracy: ±1 mm
Drive System: Chain drive with gear assist
Main Motor Power: 7.5 kW
Hydraulic Station Power: 4 kW
Control System: Siemens/Delta PLC
Touch Screen: HMI panel with intuitive interface
Operation Mode: Fully automatic/manual selectable

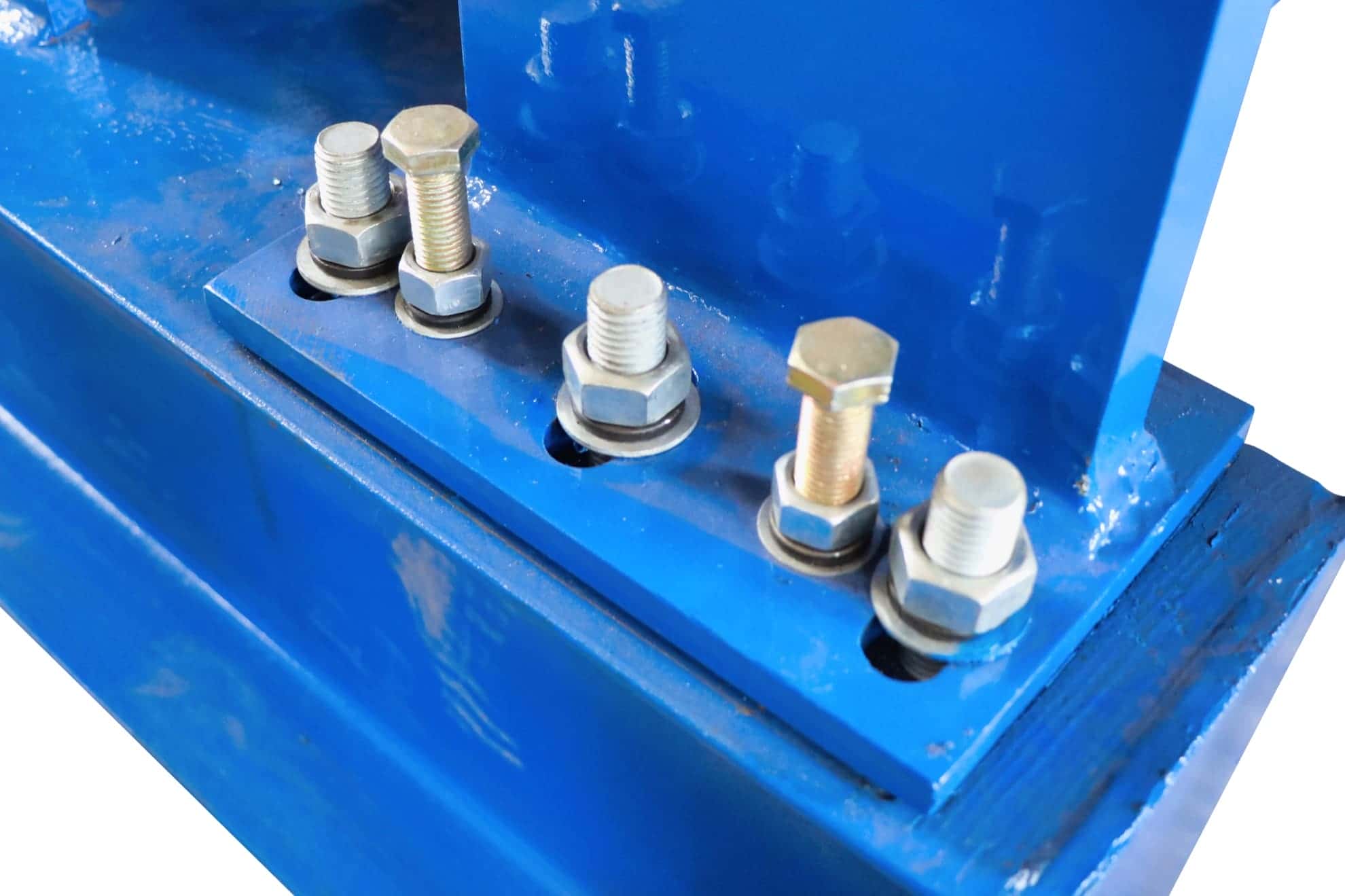

Machine Frame: 300H beam welded base
Side Wall Thickness: 16 mm
Feeding System: Manual adjustable with roller guide
Uncoiler: Optional hydraulic/manual 5T
Output Table: Optional manual/auto stacker
Machine Dimensions: 8500 mm x 1500 mm x 1500 mm
Machine Weight: 6 tons approx.
Noise Level: Below 75 dB
Protective System: Emergency stop + covers
Tooling Lifetime: 8–10 years with regular maintenance
Lubrication: Manual, automatic optional
Power Supply: 380V/50Hz/3Phase (customizable)
Voltage Customization: Available for other regions
Working Temperature: -10°C to +45°C
Color: Blue with red/yellow accents
Packaging: Plastic film + steel base
Lead Time: 25–30 working days
Certifications: CE, ISO
Warranty: 12 months
After-Sales: Video support, spare parts, engineer available
OEM/ODM: Supported
Operator Required: 1–2 people
Exported To: Southeast Asia, Middle East, Africa, South America

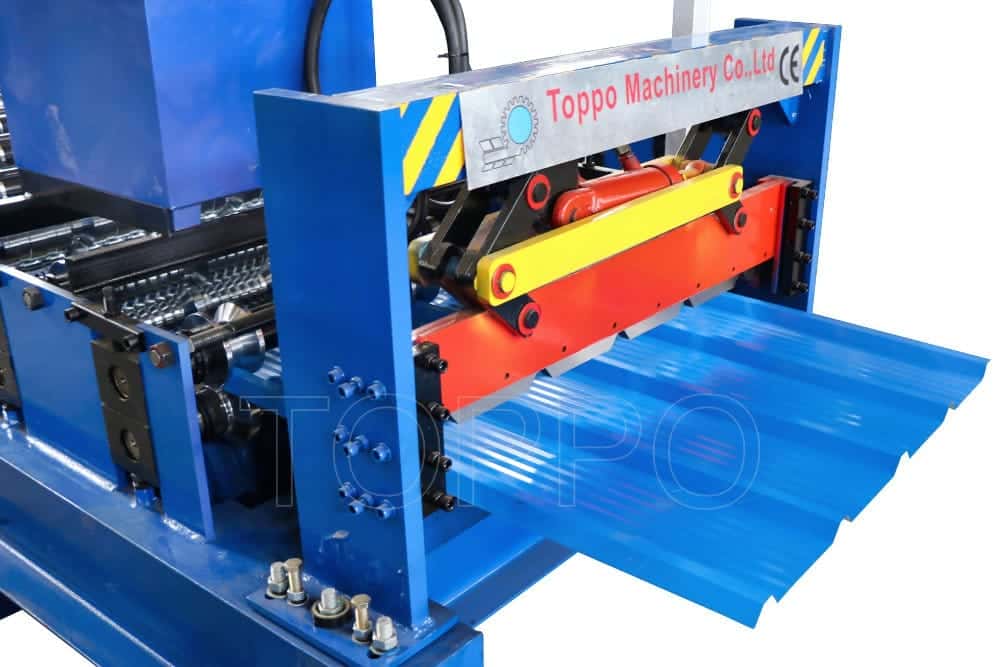

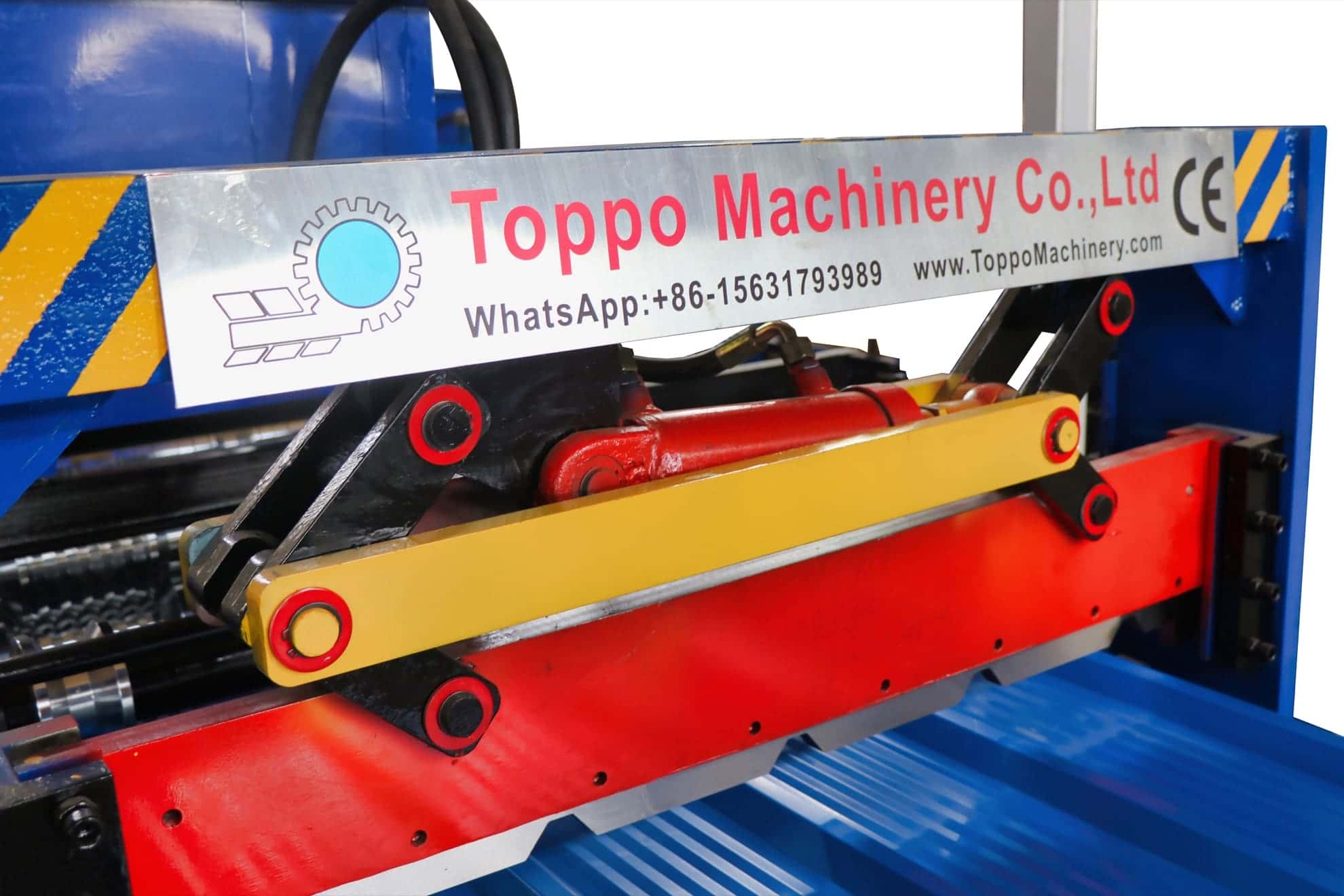

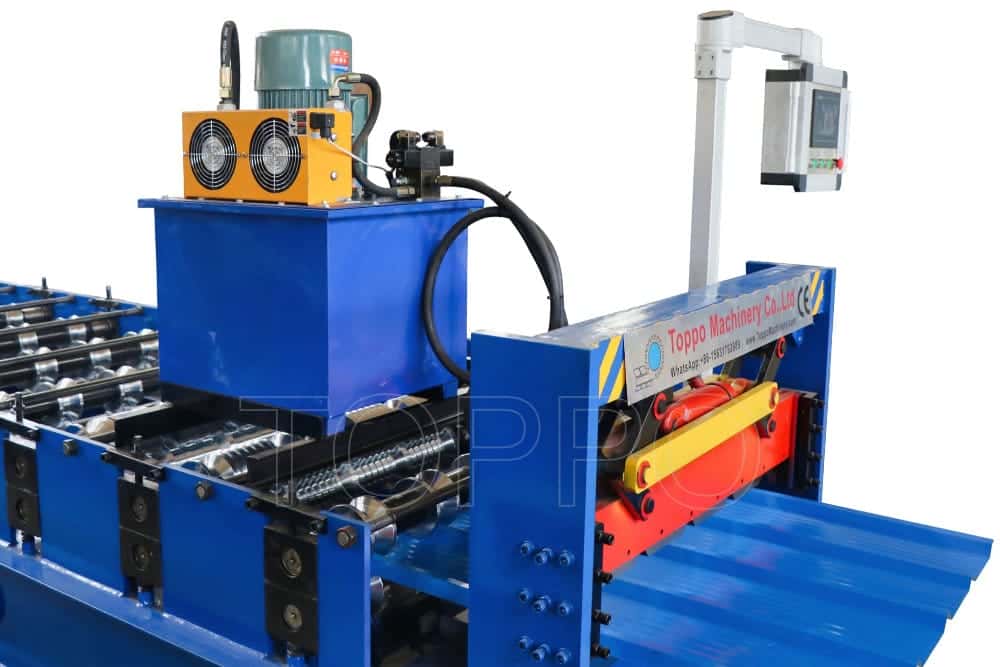

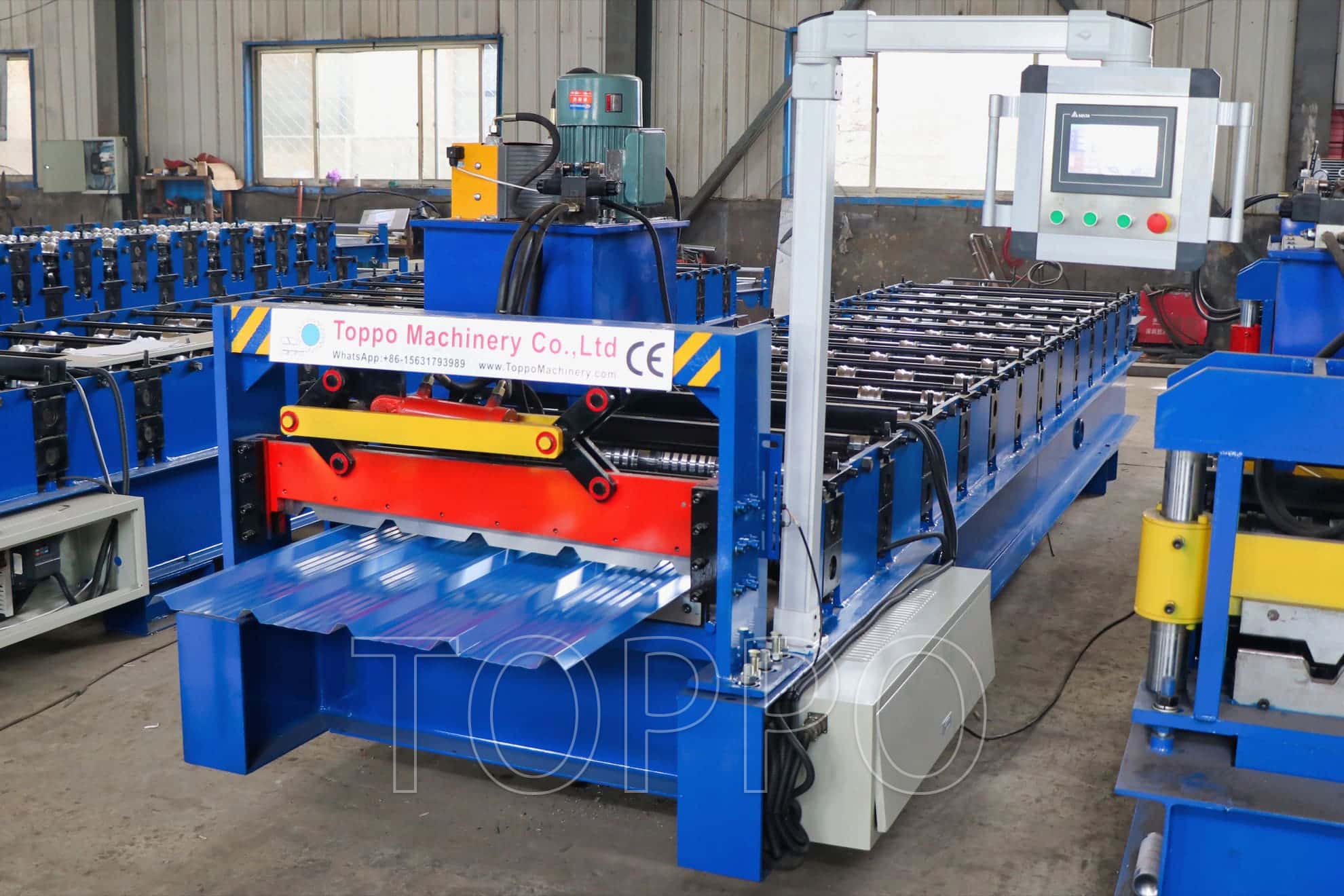

Unlike standard panel roll formers, this machine integrates a highly visible red/yellow blade guard and an upgraded hydraulic system with cooling fan to ensure consistent cutting pressure during high-speed operation. Its intuitive PLC system reduces downtime and operator training time, making it ideal for both startups and established factories.
