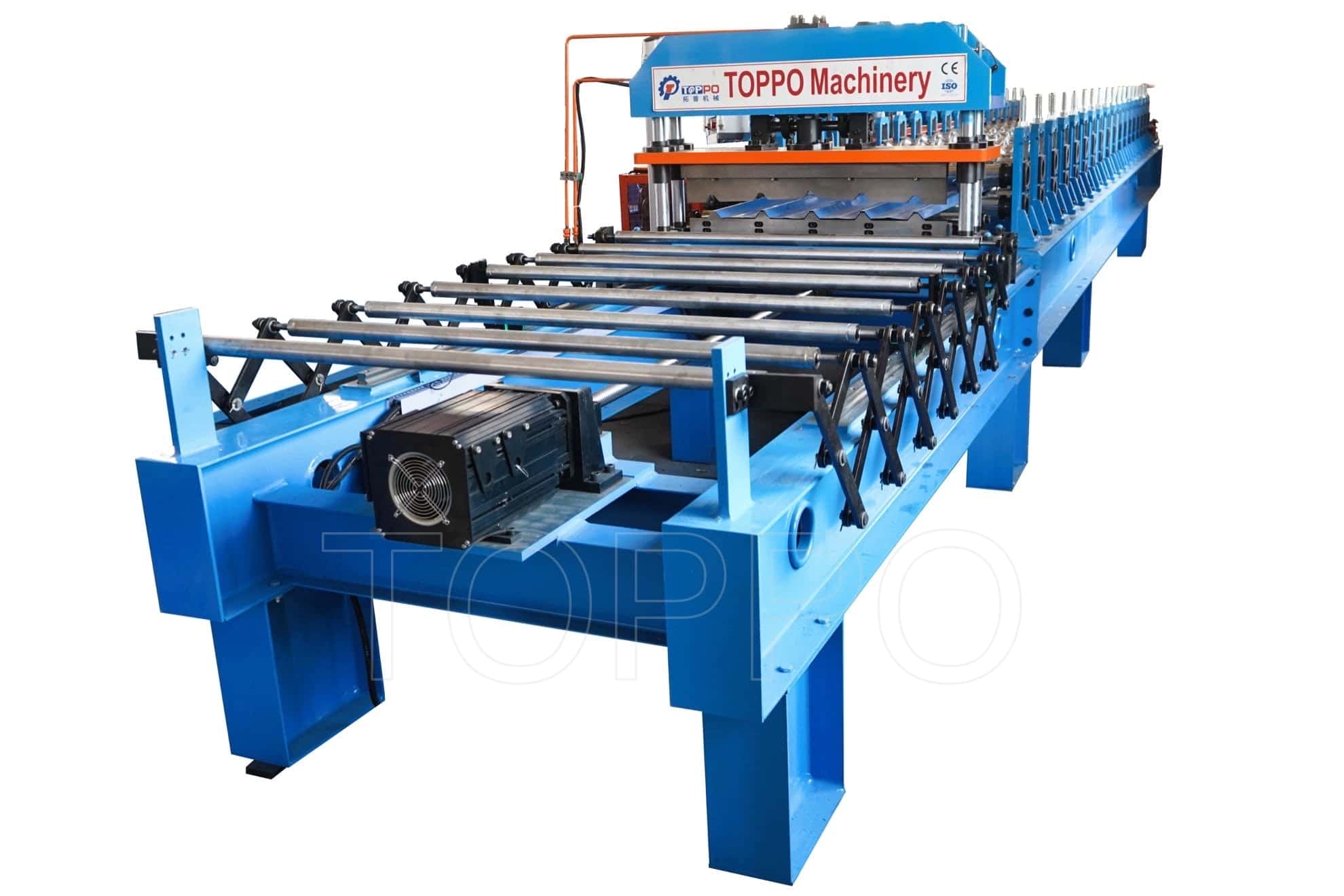

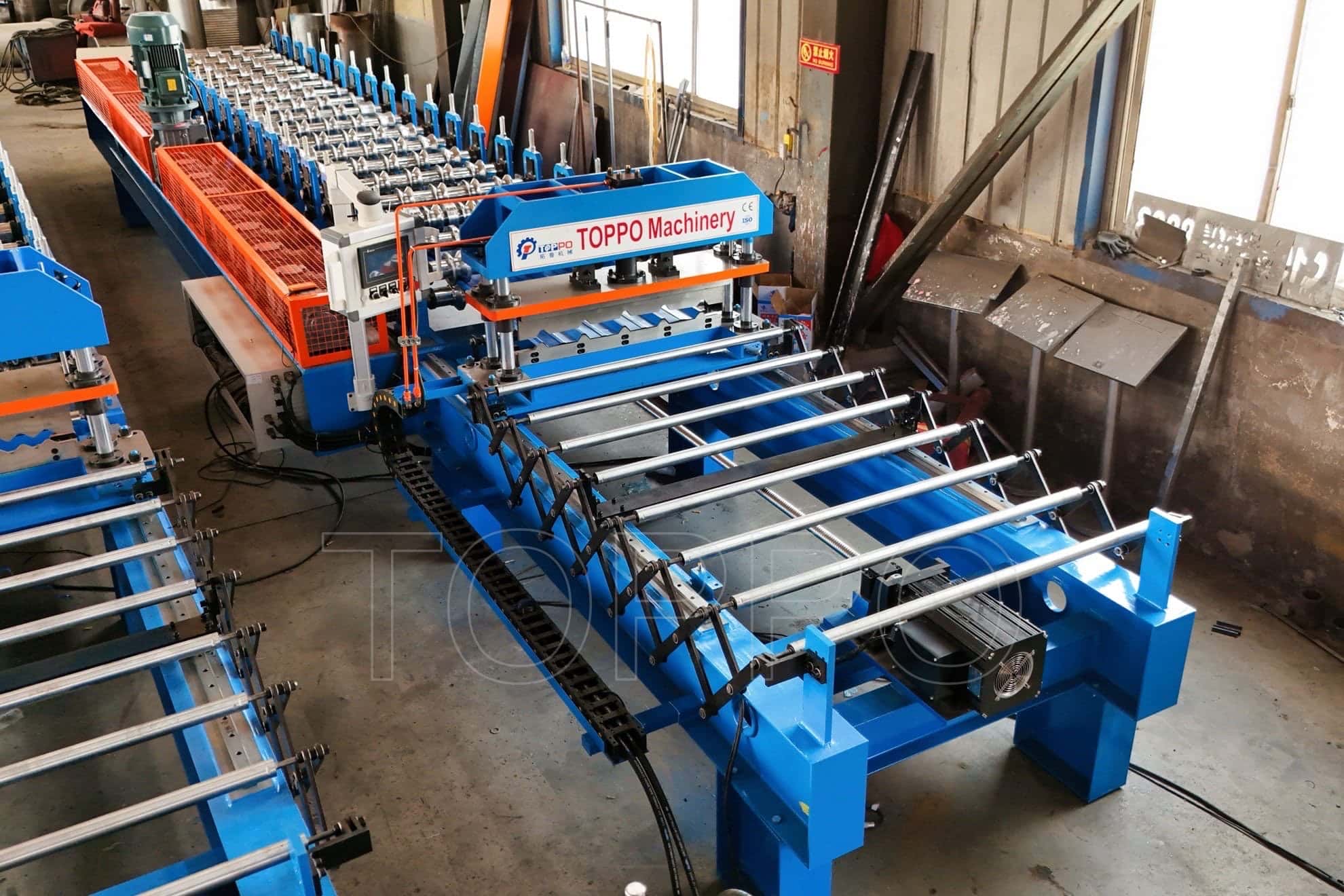

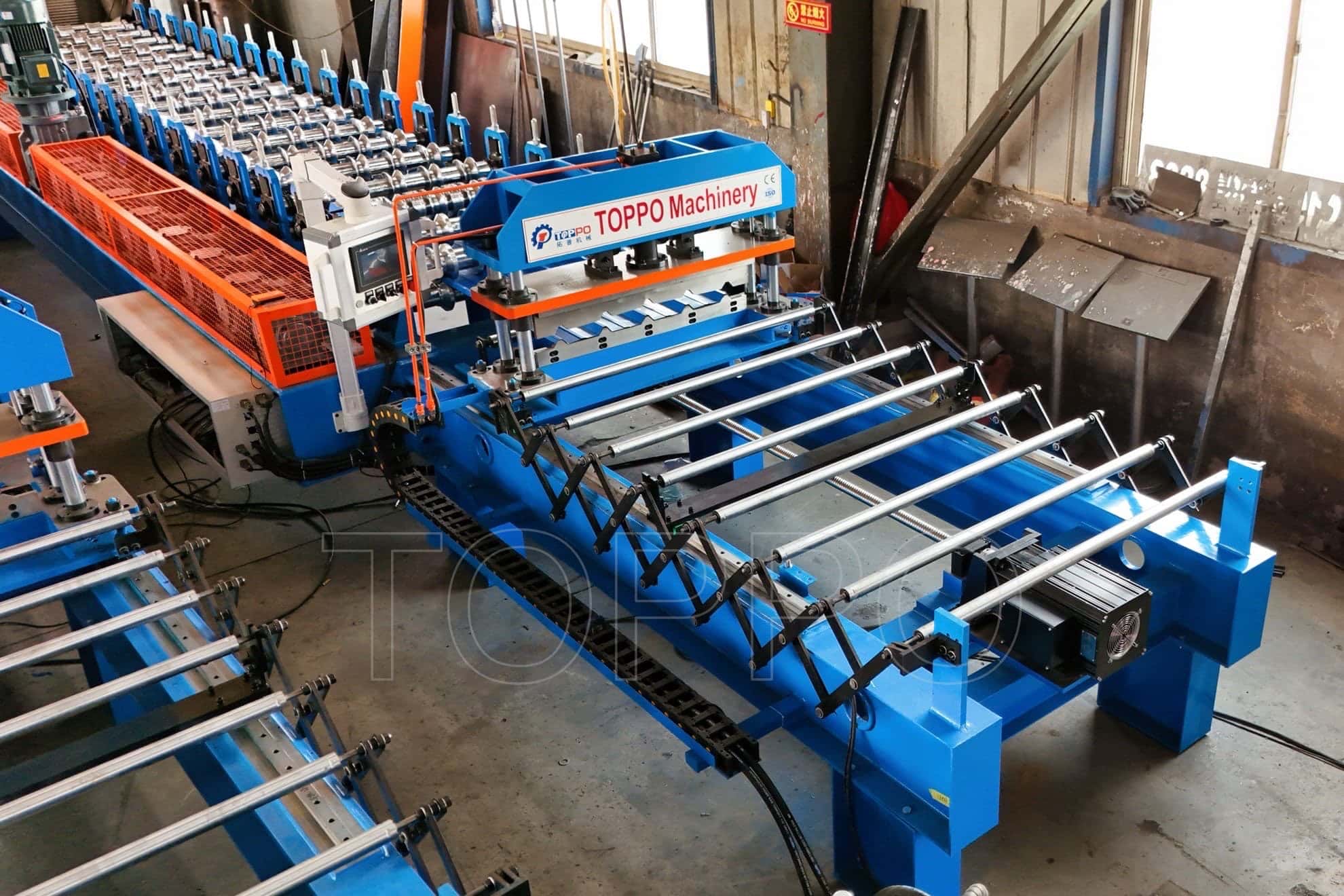

This advanced model is tailored for high-output metal roofing production. It features an integrated roll forming line with post-shear hydraulic cutter and a fully motorized stacker system for automatic material collection. It is widely used in metal construction, pre-fab buildings, and export production facilities.
Profile Shape: Trapezoidal Panel
Raw Materials: Galvanized Steel, PPGI, Aluminum
Material Thickness: 0.3–0.8 mm
Coil Width: 1000–1250 mm
Effective Panel Width: 836–1050 mm
Production Speed: 12–15 meters/min
Roller Stations: 18–20

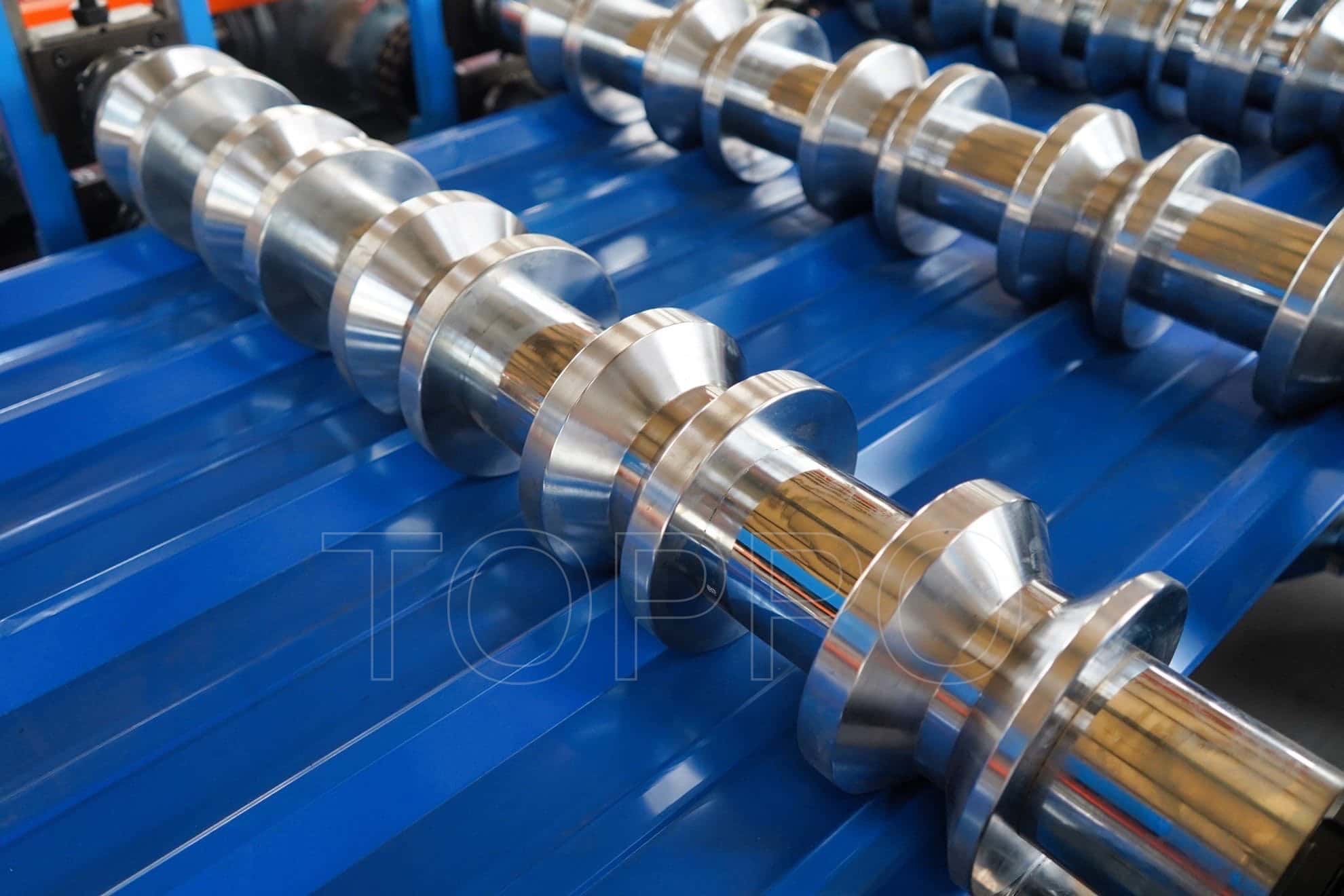

Roller Material: GCr15 with hard chrome plating
Shaft Diameter: 75 mm
Main Frame: 300H Steel Beam Welded

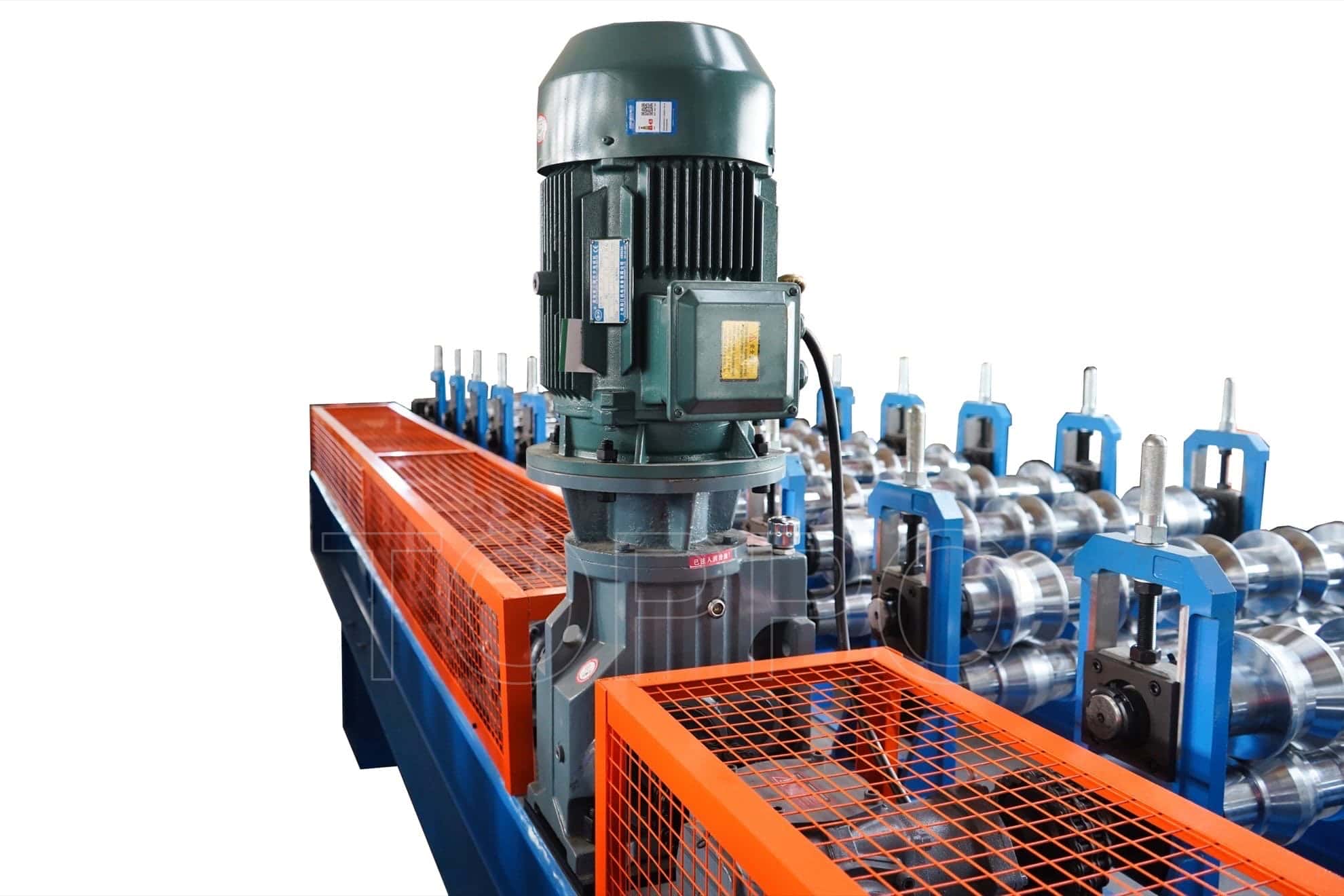

Drive Mode: Chain or gearbox transmission
Main Motor Power: 7.5 kW
Hydraulic Power: 4.0 kW

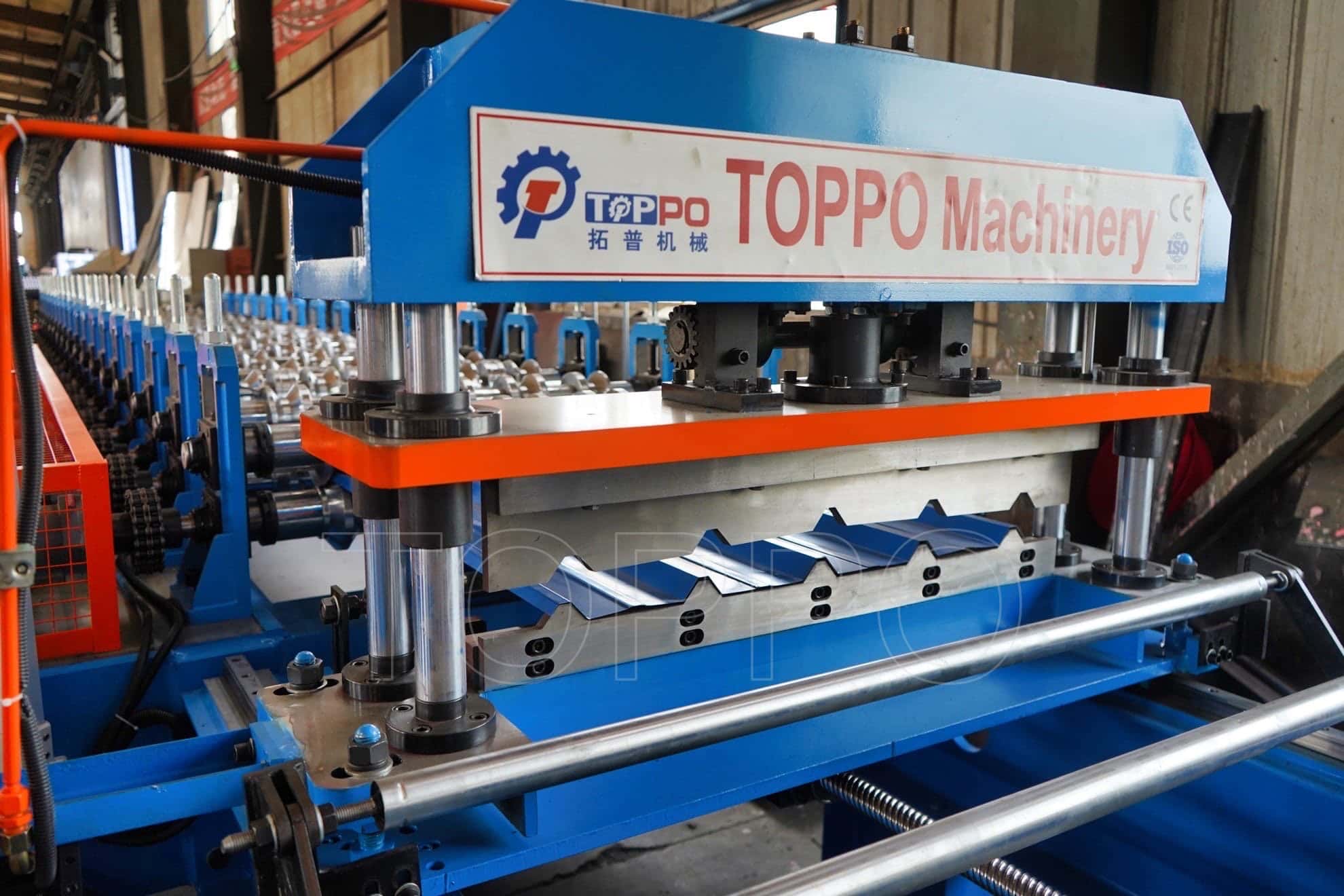

Cutting Method: Hydraulic post-shear
Blade Material: Cr12Mov, quenched and precision machined
Cutting Accuracy: ±1 mm
Control System: PLC (Siemens or Delta)
Operation Panel: Touchscreen HMI
Working Voltage: 380V/50Hz/3Phase (customized available)
Side Wall Thickness: 16 mm
Safety Devices: Emergency stop buttons, covers

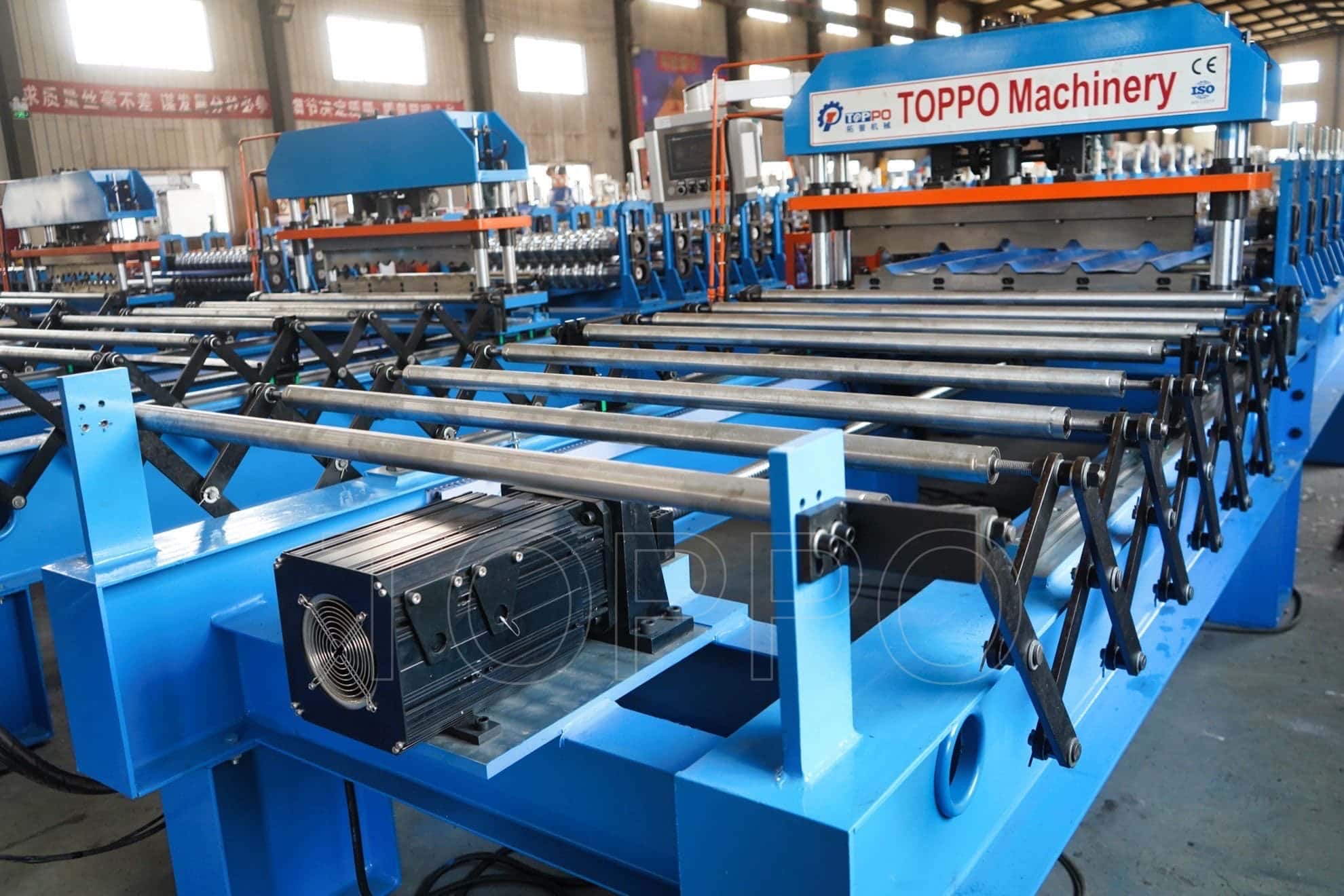

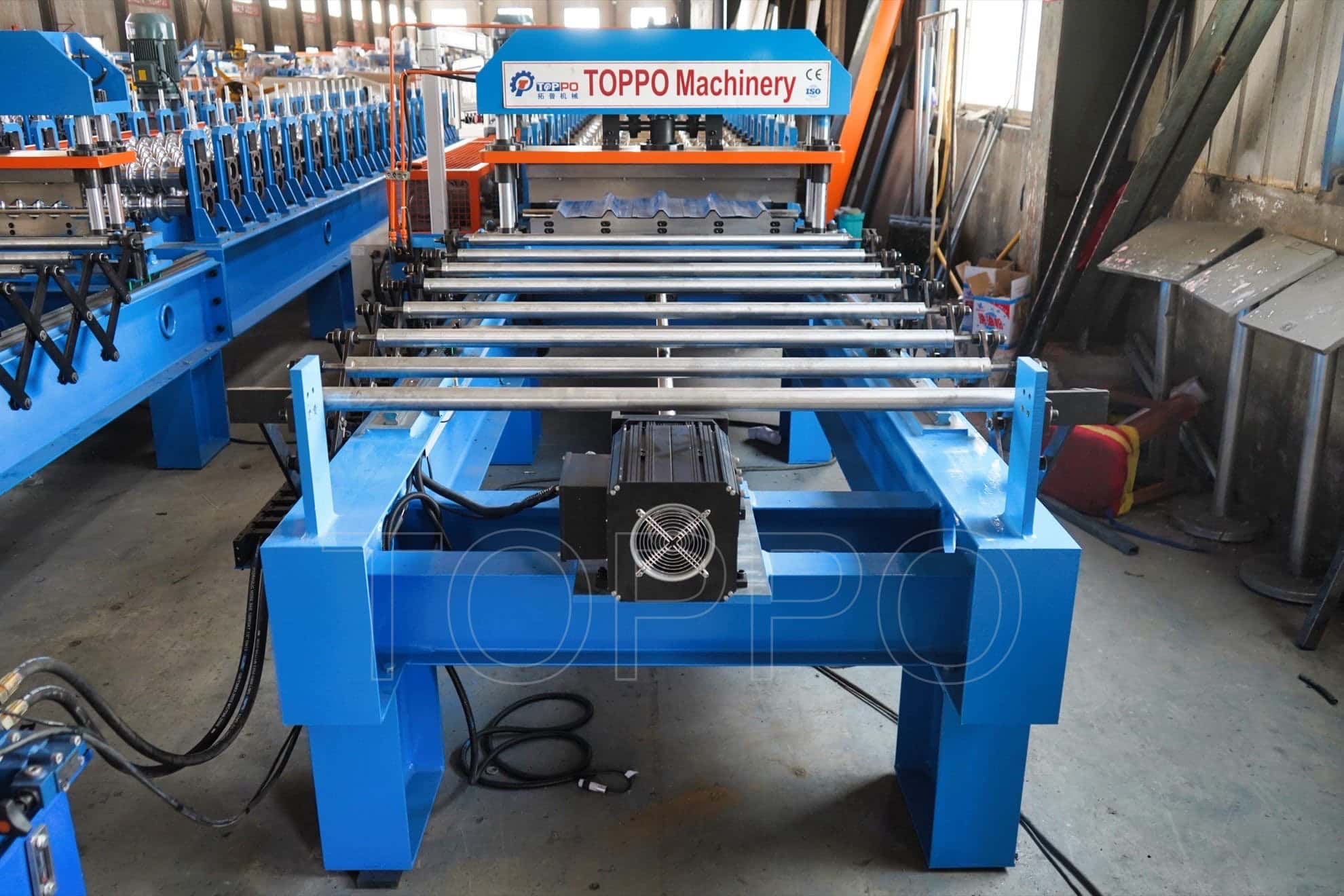

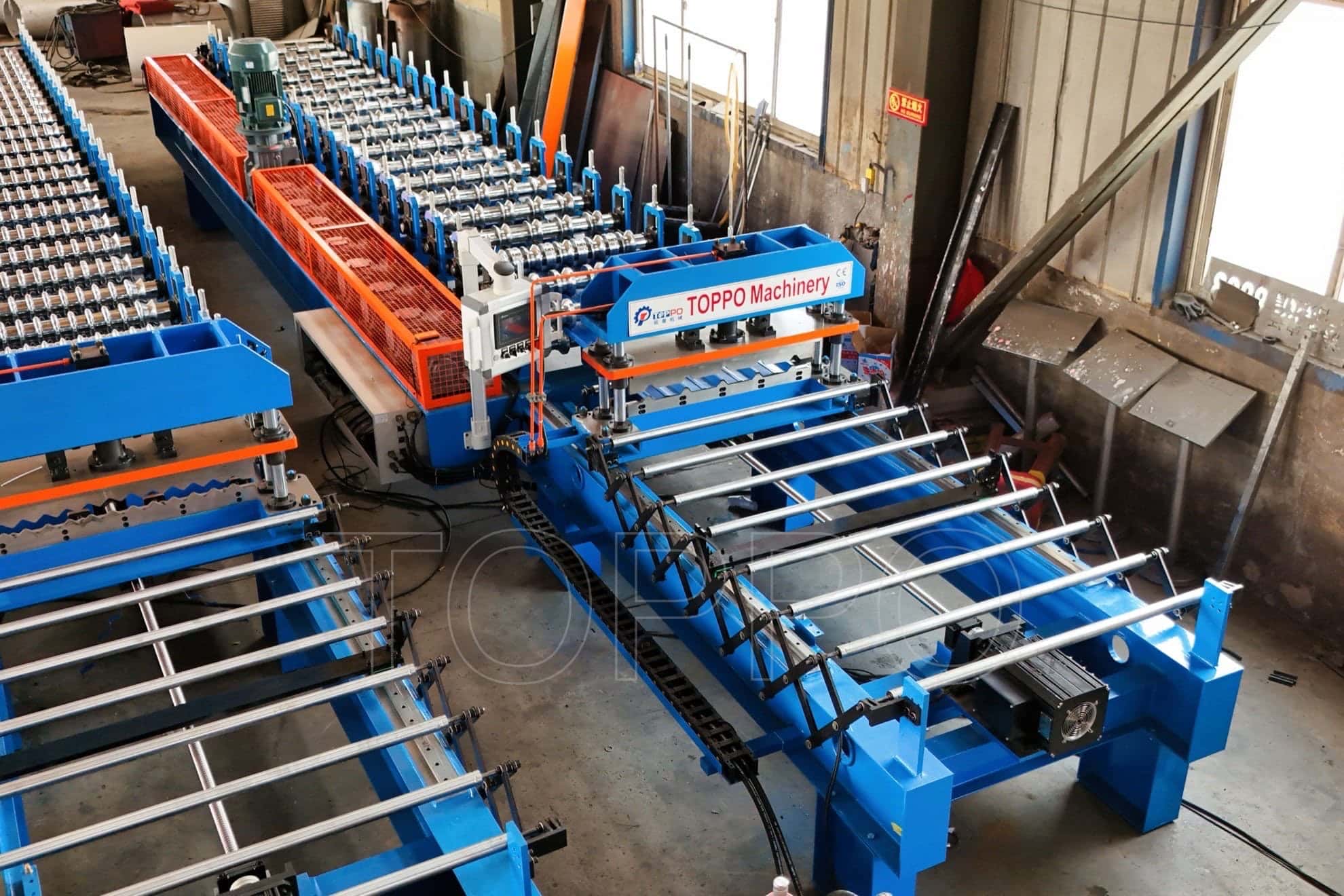

Automatic Stacker: Electric motor-driven, programmable
Stacker Length: Up to 3 meters
Stacker Motor Power: 1.5 kW
Uncoiler: Optional hydraulic/manual 5T

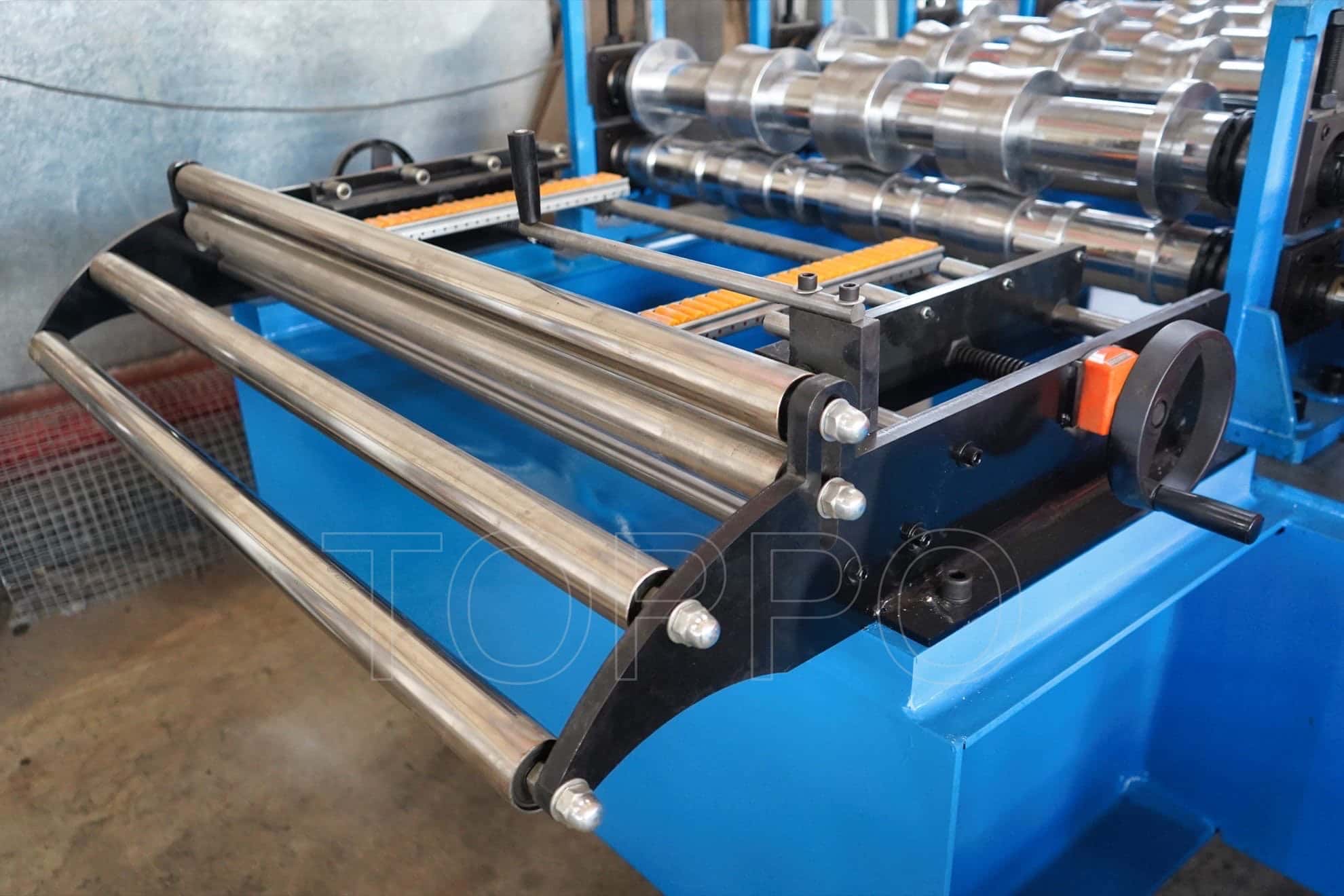

Feeding Guide: Manual with alignment rollers

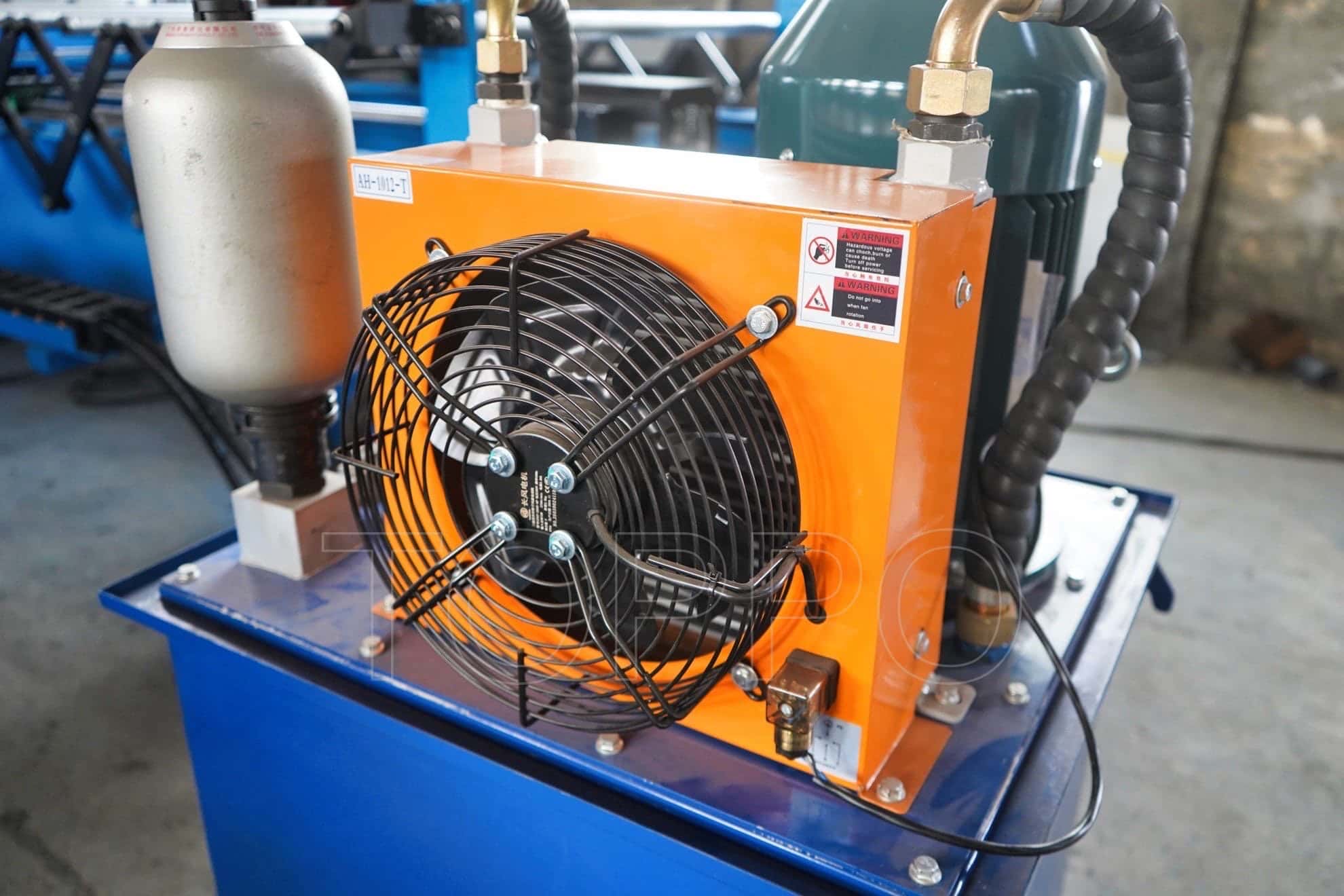

Cooling System: Optional for hydraulic oil
Noise Level: ≤75 dB
Machine Dimensions: Approx. 9.5m × 1.5m × 1.6m
Machine Weight: Approx. 6.5 tons
Color: Industrial blue (customizable)
Lubrication: Manual or optional auto-lube
Tooling Life: 8–10 years
Maintenance: Easy access, minimal servicing
Installation: On-site technician optional
Warranty: 12 months
After-sales Service: Remote support, spare parts supply
Packaging: Film wrapped and steel base fixed
Delivery Time: 25–30 days after deposit
Certifications: CE, ISO9001
Equipped with an electric-powered automatic stacker, this machine reduces labor intensity and significantly boosts efficiency. The entire line is PLC-controlled, allowing precise control of panel lengths, batch production, and fault alarms. It’s an ideal solution for businesses targeting industrial-scale panel production with high levels of automation.
