This high-performance glazed tile roll forming machine by TOPPO Machinery is engineered for producing decorative and durable metal roofing tiles. Ideal for construction and residential roofing projects.
Automatic control with PLC system
Hydraulic cutting for high precision
Forming speed: 8-15m/min
Material thickness: 0.3–0.6 mm
Material width: 1000–1250 mm
Roller stations: 13–18
Roller material: 45# steel with hard chrome plating
Main frame: 300–400 H-beam steel welded
Machine base: 16–20 mm steel plate
Drive system: Chain drive / gearbox drive
Control system: PLC from Delta/Siemens
Cutting system: Hydraulic cutting
Cutter material: Cr12 with heat treatment
Voltage: 380V, 50Hz, 3Phase (customizable)
Power: 5.5–7.5 kW
Color: Customizable
Machine weight: 4–6 tons
Dimension: About 8500mm x 1500mm x 1300mm
Application: Roofing sheet production
Surface treatment: Painted & rust-proof
Supporting decoiler: Manual or hydraulic
Output length tolerance: ±2mm
Maintenance: Low maintenance required
Noise level: ≤75dB
Safety protection: Emergency stop and safety guards
Production line: Full automatic

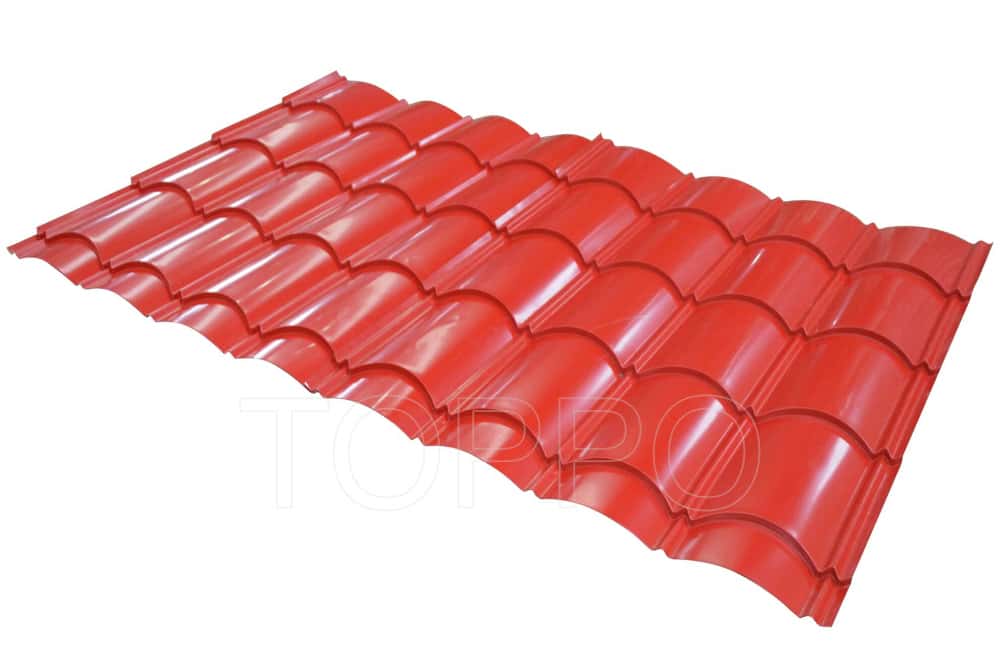

Tile profile: Glazed / step tile
Forming roller shaft: Solid shaft 70mm diameter
Back table: 3-meter passive table
Material: PPGI, PPGL, Galvanized steel
Cooling system: Optional air cooling
Language: Multi-language touch screen
Lubrication: Auto oiling system
Profile type: Corrugated / tile / step
Roll forming accuracy: High precision
Certification: ISO & CE
Delivery time: 30 days after deposit
Packaging: Nude & waterproof film
Installation: Engineer overseas service available
This machine provides a high degree of automation, excellent forming quality, and durability for long-term operation in industrial settings.
