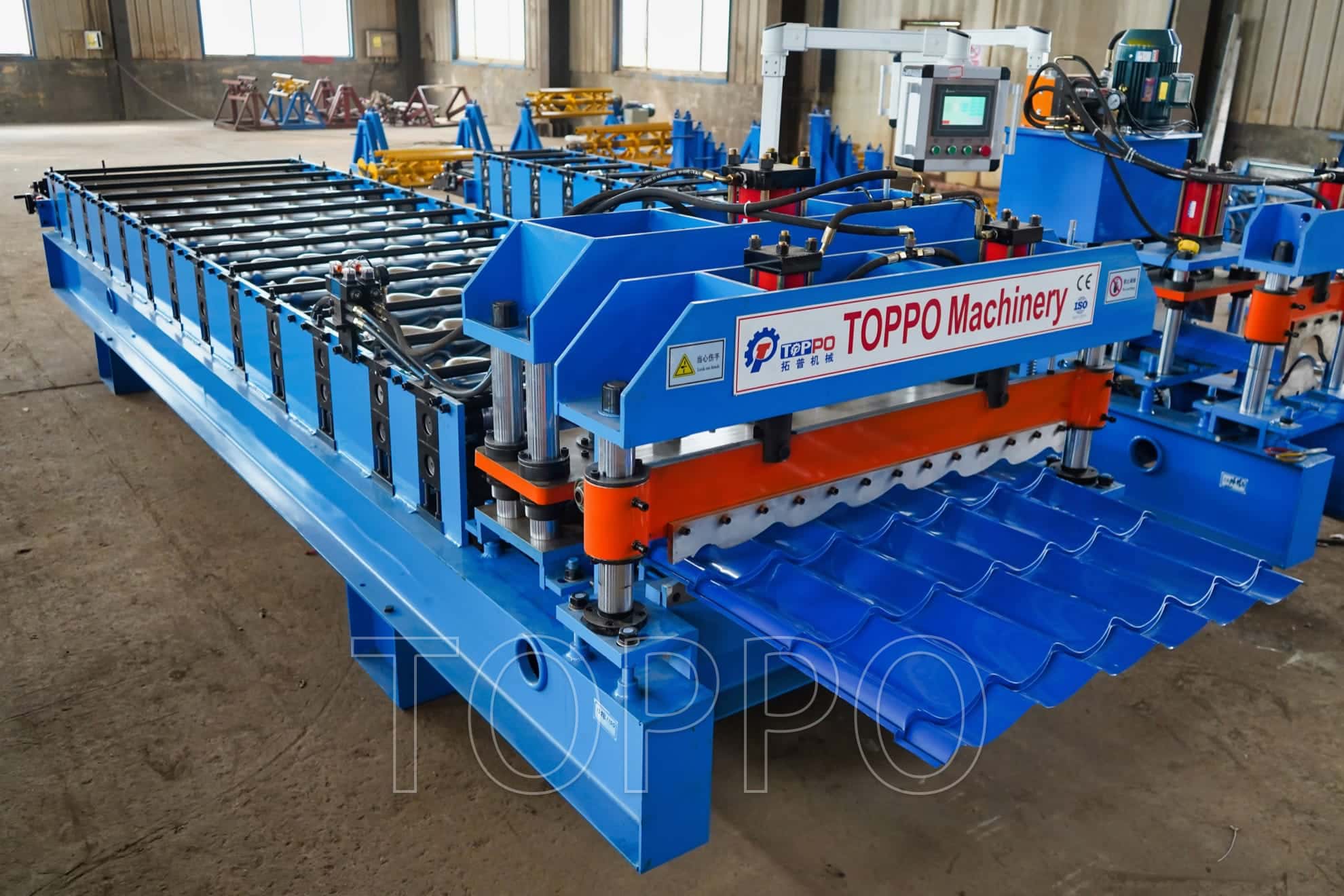

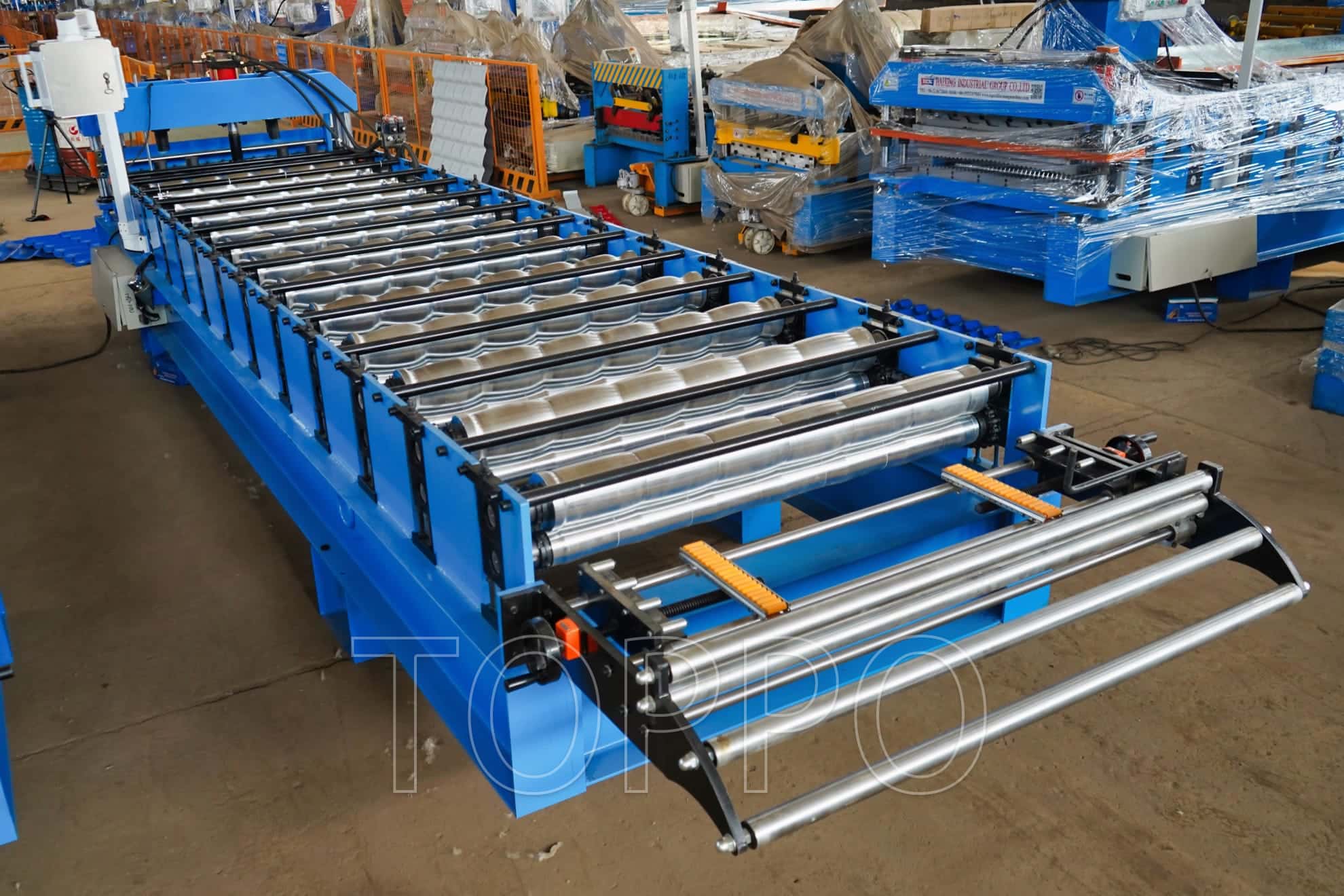

Toppo Machinery Glazed Tile Roll Forming Machine is specially designed for producing elegant and durable glazed roof tiles with high precision and efficiency.

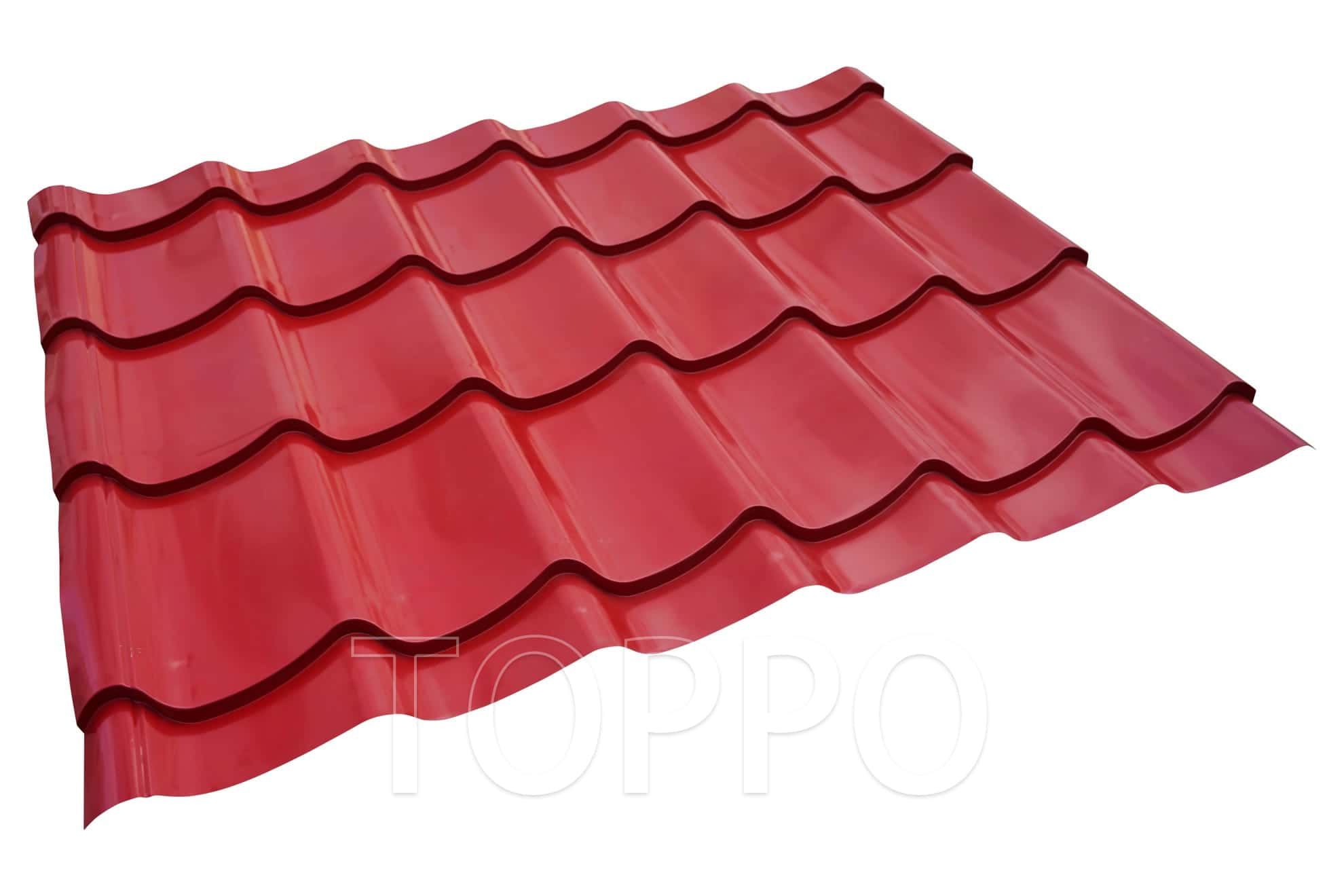

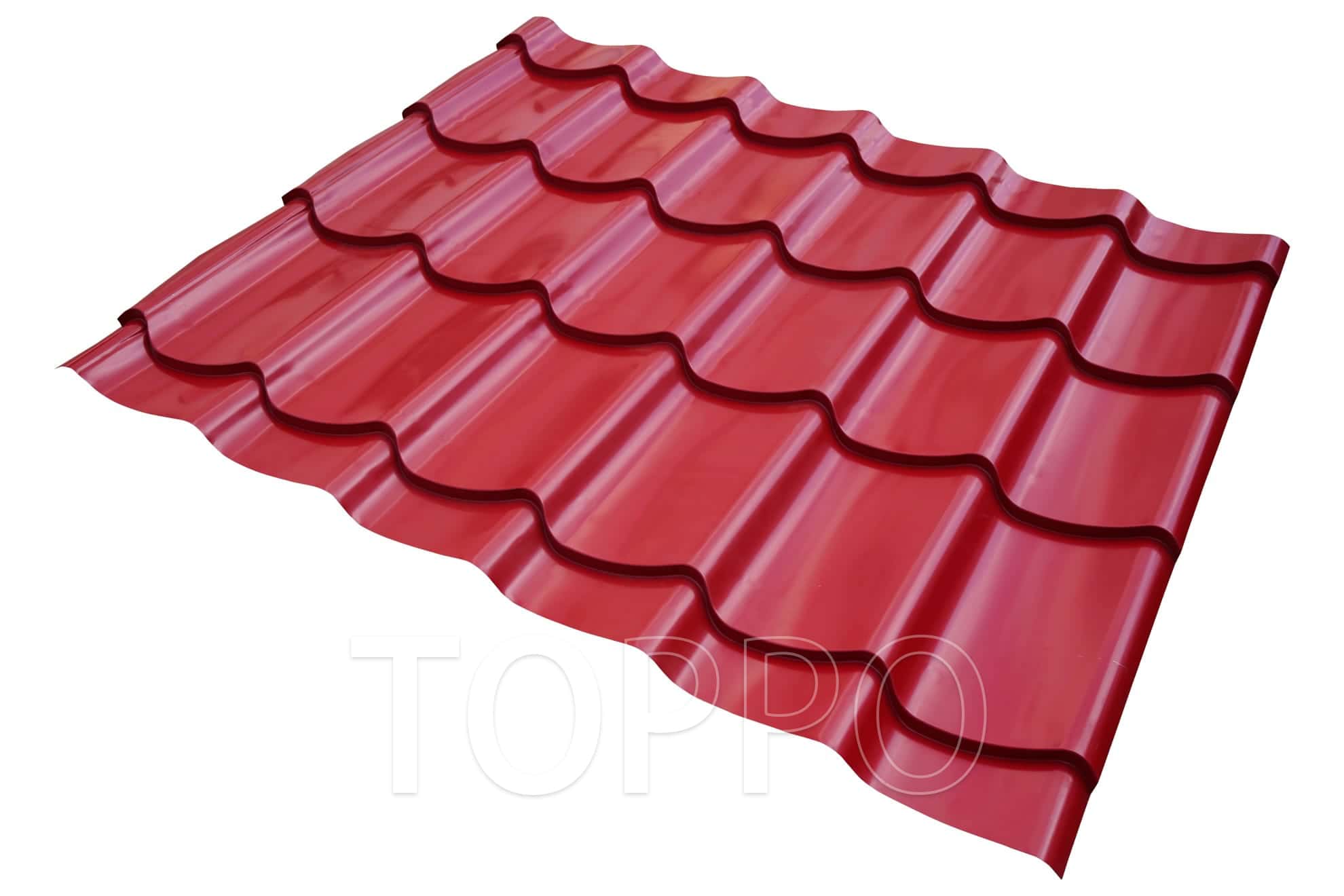

The Glazed Tile Roll Forming Machine is ideal for producing beautiful metal tiles used in roofing applications. Equipped with advanced PLC control system and hydraulic cutting mechanism, it ensures consistent shaping and long service life. Widely used in residential, commercial, and industrial buildings.
**Features:**
- Precision roller design for accurate tile profiles
- Fully automatic PLC control system
- Durable hydraulic cutting system
- Easy operation and low maintenance
- Customizable tile design and dimensions
**Technical Specifications:**
- Material: Color steel, galvanized steel
- Thickness: 0.3–0.6 mm
- Roller stations: 16–25 (customizable)
- Main motor power: 4–7.5 kW
- Hydraulic cutting power: 4 kW
- Production speed: 2–5 m/min
- Control system: PLC with touch screen
- Voltage: 380V/50Hz/3Phase (customizable)
