Product Description

This economic corrugated roll forming machine is tailored for reliable, high-efficiency panel production with a simplified digital control interface. It ensures accurate forming of roofing and siding panels using standard industrial materials.

Technical Specifications & Features

• Model: Economic Corrugated Panel Forming Machine

• Material: Color steel, galvanized steel, aluminum

• Material Thickness: 0.3–0.8 mm

• Feeding Width: 1220 mm

• Effective Panel Width: 1000 mm

• Forming Steps: 18–20

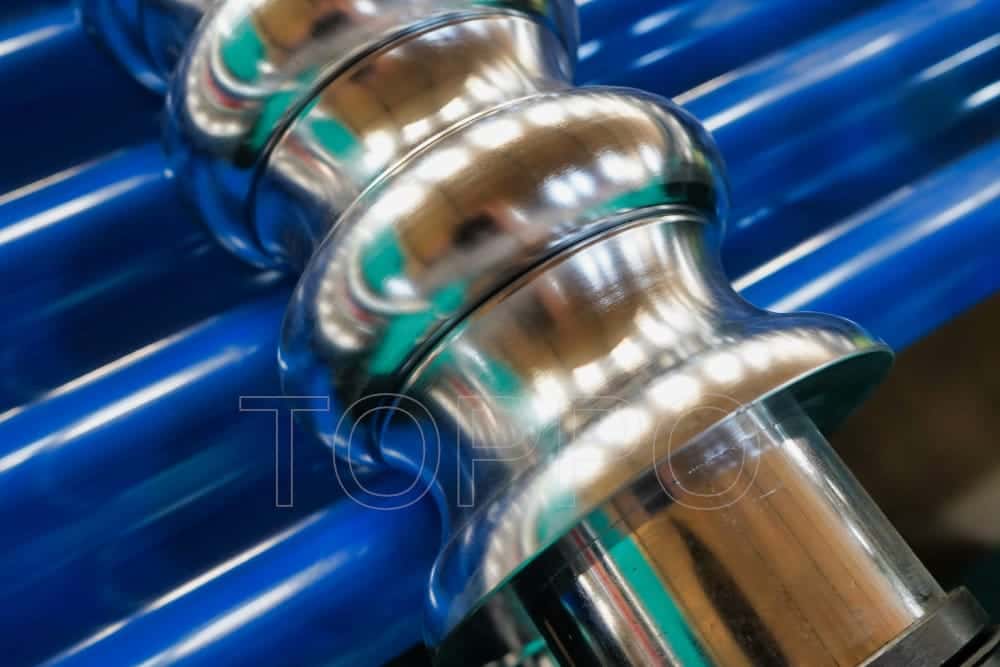

• Roller Material: 45# steel with chrome coating

• Roller Shaft: 70 mm

• Drive Type: Chain drive

• Main Motor: 4 kW

• Hydraulic Station: 3 kW

• Cutting Method: Hydraulic cutting with Cr12 blade

• Control System: Button panel + touch interface

• Voltage: 380V, 50Hz, 3Phase

• Production Speed: 8–12 m/min

• Cutting Accuracy: ±1.5 mm

• Machine Frame: H-beam welded base

• Cooling: Natural air cooling

• Overall Dimension: 8m × 1.4m × 1.5m

• Machine Weight: Around 4.8 tons

• Color: Customizable on request

• Safety: Emergency stop switch + limit protection

• Blade Hardness: HRC 58–60

• Warranty: 12 months

• Certification: CE, ISO9001

• Operator Requirement: 1 person

• Packaging: Plastic film + steel base frame

• Shipping: 20ft container

• Support: Remote installation assistance, spare parts, manuals

Application Scenarios

• Start-up roofing panel production lines

• Construction material factories

• Regional metal product suppliers

This model offers a cost-efficient production solution for customers looking for reliability and operational simplicity in their roofing sheet forming processes.
