Product Description

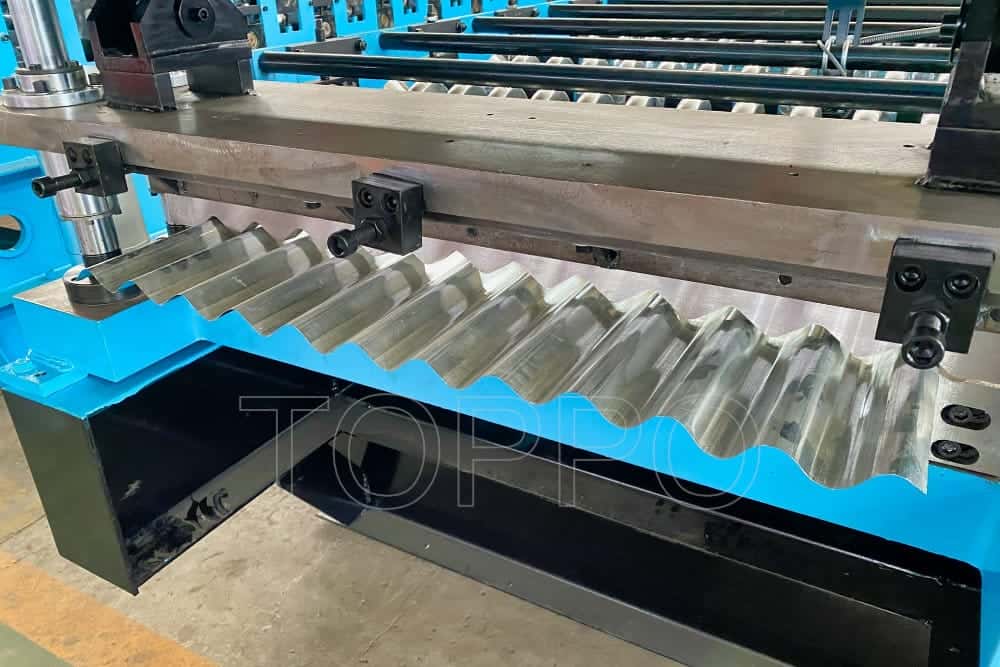

This compact chain-driven corrugated roll forming machine is built for small-to-medium-scale production of steel roofing and siding panels. With an integrated hydraulic cutting system and robust H-beam base, it delivers precision forming and long-term durability.

Technical Specifications & Features

• Machine Type: Chain Drive Corrugated Roll Forming Machine

• Suitable Materials: Galvanized steel, PPGI, aluminum

• Material Thickness: 0.3–0.8 mm

• Input Coil Width: 1220 mm

• Output Panel Width: 1000 mm

• Roller Stations: 16–20 steps

• Roller Shaft Diameter: 70 mm

• Roller Material: 45# steel with chrome treatment

• Transmission System: Chain drive

• Main Motor: 4 kW

• Hydraulic Power: 3 kW

• Cutting Blade: Cr12Mov, quenched and precision-ground

• Cutting Type: Post-cut hydraulic

• Production Speed: 8–12 m/min

• Cutting Accuracy: ±1.5 mm

• Control Mode: Manual buttons + digital counter

• Voltage: 380V/50Hz/3 Phase (customizable)

• Machine Frame: 300 H-beam structure

• Cooling Method: Air cooled

• Machine Size: 7.8m × 1.3m × 1.4m

• Machine Weight: Approx. 4.5 tons

• Color: Customizable

• Warranty: 1 year

• Certification: CE, ISO

• Operator Required: 1 person

• Optional Add-ons: Manual decoiler, auto stacker

• Packaging: Steel base + plastic film wrap

• Shipping: 20GP container

• Support: Remote guidance, spare parts service, video tutorials

Application Fields

• Roofing panel production lines

• Sheet metal forming workshops

• Prefabricated housing factories

• Start-up and mobile production units

This machine is a solid choice for companies seeking a compact and economical roll forming solution for high-quality corrugated steel sheet manufacturing.
