Machine Type: Corrugated Roll Forming Machine
Material: Galvanized Steel, PPGI, Aluminum
Thickness Range: 0.3mm – 0.8mm
Forming Speed: 10–15m/min
Main Motor Power: 4–7.5kW
Hydraulic Cutting Power: 4kW
Roller Stations: 16–22
Roller Material: 45# steel, hard chrome coated
Drive System: Chain drive / Gearbox drive
Control System: PLC (Delta/Siemens)
Cutting Type: Hydraulic post-cut
Voltage: 380V/50Hz/3Phase or customized
Dimension: Approx. 7.5m x 1.2m x 1.5m
Weight: 5.5 – 7.5 tons
Color: Customized
Certification: CE, ISO9001
Warranty: 12 months
After-Sales Service: Engineers available to service overseas
Production Capacity: 8–10 sets/month
Feeding Width: 1000mm–1250mm
Effective Width: 840mm–1000mm
Application: Roofing sheet production
Automation: Fully Automatic
Forming Precision: High accuracy ±1mm
Noise Level: ≤75dB
Lubrication: Automatic
Material Handling: Manual/Automatic decoiler
Roll Changing Time: Quick-change system (optional)
Touch Screen: HMI touch display
Safety: Emergency stop and safety covers
Installation Support: Provided
Operation Training: Provided
Spare Parts: Free parts for 1 year
Transport Package: Waterproof film & steel frame
Delivery Time: 30 working days
Export Markets: Global (Asia, Africa, Europe, South America)
OEM/ODM: Acceptable
Brand: Toppo Machinery
Software: Customized production software
Panel Profile: Custom corrugated wave profile
Cutting Blade: Cr12Mov steel, heat-treated
Uncoiler: 5T/10T manual or hydraulic optional

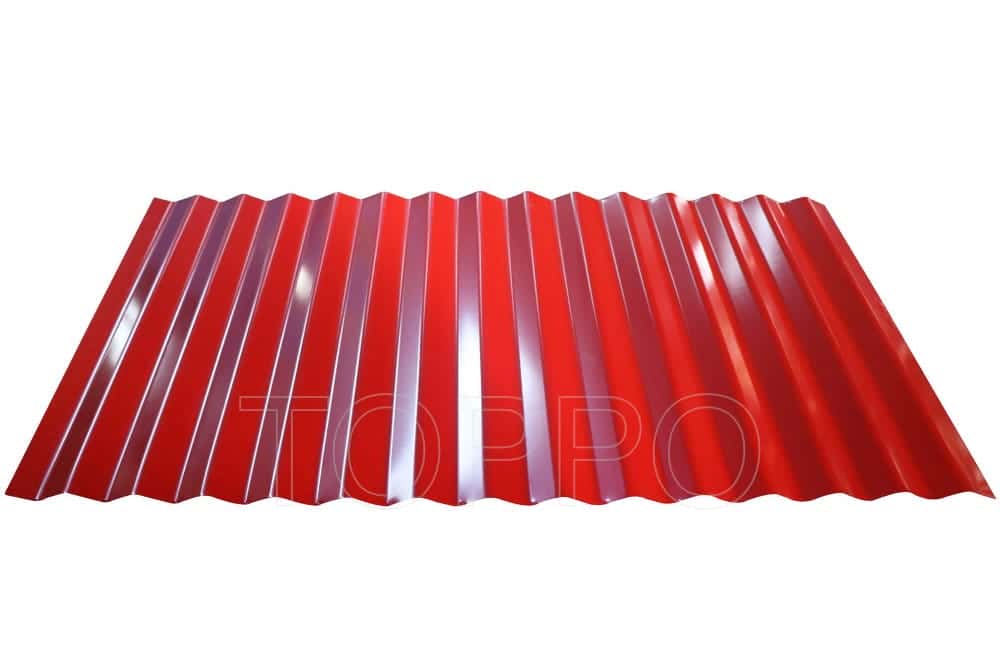

This machine is perfect for producing durable and aesthetically appealing corrugated metal roofing sheets. Designed for precision and ease of use, it ensures high-quality output with minimal maintenance requirements. Widely used in industrial, commercial, and residential roofing projects.
