Product Overview

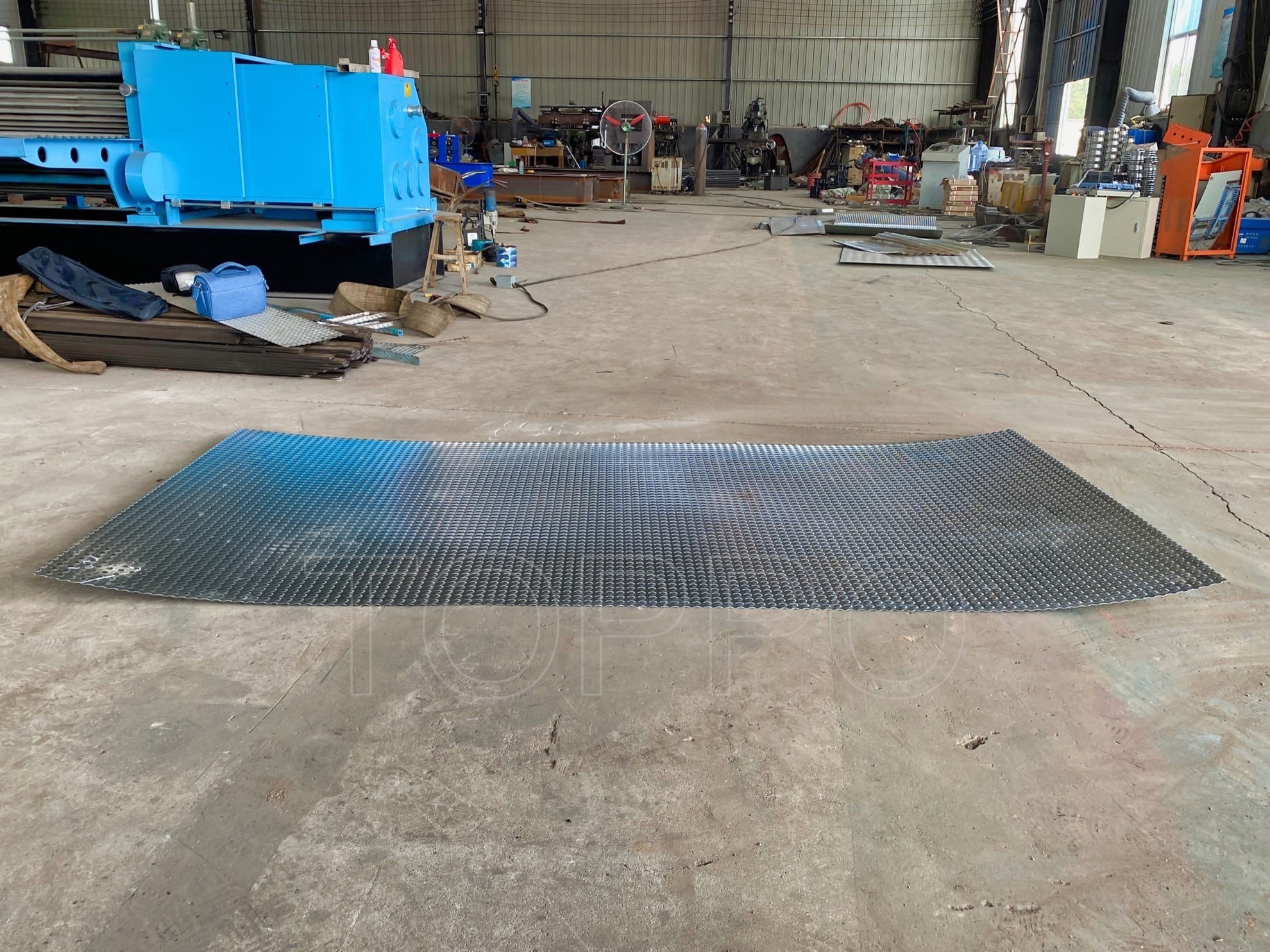

This heavy-duty embossing machine is specially designed for producing patterned metal sheets such as diamond plate (checkered plate). Equipped with precision engraved rollers and a powerful drive system, it ensures consistent pattern depth, high efficiency, and long-term durability. Ideal for industrial flooring, construction panels, and decorative metal processing.

Key Features

• Precision diamond pattern embossing rollers

• High-strength welded steel frame

• Stable gearbox transmission

• High power industrial motor

• Uniform embossing depth control

• Adjustable roller clearance

• Continuous feeding operation

• Low vibration design

• Easy maintenance structure

• Long service life components

Technical Attributes

• Machine Type: Metal Embossing Machine

• Application: Diamond Plate / Checkered Sheet Production

• Material: Carbon Steel, Stainless Steel, Aluminum

• Roller Quantity: 2

• Roller Material: Forged Alloy Steel

• Roller Surface: Diamond Pattern Engraved

• Roller Hardness: HRC 58-62

• Drive System: Gearbox Transmission

• Motor Power: High Torque Motor

• Voltage: 380V / 50Hz (Customizable)

• Control System: Manual / Semi-Automatic

• Embossing Width: Customizable

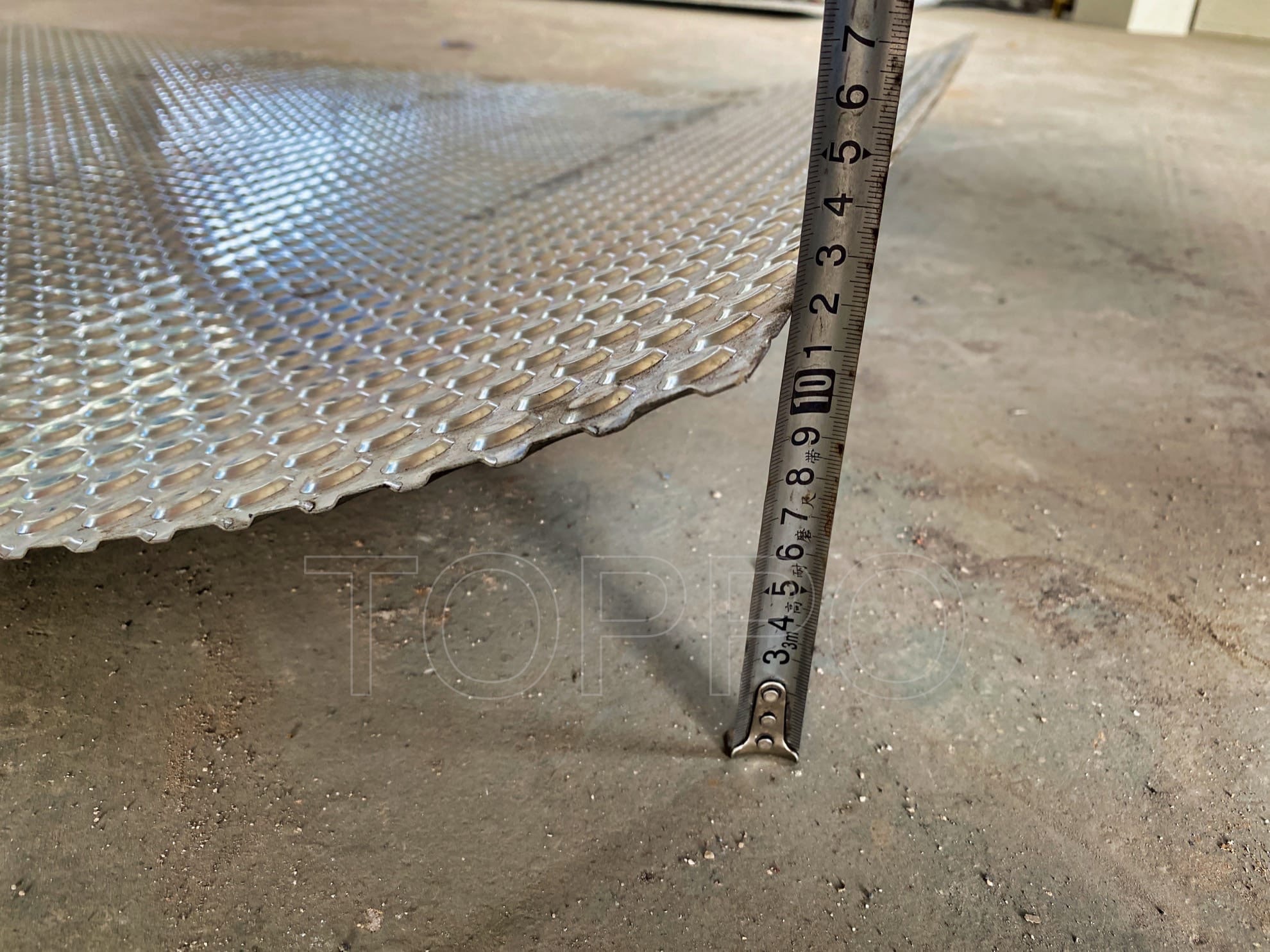

• Embossing Thickness: 0.5mm – 4.0mm

• Working Speed: Adjustable

• Pressure Adjustment: Manual Screw Adjustment

• Frame Structure: Integral Welded Base

• Machine Color: Blue (Customizable)

• Cooling System: Optional

• Lubrication: Automatic Oiling

• Installation: Floor Mounted

• Operation Mode: Continuous Production

• Safety Features: Emergency Stop, Protective Cover

• Roller Diameter: Customizable

• Pattern Type: Diamond / Custom Patterns

• Industry Use: Construction, Flooring, Decoration

• Energy Efficiency: High

• Maintenance: Low Maintenance Design

• Noise Level: Low

• Precision: High Accuracy Embossing

• Automation Level: Medium

• Feeding Method: Manual or Automatic

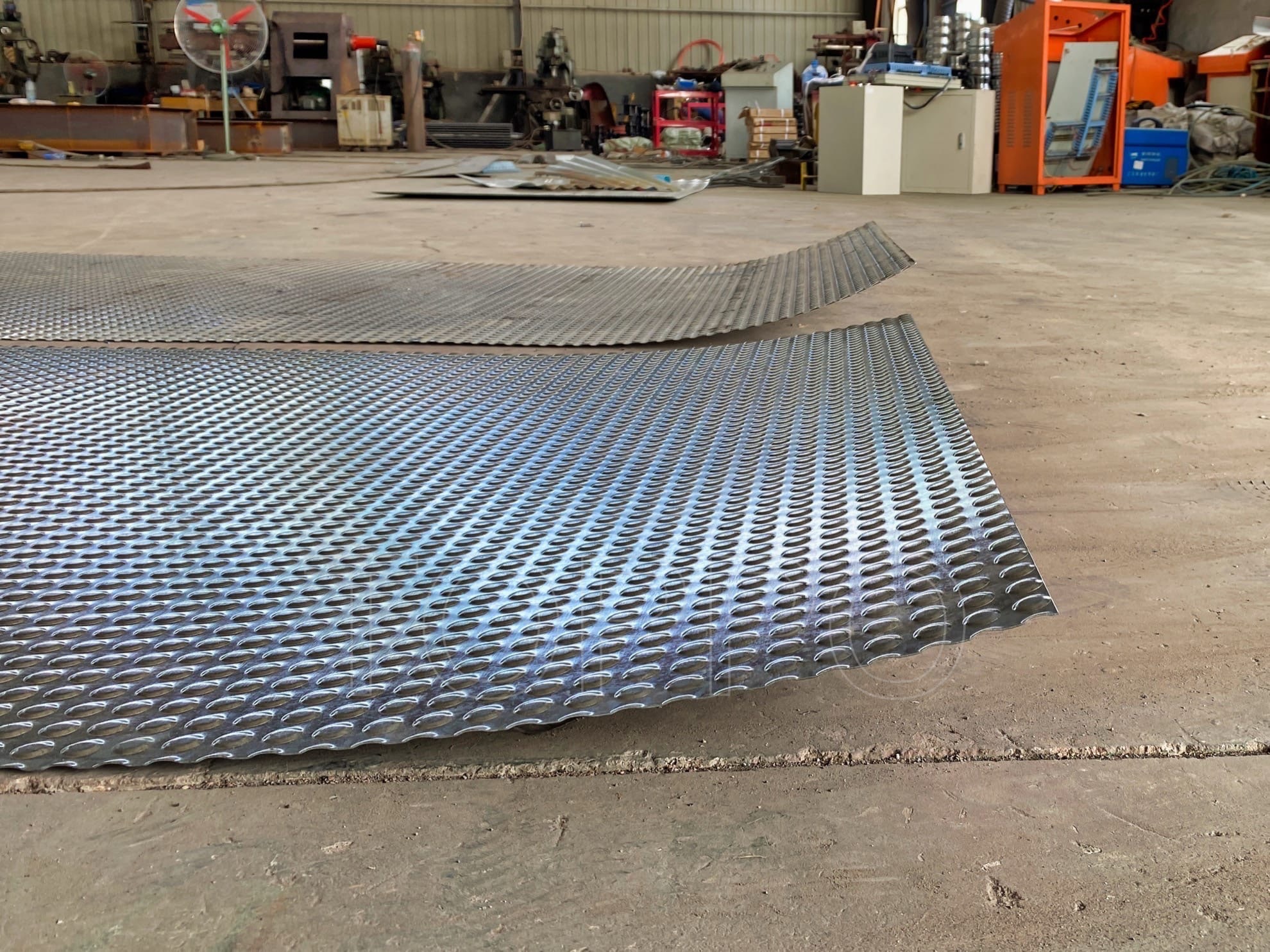

• Output Product: Embossed Metal Sheet

• Machine Weight: Heavy Duty

• Working Condition: Industrial Environment

• Temperature Range: Standard Industrial

• Corrosion Resistance: Yes

• Spare Parts: Available

• After-sales Service: Supported

• Customization: Fully Supported

• Roller Gap Control: Adjustable

• Transmission Efficiency: High

• Surface Finish Quality: Excellent

Applications

Widely used in manufacturing anti-slip steel plates, truck floors, stair treads, industrial walkways, elevator panels, and decorative metal sheets. Enhances both functionality and aesthetics of metal surfaces.

Advantages

This embossing machine delivers superior pattern clarity, consistent performance, and strong mechanical stability. It is an ideal choice for manufacturers requiring high-quality patterned metal sheets with reliable output and low operational cost.

Additional Information

The machine supports custom roller design to meet different pattern requirements. It can be integrated into production lines and combined with decoilers and cutting systems for a complete processing solution.
