Product Overview

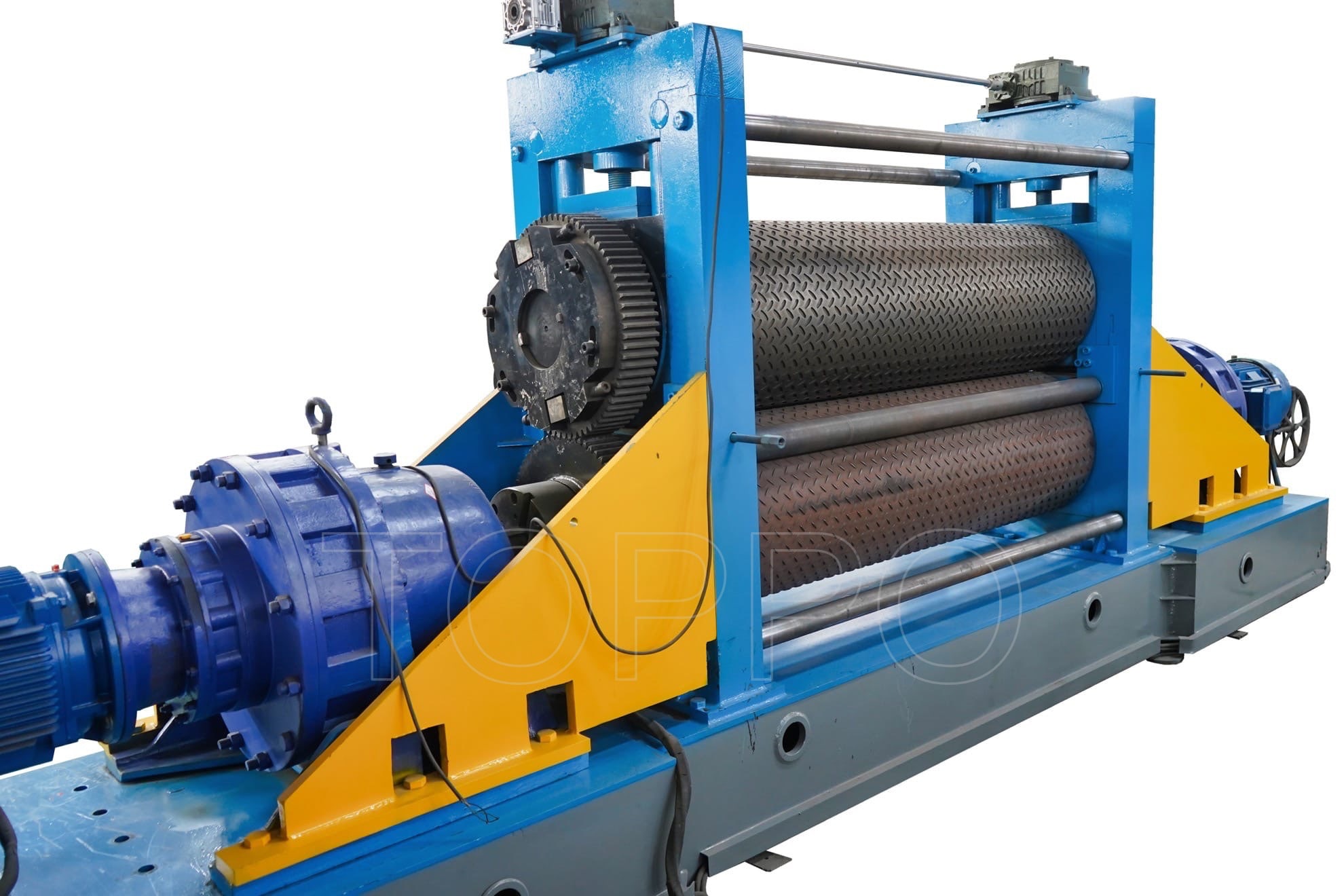

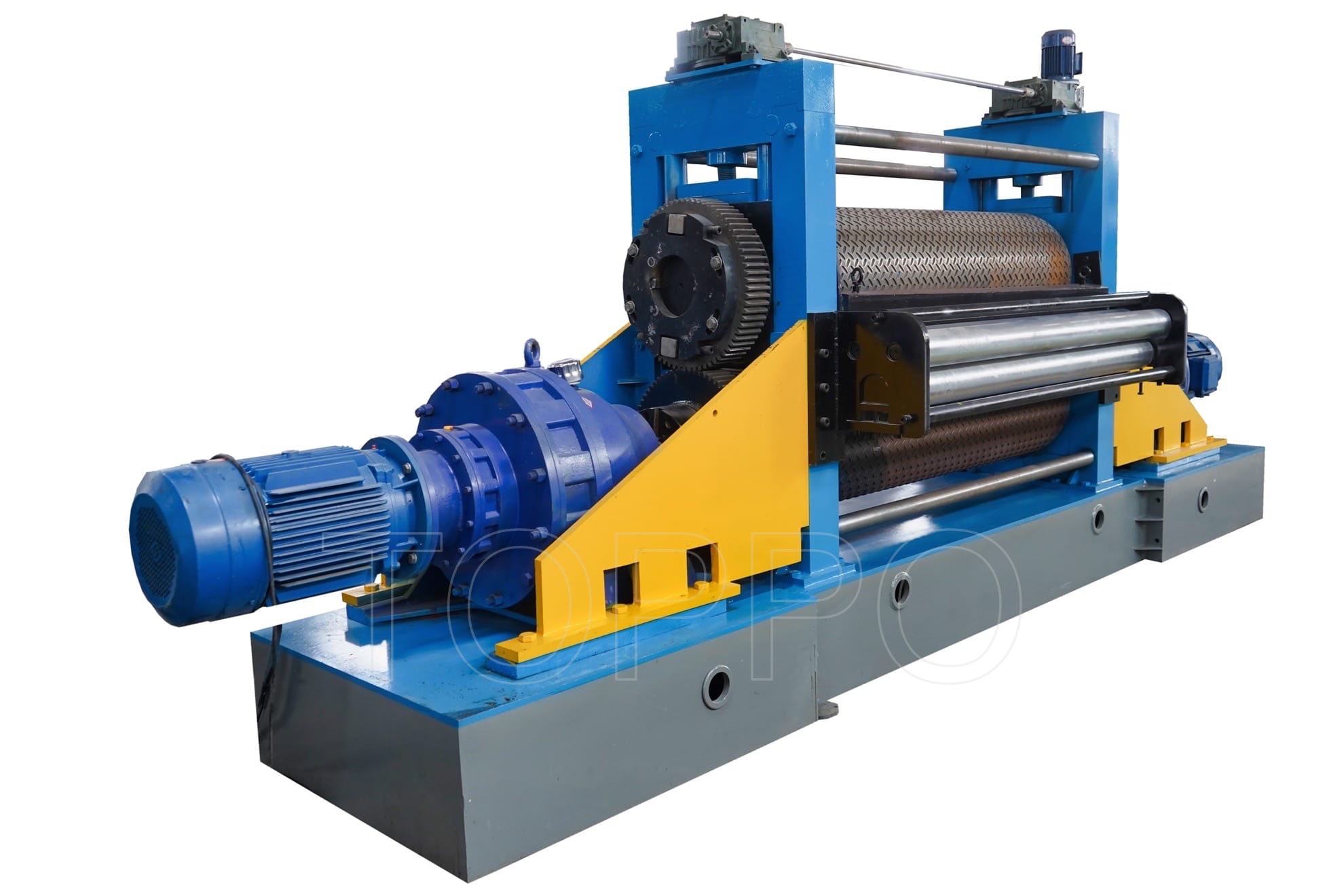

This automatic embossing machine is designed for efficient and precise surface texturing of metal sheets. It features a feeding table system for smooth material handling and dual high-precision rollers for uniform embossing. The machine is suitable for continuous production and ensures consistent quality across large batches.

Key Features

• Integrated feeding table for stable material input

• High precision embossing rollers

• Uniform horizontal pattern output

• Heavy-duty steel frame construction

• High torque motor with gearbox transmission

• Adjustable roller gap for different thicknesses

• Continuous and efficient production capability

• Low vibration and stable operation

• Easy-to-use control cabinet

• Durable and wear-resistant components

Technical Attributes

• Machine Type: Metal Sheet Embossing Machine

• Function: Surface Texturing / Pattern Embossing

• Applicable Materials: Steel, Stainless Steel, Aluminum, Galvanized Sheet

• Roller Quantity: 2

• Roller Material: Alloy Steel

• Roller Surface: Horizontal Texture Pattern

• Roller Hardness: HRC 55-60

• Drive System: Gearbox Transmission

• Motor Type: Industrial AC Motor

• Voltage: 380V / 50Hz (Customizable)

• Control System: Manual / Semi-Automatic

• Embossing Width: Customizable

• Embossing Thickness: 0.3mm – 3.5mm

• Working Speed: Adjustable

• Feeding System: Roller Feeding Table

• Pressure Adjustment: Manual Adjustment

• Frame Structure: Welded Steel Base

• Machine Color: Blue & Yellow (Customizable)

• Cooling System: Optional

• Lubrication System: Automatic

• Installation Type: Floor Mounted

• Operation Mode: Continuous Production

• Safety Devices: Emergency Stop Button, Protective Cover

• Roller Diameter: Customizable

• Pattern Type: Straight Line / Custom Patterns

• Industry Application: Construction, Decoration, Metal Processing

• Energy Efficiency: High

• Maintenance: Low Maintenance Requirement

• Noise Level: Low

• Precision Level: High Accuracy

• Automation Level: Medium

• Feeding Method: Manual / Automatic

• Output Product: Embossed Metal Sheet

• Machine Weight: Heavy Duty

• Working Environment: Industrial Use

• Operating Temperature: Standard Industrial Conditions

• Corrosion Resistance: Yes

• Spare Parts Supply: Available

• After-sales Service: Provided

• Customization Service: Supported

• Roller Gap Adjustment: Yes

• Transmission Efficiency: High

• Surface Finish: Smooth and Uniform

Applications

This machine is widely used for producing textured metal sheets for wall panels, ceilings, industrial panels, decorative sheets, and appliance surfaces. It enhances both the aesthetic appearance and structural strength of metal materials.

Advantages

With its integrated feeding system and precision rollers, this embossing machine ensures high production efficiency, excellent embossing quality, and long-term operational stability. It is an ideal choice for manufacturers seeking reliable and high-performance embossing solutions.

Additional Information

The machine can be customized with different roller patterns and sizes according to customer requirements. It can also be integrated into full production lines with decoilers and cutting systems to achieve automated manufacturing.
