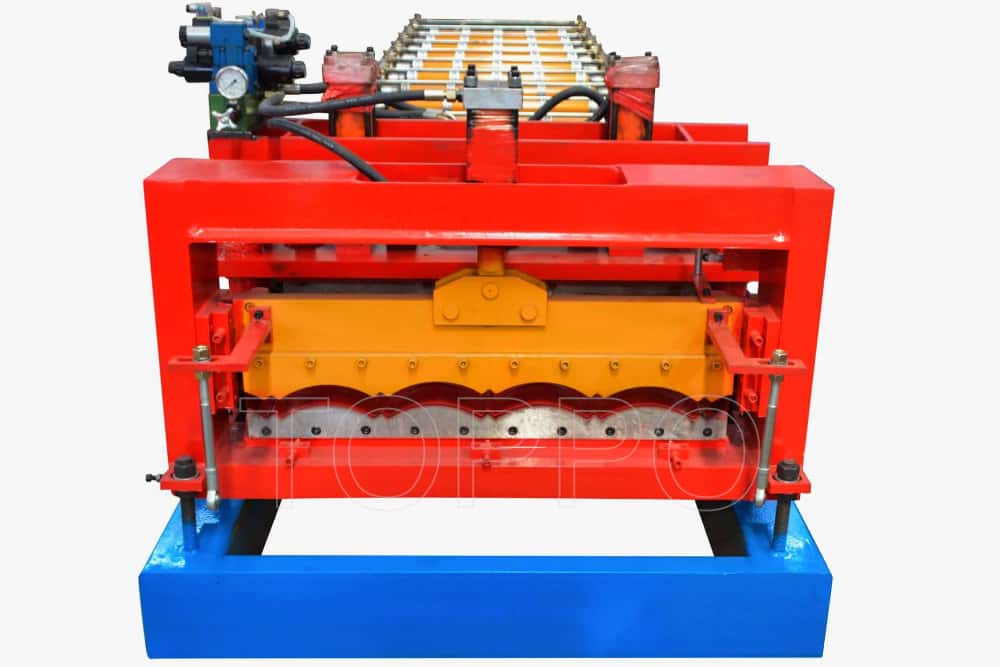

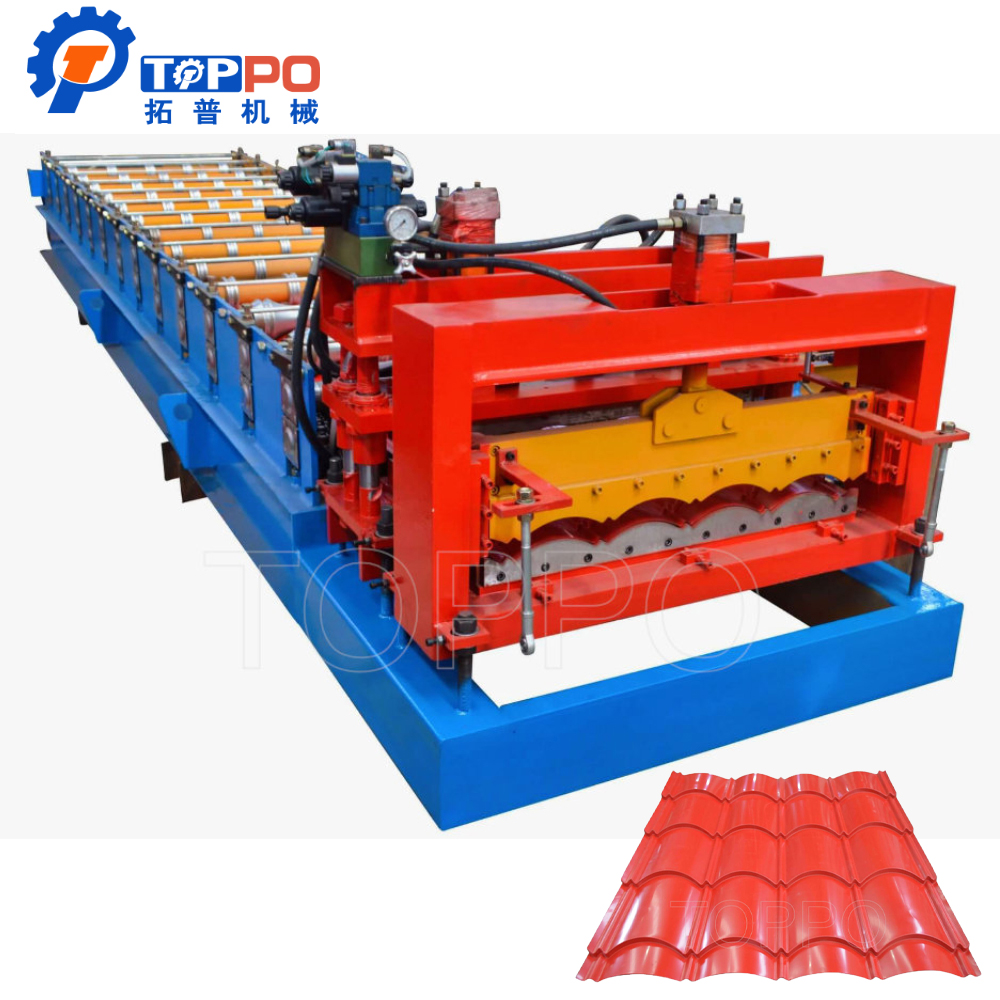

Product Overview

This automatic corrugated metal roofing panel roll forming machine is specially designed for producing high-quality corrugated roofing sheets with excellent strength and durability. It integrates roll forming, hydraulic pressing, and PLC control technology to ensure efficient and stable production.

Key Features & Specifications

• Machine Type: Corrugated Roofing Roll Forming Machine

• Application: Corrugated Metal Sheet Production

• Material: PPGI, GI, Aluminum Coil

• Thickness Range: 0.3mm - 0.8mm

• Forming Speed: 8-18m/min

• Roller Material: 45# Steel

• Roller Treatment: Hard Chrome Plated

• Number of Roller Stations: 15-22 Stations

• Shaft Material: High-strength Steel

• Shaft Diameter: 70-90mm

• Main Motor Power: 5.5KW - 7.5KW

• Hydraulic Power: 4KW

• Cutting Type: Hydraulic Cutting

• Cutting Accuracy: ±1mm

• Drive System: Chain Transmission

• Control System: PLC with Touch Screen

• Operation Mode: Fully Automatic

• Voltage: 380V / 50Hz / 3 Phase

• Frame Structure: Heavy-duty Welded Steel Frame

• Machine Color: Customizable

• Feeding Width: Adjustable

• Profile Type: Corrugated Roofing Panel

• Production Efficiency: High Output

• Noise Level: Low Noise

• Lubrication System: Automatic Lubrication

• Cooling System: Air Cooling

• Safety Protection: Emergency Stop Button

• Control Interface: Human-Machine Interface (HMI)

• Forming Precision: High Accuracy

• Surface Finish: Smooth and Uniform

• Durability: Long Service Life

• Maintenance: Easy Maintenance

• Installation: Quick Installation

• Automation Level: High Automation

• Operator Requirement: Low Skill Requirement

• Transport: Container Shipment

• After-sales Service: Technical Support & Spare Parts

• Warranty: 12 Months

• Certification: CE / ISO

• Customization: Available

• Working Environment: Industrial Production

Additional Description

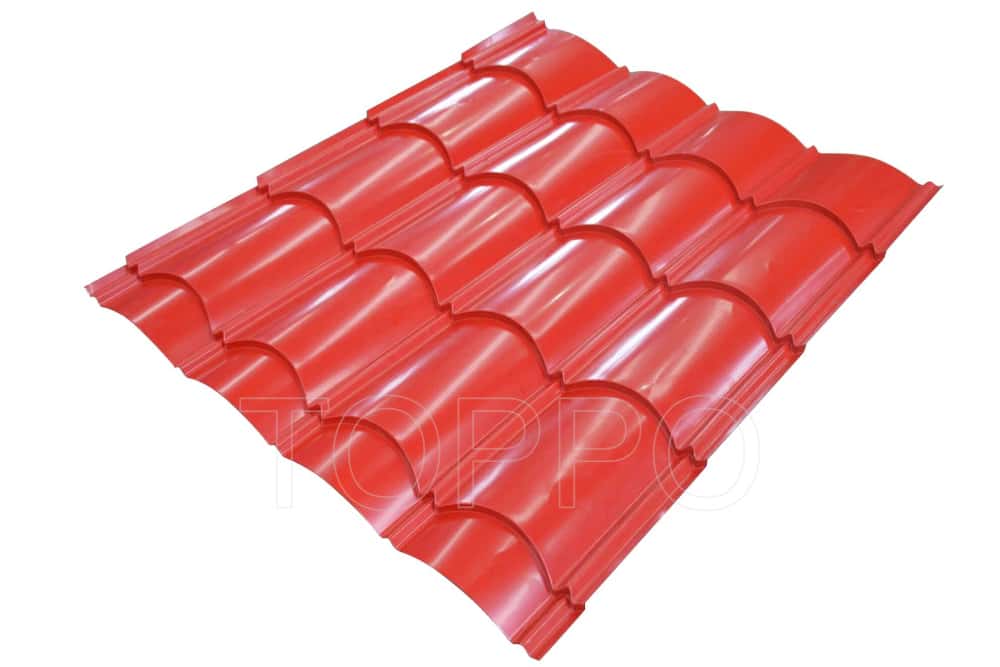

This machine is widely used in roofing construction, warehouses, factories, and industrial buildings. It produces strong and weather-resistant corrugated panels with excellent load-bearing capacity.

The integrated hydraulic pressing system enhances forming accuracy, while the PLC control system allows easy operation and real-time monitoring. The machine ensures continuous production with minimal downtime and high efficiency.

Its robust structure and premium components guarantee long-term stable performance. Custom profile designs are available to meet different project requirements, making it a reliable solution for modern metal roofing manufacturers.
