Product Overview

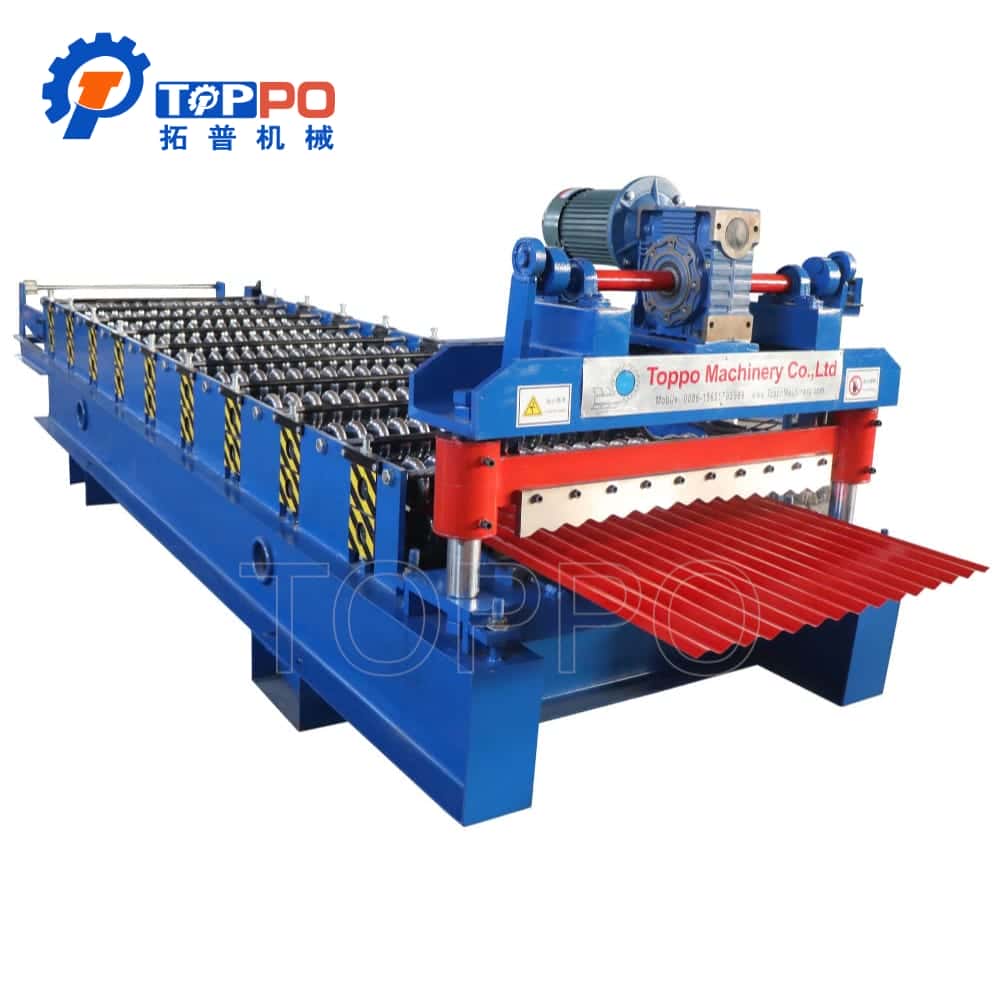

This automatic corrugated metal roofing sheet roll forming machine is designed for producing high-quality corrugated panels with excellent strength and durability. It integrates advanced roll forming technology with hydraulic cutting and PLC control to ensure efficient and stable production.

Key Features & Specifications

• Machine Type: Corrugated Sheet Roll Forming Machine

• Application: Roofing Panel Production

• Material: PPGI, GI, Aluminum Coil

• Thickness Range: 0.3mm - 0.8mm

• Forming Speed: 8-20m/min

• Roller Material: 45# Steel

• Roller Treatment: Chrome Plated

• Number of Roller Stations: 15-22 Stations

• Shaft Material: High-strength Steel

• Shaft Diameter: 70-90mm

• Main Motor Power: 5.5KW - 7.5KW

• Hydraulic Power: 4KW

• Cutting Type: Hydraulic Cutting

• Cutting Accuracy: ±1mm

• Drive System: Chain Transmission

• Control System: PLC Automatic Control

• Operation Mode: Fully Automatic

• Voltage: 380V / 50Hz / 3 Phase

• Frame Structure: Heavy-duty Welded Steel Frame

• Machine Color: Customizable

• Feeding Width: Adjustable

• Profile Type: Corrugated Roofing Panel

• Production Efficiency: High Output

• Noise Level: Low Noise Operation

• Lubrication System: Automatic Lubrication

• Cooling System: Air Cooling

• Safety Protection: Emergency Stop

• Control Interface: Touch Screen HMI

• Forming Precision: High Accuracy

• Surface Finish: Smooth and Uniform

• Durability: Long Service Life

• Maintenance: Easy Maintenance

• Installation: Quick Installation

• Automation Level: High Automation

• Operator Requirement: Low Skill Requirement

• Transport: Container Shipment

• After-sales Service: Technical Support Available

• Warranty: 12 Months

• Certification: CE / ISO

• Customization: Available

• Working Environment: Industrial Use

Additional Description

This machine is widely used in construction, industrial buildings, warehouses, and steel structure projects. It produces durable and weather-resistant corrugated roofing sheets with consistent quality.

The PLC control system allows operators to easily set parameters and monitor production, improving efficiency and reducing labor costs. The hydraulic cutting system ensures precise length control and smooth cutting edges.

With a robust frame structure and high-quality components, the machine ensures long-term stable operation and reliability. Custom profile options are available to meet various market demands and project requirements.
