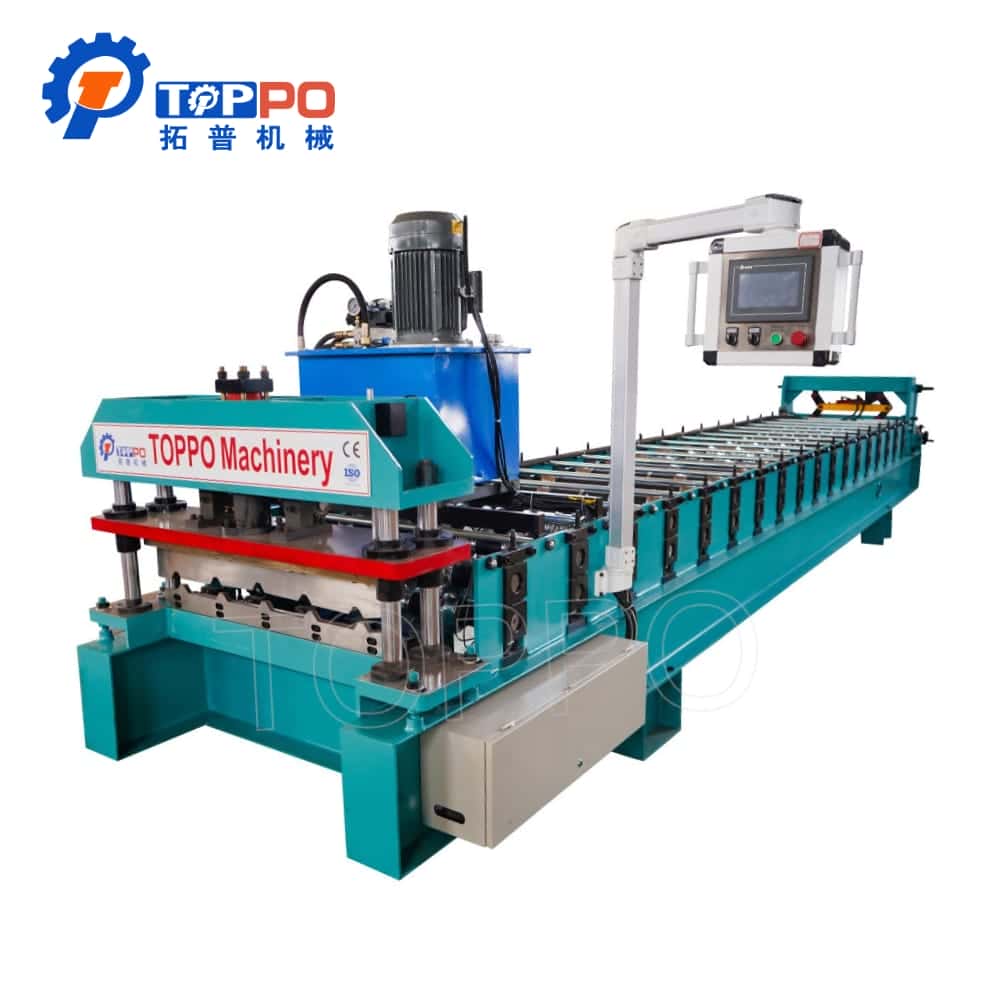

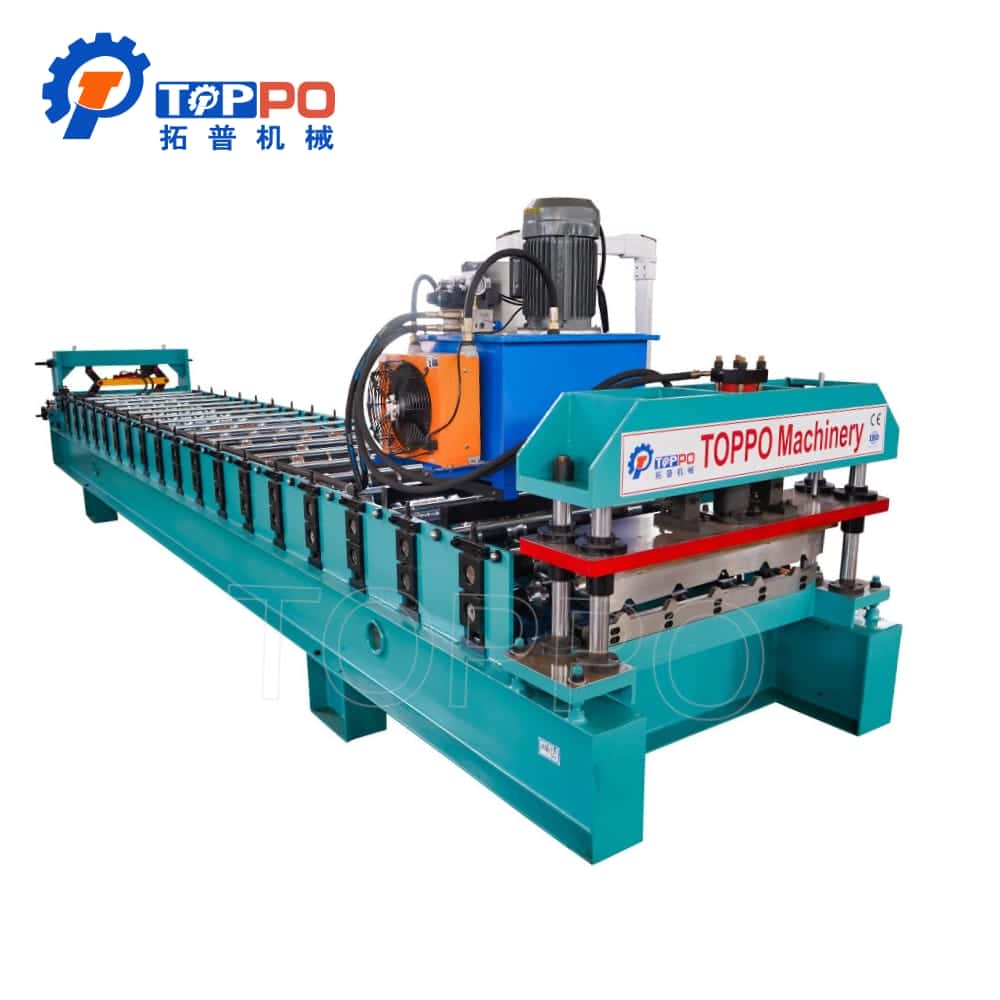

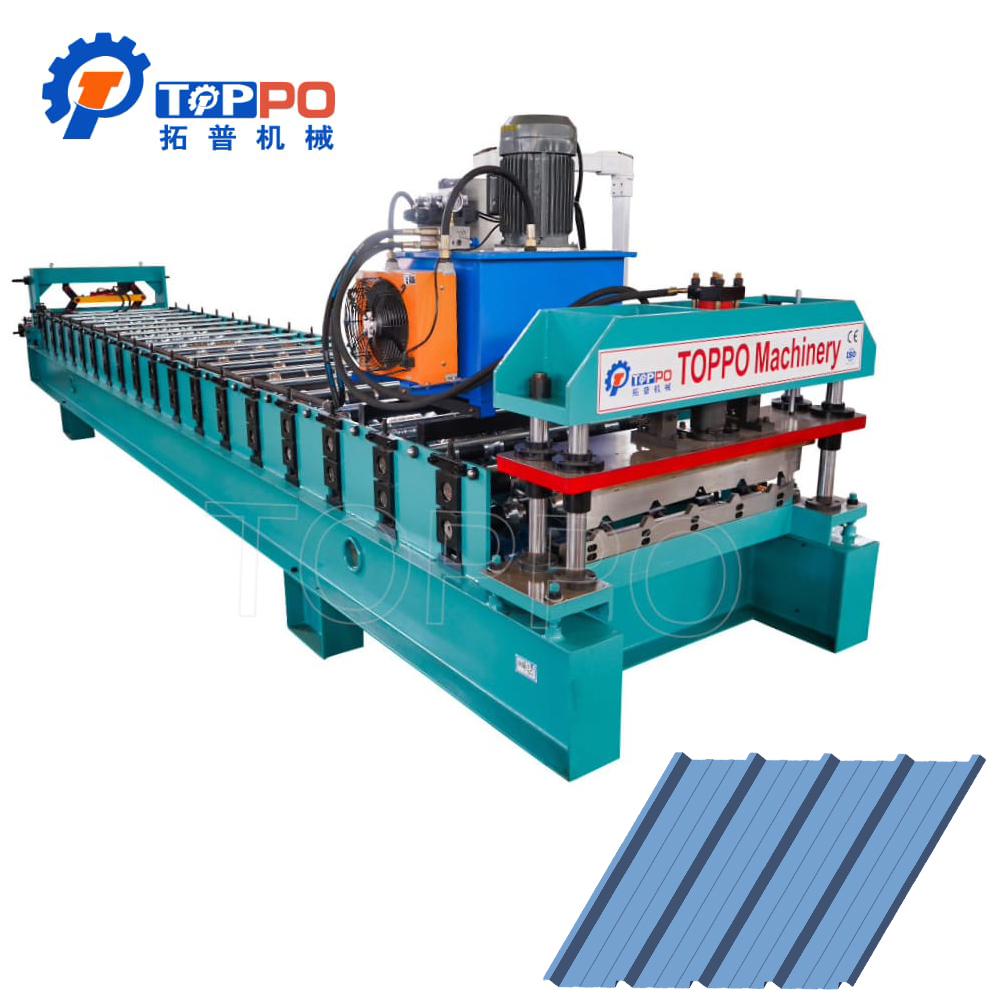

Product Overview

This automatic corrugated metal roofing panel roll forming machine is designed for high-speed production of durable and high-quality corrugated roofing sheets. It integrates advanced roll forming technology with hydraulic cutting and intelligent PLC control for efficient and stable operation.

Key Features & Specifications

• Machine Type: Corrugated Metal Roll Forming Machine

• Application: Roofing Sheet Production

• Material: PPGI, GI, Aluminum Coil

• Thickness Range: 0.3mm - 0.8mm

• Forming Speed: 8-20m/min

• Roller Material: 45# Steel

• Roller Surface Treatment: Chrome Plated

• Number of Roller Stations: 15-22 Stations

• Shaft Material: High-strength Steel

• Shaft Diameter: 70-90mm

• Main Motor Power: 5.5KW - 7.5KW

• Hydraulic Power: 4KW

• Cutting Type: Hydraulic Cutting

• Cutting Accuracy: ±1mm

• Drive System: Chain Transmission

• Control System: PLC with Touch Screen

• Operation Mode: Fully Automatic

• Voltage: 380V / 50Hz / 3 Phase

• Frame Structure: Heavy-duty Welded Steel Frame

• Machine Color: Customizable

• Feeding Width: Adjustable

• Profile Type: Corrugated Roofing Panel

• Production Efficiency: High Output

• Noise Level: Low Noise Operation

• Lubrication System: Automatic Lubrication

• Cooling System: Air Cooling

• Safety Protection: Emergency Stop Button

• Control Interface: HMI Touch Screen

• Forming Precision: High Accuracy

• Surface Finish: Smooth and Uniform

• Durability: Long Service Life

• Maintenance: Easy Maintenance

• Installation: Quick Installation

• Automation Level: High Automation

• Operator Requirement: Low Skill Requirement

• Transport: Container Shipment

• After-sales Service: Technical Support Available

• Warranty: 12 Months

• Certification: CE / ISO

• Customization: Available

• Working Environment: Industrial Production

Additional Description

This machine is widely used in construction, warehouses, factories, and steel structure buildings for producing strong and weather-resistant corrugated roofing panels. It ensures consistent quality and high production efficiency.

The advanced PLC control system allows easy operation and precise parameter adjustments, reducing labor costs and improving productivity. The hydraulic cutting system ensures accurate cutting lengths and clean edges.

With a robust frame and high-quality components, the machine delivers long-term reliability and stable performance. Custom profile designs are available to meet different customer requirements and market demands.
