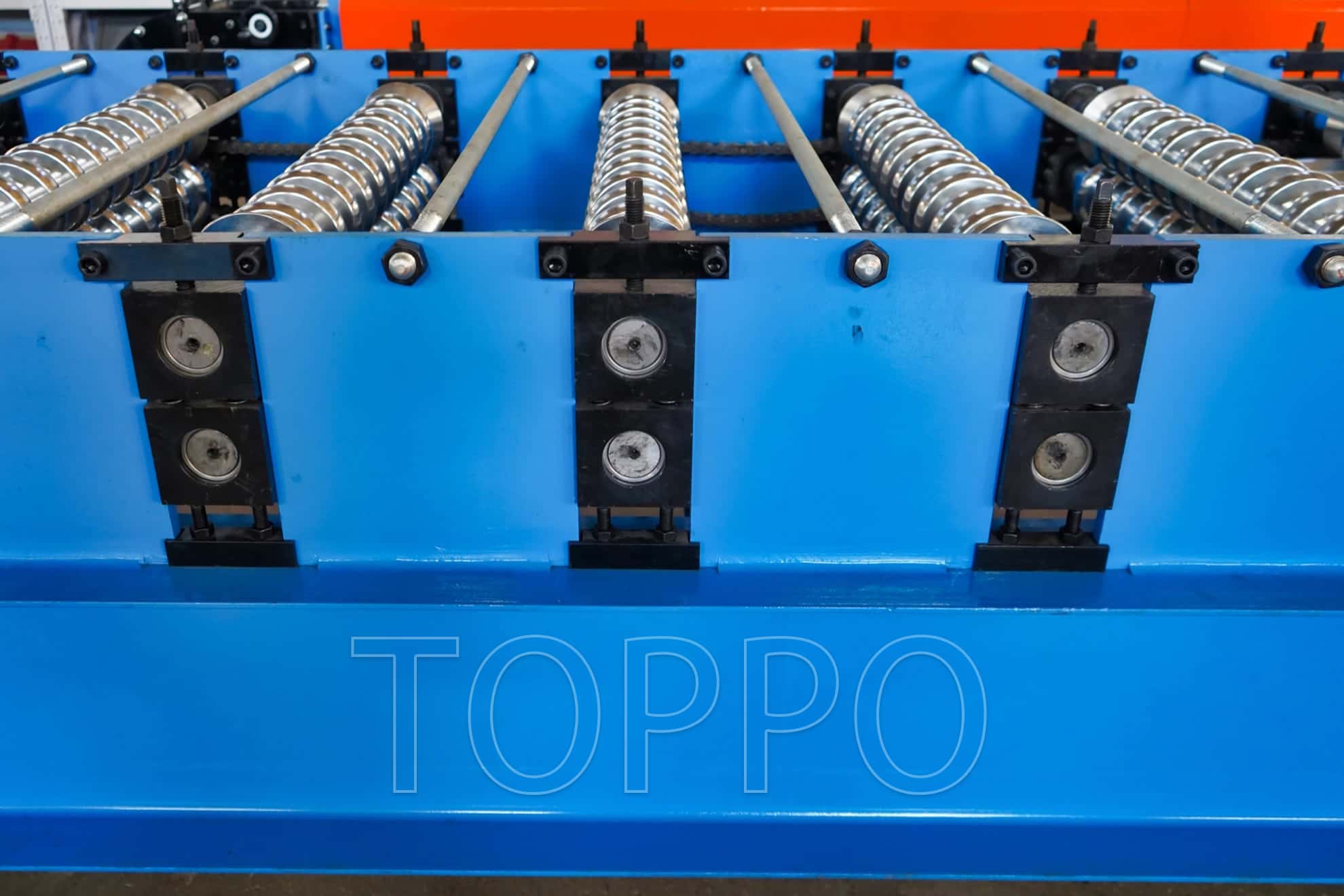

This automatic corrugated roofing panel making machine is a complete roll forming solution designed for continuous and efficient production of metal roof sheets. It integrates advanced control technology, precision forming rollers, and hydraulic cutting for high-quality output.
Machine Type: Corrugated Roofing Panel Roll Forming Machine
Forming Method: Cold Roll Forming
Production Speed: 10-35 m/min
Material Thickness: 0.3-1.2 mm
Material Type: GI, PPGI, Aluminum, Steel Coil
Feeding Width: 1000-1250 mm
Effective Width: Customizable
Control System: PLC Automatic Control
Operation Interface: Touch Screen HMI
Cutting System: Hydraulic Cutting
Cutting Accuracy: ±1 mm
Main Motor Power: 7.5-15 kW
Hydraulic Power: 4-7.5 kW
Drive System: Chain Drive / Gearbox Optional
Roller Stations: 14-24 Stations
Roller Material: 45# Steel Chrome Plated
Shaft Material: High Strength Steel
Shaft Diameter: 70-95 mm
Frame Structure: Heavy Duty Welded Steel Frame
Voltage: 380V/50Hz/3Phase (Customizable)
Decoiler Type: Manual / Hydraulic
Decoiler Capacity: 5-10 Tons
Machine Length: 8-18 Meters
Machine Weight: 6-12 Tons
Profile Type: Corrugated / Trapezoidal / Custom
Blade Material: Cr12 Heat Treated Steel
Lubrication System: Automatic Lubrication
Noise Level: Low Noise Operation
Automation Level: Fully Automatic
Cooling System: Air Cooling
Safety System: Emergency Stop & Safety Guards
Production Capacity: Continuous High Output
Tolerance Control: High Precision Forming
Energy Consumption: Low Power Consumption
Maintenance: Easy Maintenance
Installation: Quick Installation
Durability: Long Service Life
Flexibility: Custom Profile Design Supported
Compatibility: Multi-material Processing
Application: Roofing & Wall Panels Production
Industry Use: Construction, Warehouses, Factories
Output Quality: Smooth Surface & Accurate Shape
This machine is built with a reinforced frame and high-precision rollers to ensure consistent corrugated sheet production. It supports a variety of roofing panel designs and can be customized according to customer requirements.
The intelligent PLC control system enables automatic operation, including length setting, counting, and cutting, which significantly improves production efficiency and reduces labor costs.
Widely used in steel structure buildings, industrial plants, and residential roofing projects, this equipment provides a reliable and cost-effective solution for metal roofing manufacturing.
Its stable performance, low maintenance requirements, and long service life make it a preferred choice for manufacturers worldwide.
