This roofing panel making machine is a reliable and efficient roll forming system engineered for producing high-quality corrugated metal roofing sheets. With a user-friendly control cabinet and stable forming structure, it ensures consistent production and ease of operation.
Machine Type: Roofing Panel Roll Forming Machine
Forming Method: Cold Roll Forming
Production Speed: 10-30 m/min
Material Thickness: 0.3-1.0 mm
Material Type: GI, PPGI, Aluminum, Steel Coil
Feeding Width: 1000-1250 mm
Effective Width: Customizable
Control System: PLC Control System
Operation Interface: Button Panel / Touch Screen
Cutting System: Hydraulic Cutting
Cutting Accuracy: ±1 mm
Main Motor Power: 5.5-11 kW
Hydraulic Power: 4-5.5 kW
Drive System: Chain Drive
Roller Stations: 12-20 Stations
Roller Material: 45# Steel Chrome Plated
Shaft Material: High Strength Steel
Shaft Diameter: 70-90 mm
Frame Structure: Welded Steel Frame
Voltage: 380V/50Hz/3Phase (Customizable)
Decoiler Type: Manual / Hydraulic
Decoiler Capacity: 5 Tons
Machine Length: 7-14 Meters
Machine Weight: 5-10 Tons
Profile Type: Corrugated Sheets
Blade Material: Cr12 Heat Treated Steel
Lubrication System: Manual / Automatic Optional
Noise Level: Low Noise Operation
Automation Level: Semi / Fully Automatic
Cooling System: Air Cooling
Safety System: Emergency Stop Button
Production Capacity: Continuous Production
Tolerance Control: High Precision Forming
Energy Consumption: Low Energy Usage
Maintenance: Easy Maintenance
Installation: Simple Installation
Durability: Long Service Life
Flexibility: Custom Profile Supported
Compatibility: Multi-material Processing
Application: Roofing Sheet Production
Industry Use: Construction, Workshop, Warehouse

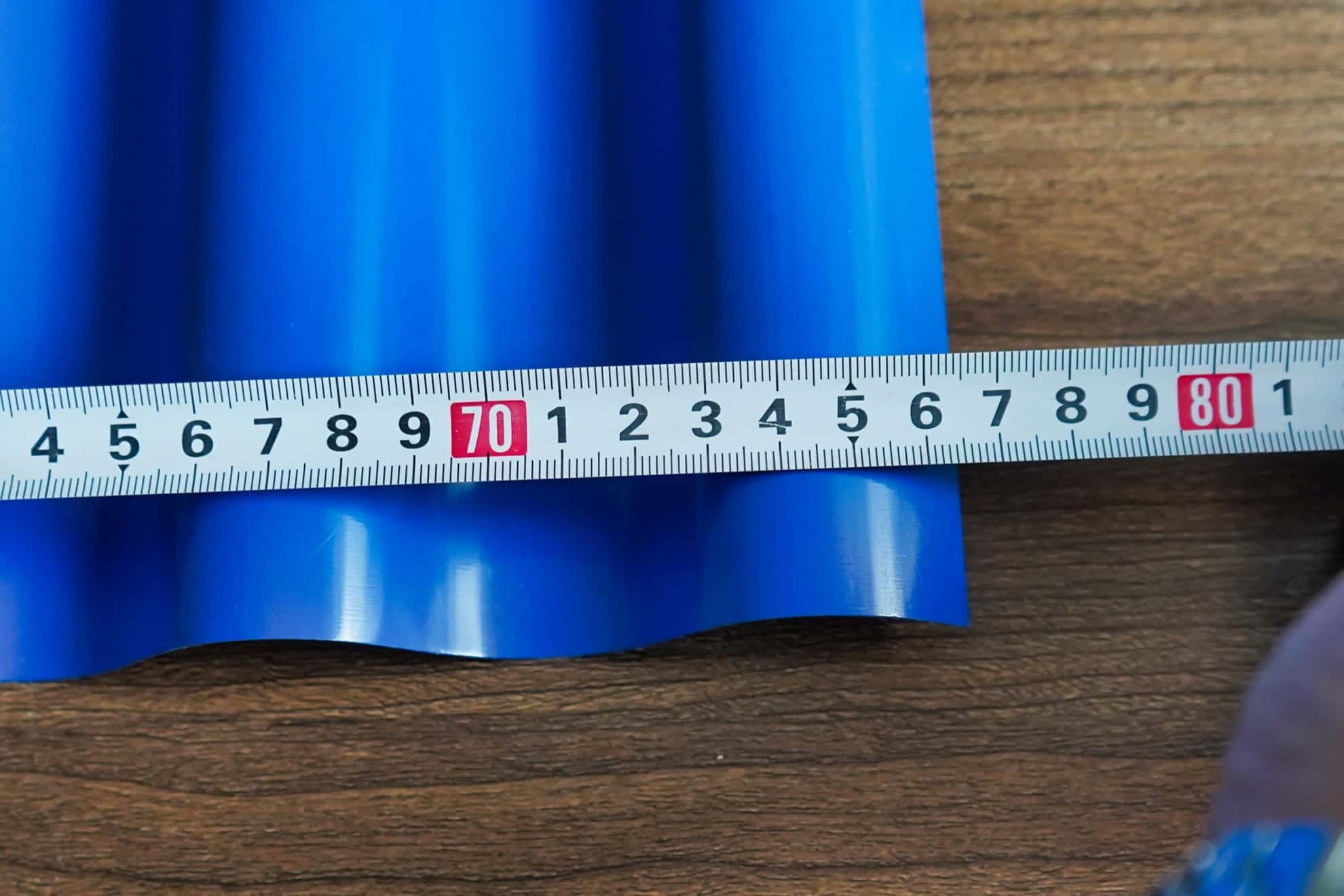

Output Quality: Smooth and Uniform Corrugation
The machine features a compact design with an independent control cabinet, making operation more convenient and safe. It is ideal for small to medium scale manufacturers looking for reliable roofing sheet production equipment.
With stable forming rollers and precise cutting system, it ensures consistent sheet dimensions and excellent surface quality. The system supports customization to meet various profile requirements.
This equipment is widely used in industrial buildings, agricultural structures, and residential roofing applications, providing a cost-effective and durable solution for metal sheet production.
Its efficient performance, ease of operation, and long lifespan make it a valuable investment for roofing material manufacturers.
