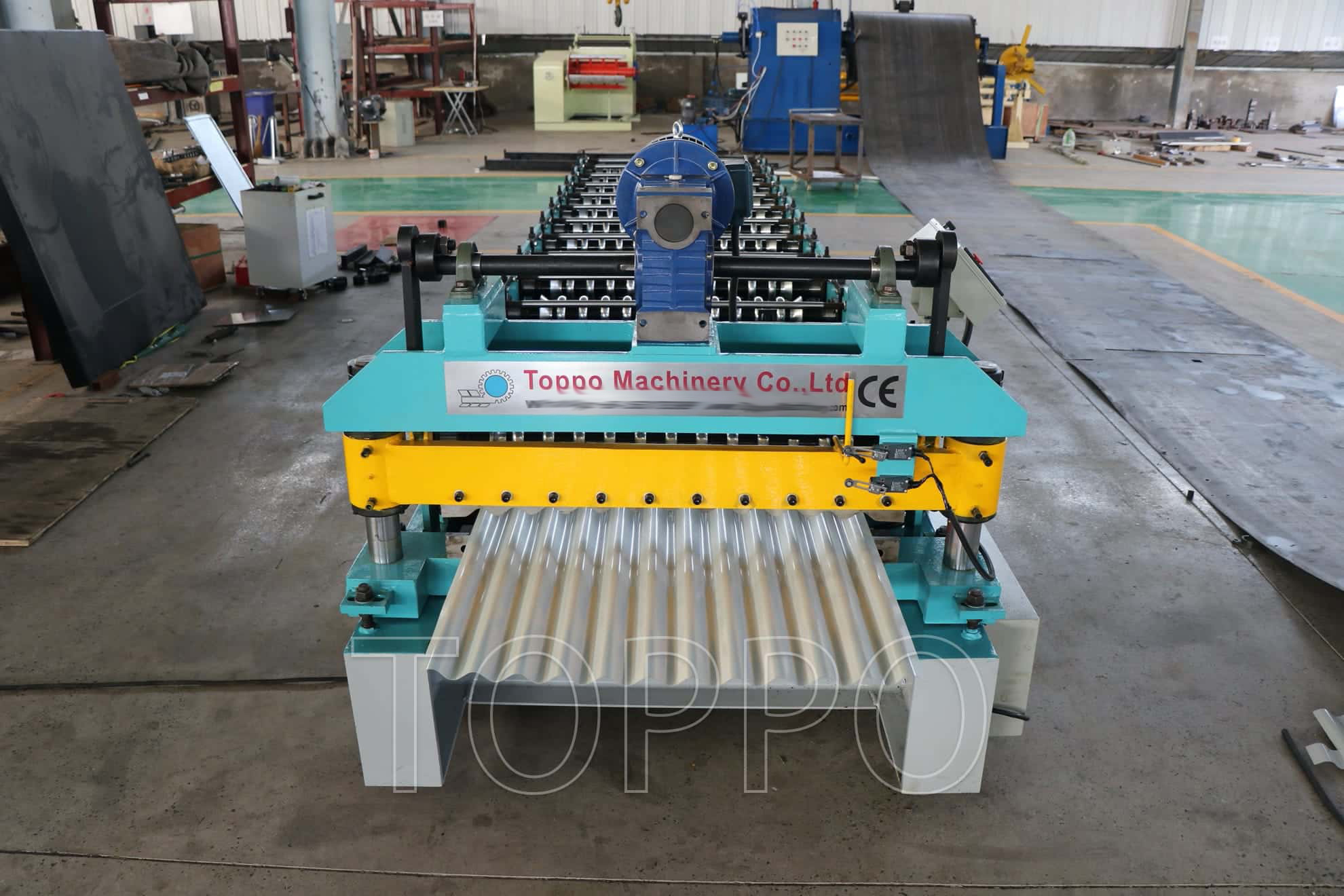

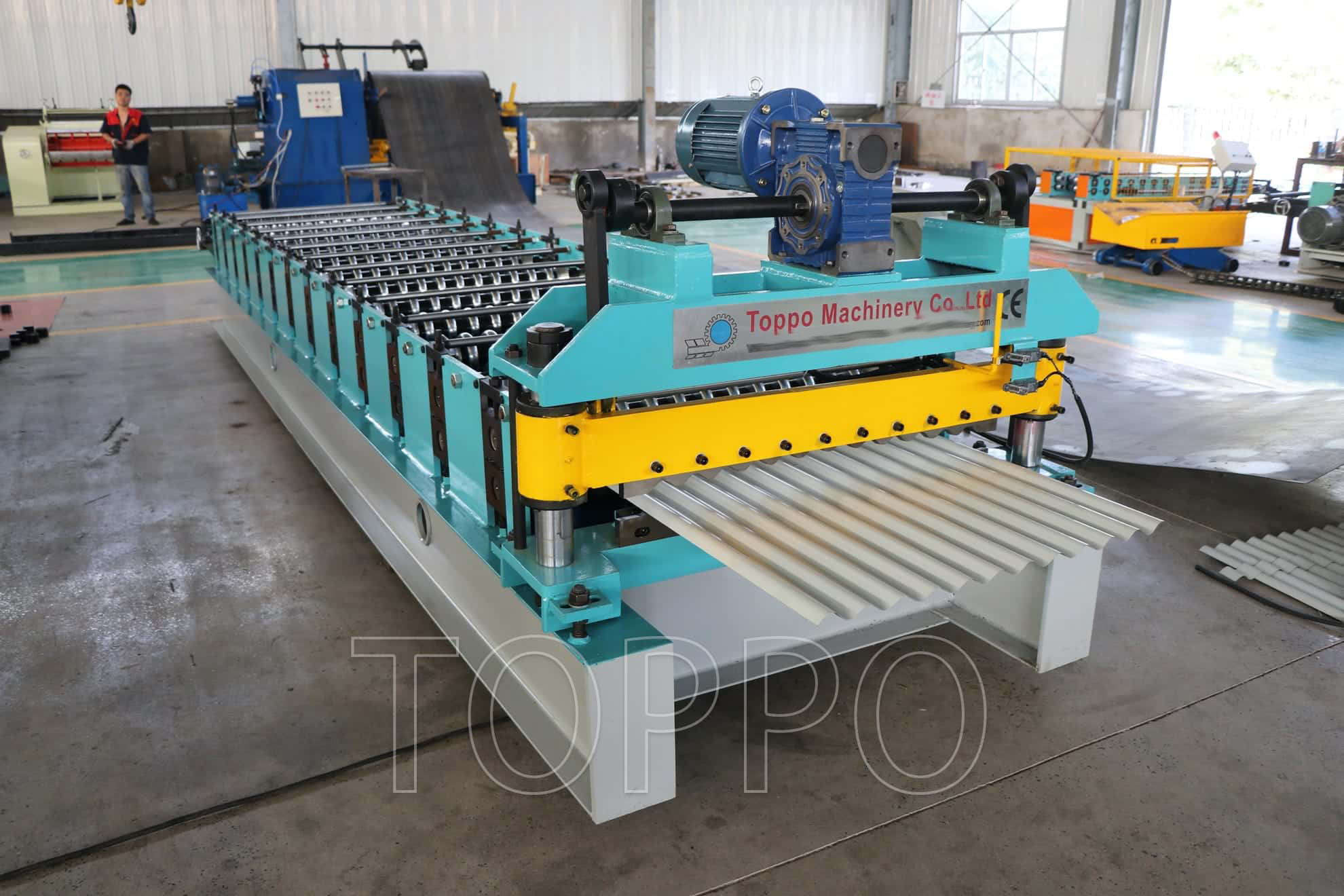

This heavy duty roofing panel making machine is designed for high-volume production of corrugated metal roofing sheets. Built with a reinforced structure and powerful drive system, it ensures stable operation, high precision, and long-term durability.
Machine Type: Corrugated Roofing Panel Roll Forming Machine
Forming Technology: Cold Roll Forming
Production Speed: 10-30 m/min
Material Thickness: 0.3-1.2 mm
Material Type: GI, PPGI, Aluminum, Steel Coil
Feeding Width: 1000-1250 mm
Effective Width: Customizable
Control System: PLC Automatic Control
Operation Interface: Touch Screen / Control Panel
Cutting System: Hydraulic Cutting
Cutting Accuracy: ±1 mm
Main Motor Power: 7.5-18.5 kW
Hydraulic Station Power: 4-7.5 kW
Drive System: Gearbox Drive / Chain Drive
Roller Stations: 16-26 Stations
Roller Material: 45# Steel Chrome Plated
Shaft Material: High Strength Alloy Steel
Shaft Diameter: 75-100 mm
Frame Structure: Heavy Duty Welded Steel Frame
Voltage: 380V/50Hz/3Phase (Customizable)
Decoiler Type: Manual / Hydraulic / Automatic
Decoiler Capacity: 5-12 Tons
Machine Length: 9-20 Meters
Machine Weight: 7-15 Tons
Profile Type: Corrugated / Trapezoidal / Custom
Blade Material: Cr12Mov Heat Treated Steel
Lubrication System: Automatic Lubrication
Noise Level: Low Noise Operation
Automation Level: Fully Automatic
Cooling System: Air Cooling
Safety Protection: Emergency Stop & Safety Guards
Production Capacity: Continuous High Output
Tolerance Control: High Precision Forming
Energy Efficiency: Optimized Power Consumption
Maintenance: Easy Maintenance
Installation: Fast Installation
Durability: Extended Service Life
Flexibility: Custom Profile Design Supported
Compatibility: Multi-material Processing
Application: Roofing & Wall Panel Manufacturing
Industry Use: Construction, Industrial Plants, Warehouses
Output Quality: Smooth Surface & Accurate Corrugation
This machine adopts a powerful gearbox drive and reinforced forming system, ensuring stable operation even under heavy-duty production conditions. The precision rollers guarantee uniform corrugation and high-quality sheet output.
The intelligent PLC system allows automatic control of length, speed, and cutting, reducing labor intensity and improving efficiency. It supports customized profiles to meet various market needs.
Widely used in steel structure buildings and large-scale construction projects, this equipment is ideal for manufacturers seeking reliable, high-capacity roofing sheet production solutions.
Its robust design, long lifespan, and low maintenance requirements make it a cost-effective investment for industrial metal roofing production.
