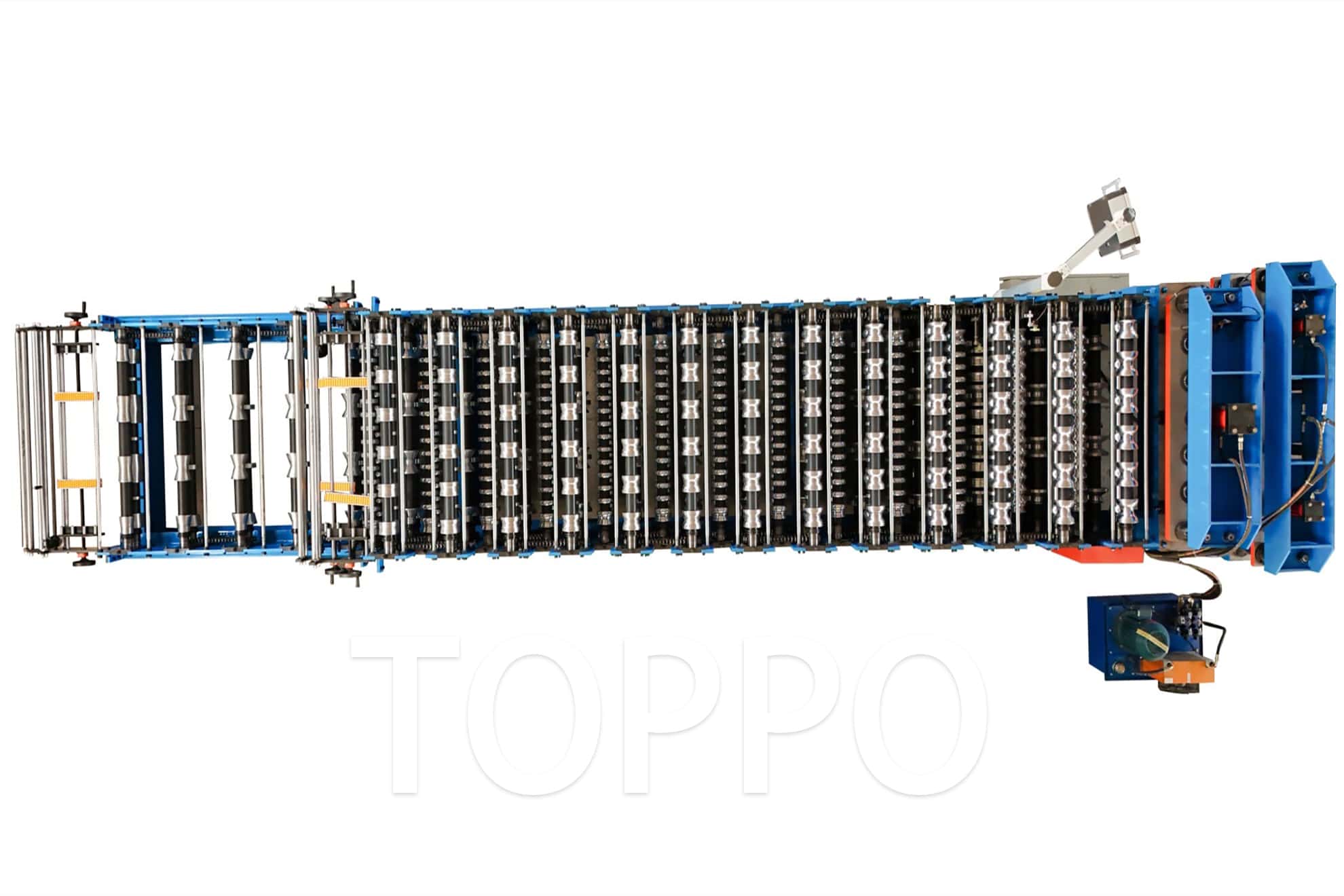

High Speed Aluminum Steel Corrugated Roofing Sheet Roll Forming Machine

This corrugated roofing sheet roll forming machine is engineered for producing high-quality aluminum and steel roofing panels with excellent precision and durability. The machine adopts advanced cold roll forming technology combined with PLC automatic control to ensure stable operation, smooth forming performance, and high-speed production efficiency.

The equipment is suitable for manufacturing corrugated roofing sheets widely used in industrial plants, warehouses, steel structure buildings, commercial roofing systems, agricultural buildings, and residential construction projects. Its heavy-duty frame structure and precision roller system provide long-term stable operation and low maintenance cost.

Main Advantages

The machine features automatic feeding, precise forming, hydraulic cutting, and intelligent control operation. It supports customized profile production according to customer requirements and can process galvanized steel, aluminum sheet, pre-painted steel coil, and other metal materials.

With strong forming capability and high automation level, the machine greatly improves production efficiency while reducing labor costs. It is an ideal solution for roofing sheet manufacturers and construction material suppliers.

Technical Features & Product Attributes

• Machine Name: Corrugated Roofing Sheet Roll Forming Machine

• Suitable Materials: Aluminum, Galvanized Steel, PPGI, GI Steel

• Material Thickness Range: 0.3mm - 0.8mm

• Control Type: PLC Fully Automatic Control

• Touch Screen System: Included

• Production Speed: 10-25m/min

• Forming Stations: 16-24 Rows

• Roller Material: High Strength 45# Steel

• Roller Treatment: Hard Chrome Coating

• Shaft Material: 45# Forged Steel

• Cutting Method: Hydraulic Cutting

• Blade Material: Cr12 Heat Treated Steel

• Drive System: Chain Transmission

• Main Motor Power: Customized

• Hydraulic Power: Customized

• Voltage Standard: 380V 50Hz 3Phase

• Machine Frame: Heavy Duty Welded Steel

• Machine Color: Customizable

• Suitable Profile: Corrugated Roofing Panel

• Feeding Width: Customized

• Machine Weight: Depends on Configuration

• Cutting Accuracy: ±1mm

• Automation Level: High Automation

• Continuous Production: Supported

• Low Noise Operation: Yes

• Lubrication System: Automatic Lubrication

• Encoder Measuring System: Included

• Hydraulic Station: High Pressure Hydraulic Unit

• Electrical Components: International Brand

• Industrial Grade Components: Yes

• Easy Operation Design: Yes

• Easy Maintenance Structure: Yes

• Energy Saving Technology: Yes

• Stable Forming Performance: Yes

• High Efficiency Output: Yes

• Long Service Life: Yes

• Corrosion Resistant Rollers: Yes

• Strong Structural Rigidity: Yes

• Automatic Counting Function: Included

• Emergency Stop System: Included

• Safety Protection System: Optional

• Custom Profile Design: Supported

• Custom Voltage Option: Available

• Hydraulic Decoiler Compatible: Yes

• Manual Decoiler Compatible: Yes

• Industrial Roofing Production: Supported

• Steel Structure Industry Application: Yes

• Roof Panel Manufacturing: Yes

• Export Standard Packing: Included

• Container Shipment Service: Available

Application Fields

This machine is widely used in the production of corrugated roofing sheets for industrial buildings, steel structure workshops, factories, warehouses, farm buildings, logistics centers, commercial projects, and modern residential roofing systems.

Why Choose Our Roll Forming Machine

Our roofing sheet roll forming machine combines modern engineering design, durable mechanical structure, precision forming technology, and intelligent automatic control. It offers reliable production performance, high productivity, low maintenance requirements, and flexible customization solutions for different roofing sheet profiles.
