Automatic Aluminum Steel Roofing Panel Roll Forming Machine

This advanced roofing panel roll forming machine is designed for manufacturing corrugated roofing sheets from aluminum, galvanized steel, and color-coated steel materials. The machine features a strong steel frame structure, automatic PLC control system, precision forming rollers, and hydraulic cutting technology to ensure stable operation and high-quality finished roofing panels.

The equipment is suitable for continuous industrial production and can manufacture different roofing sheet profiles according to customer requirements. It provides reliable forming performance, excellent cutting precision, low maintenance cost, and long service life.

Machine Overview

The roofing sheet machine adopts cold roll forming technology for efficient and continuous processing of metal coils into roofing panels. It is widely used in steel structure construction, industrial buildings, warehouses, commercial roofing systems, agricultural facilities, and modern residential projects.

With intelligent touch screen operation and automatic control functions, the machine is easy to operate and improves production efficiency while reducing labor costs. The equipment supports customized profile design and optional configurations according to project requirements.

Product Features & Technical Attributes

• Machine Type: Roofing Sheet Roll Forming Machine

• Suitable Material: Aluminum Sheet, GI Steel, PPGI Coil

• Material Thickness: 0.3mm - 0.8mm

• Control System: PLC Automatic Control

• Operation Mode: Fully Automatic

• Touch Screen Interface: Included

• Production Speed: 10-25m/min

• Forming Stations: 16-24 Stations

• Roller Material: 45# High Grade Steel

• Roller Surface: Hard Chrome Coating

• Shaft Material: Heat Treated 45# Steel

• Drive System: Chain Transmission

• Cutting Method: Hydraulic Cutting

• Cutting Blade Material: Cr12 Mold Steel

• Hydraulic System: High Pressure Hydraulic Unit

• Main Motor: Industrial Grade Motor

• Voltage Standard: 380V / 50Hz / 3Phase

• Frame Structure: Heavy Duty Welded Steel

• Machine Color: Customized Available

• Suitable Profile: Corrugated Roofing Panels

• Feeding Width: Customized

• Cutting Accuracy: ±1mm

• Length Measuring System: Encoder Control

• Hydraulic Decoiler Compatible: Yes

• Manual Decoiler Compatible: Yes

• Automation Level: High Automation

• Continuous Production: Supported

• Low Noise Operation: Yes

• Stable Forming Performance: Yes

• Long Service Life: Yes

• Easy Operation Design: Yes

• Easy Maintenance Structure: Yes

• Energy Saving Technology: Yes

• Industrial Grade Electrical Components: Yes

• Automatic Counting Function: Included

• Emergency Stop System: Included

• Safety Protection System: Optional

• Custom Profile Design: Supported

• Custom Voltage Configuration: Available

• Corrosion Resistant Rollers: Yes

• Strong Machine Rigidity: Yes

• High Precision Forming: Yes

• Roofing Panel Production: Yes

• Steel Structure Industry Application: Yes

• Container Loading Service: Available

• Export Standard Packaging: Included

• Installation Support: Available

• Online Technical Support: Available

• Machine Warranty: 12 Months

• Global Export Service: Supported

Application Areas

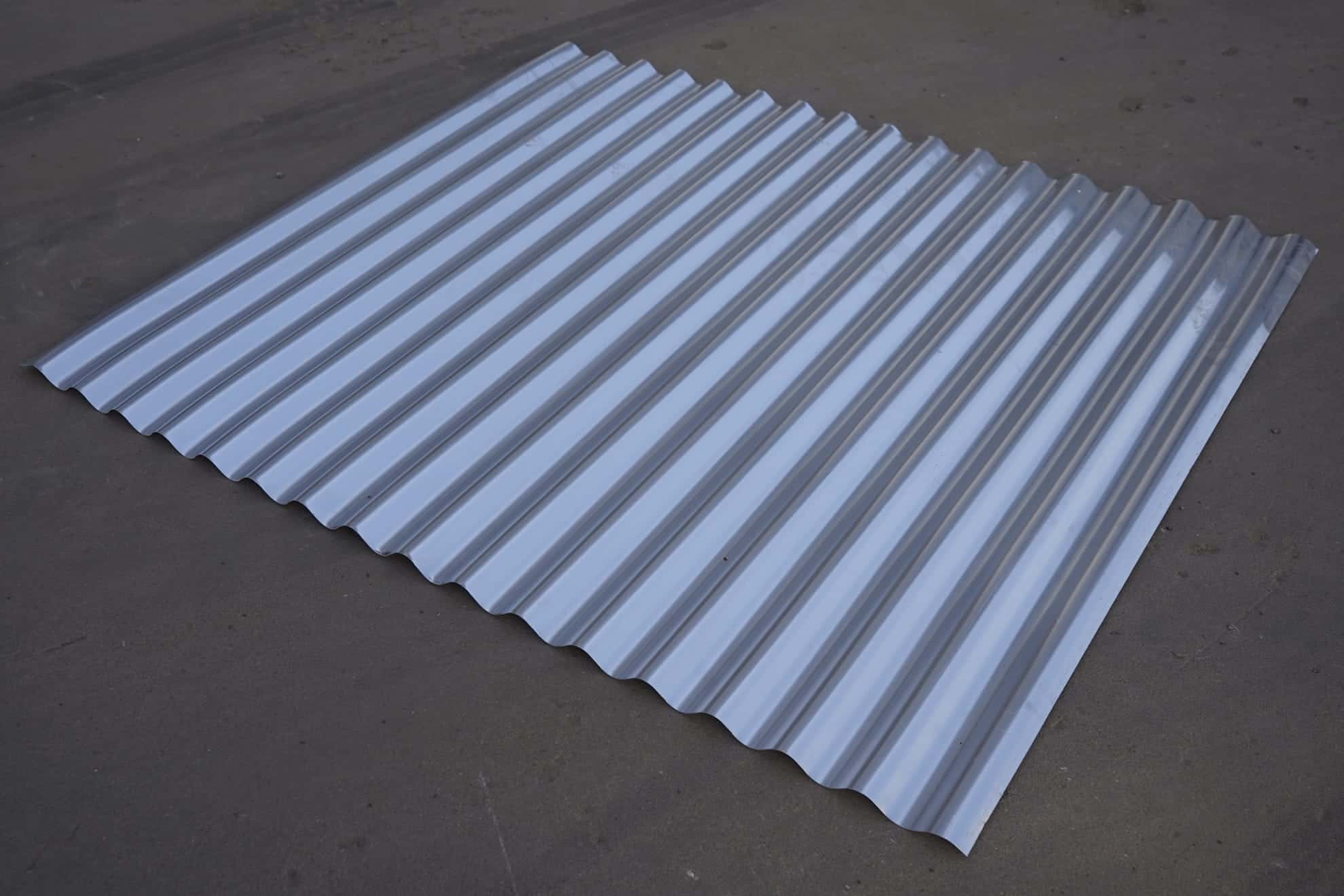

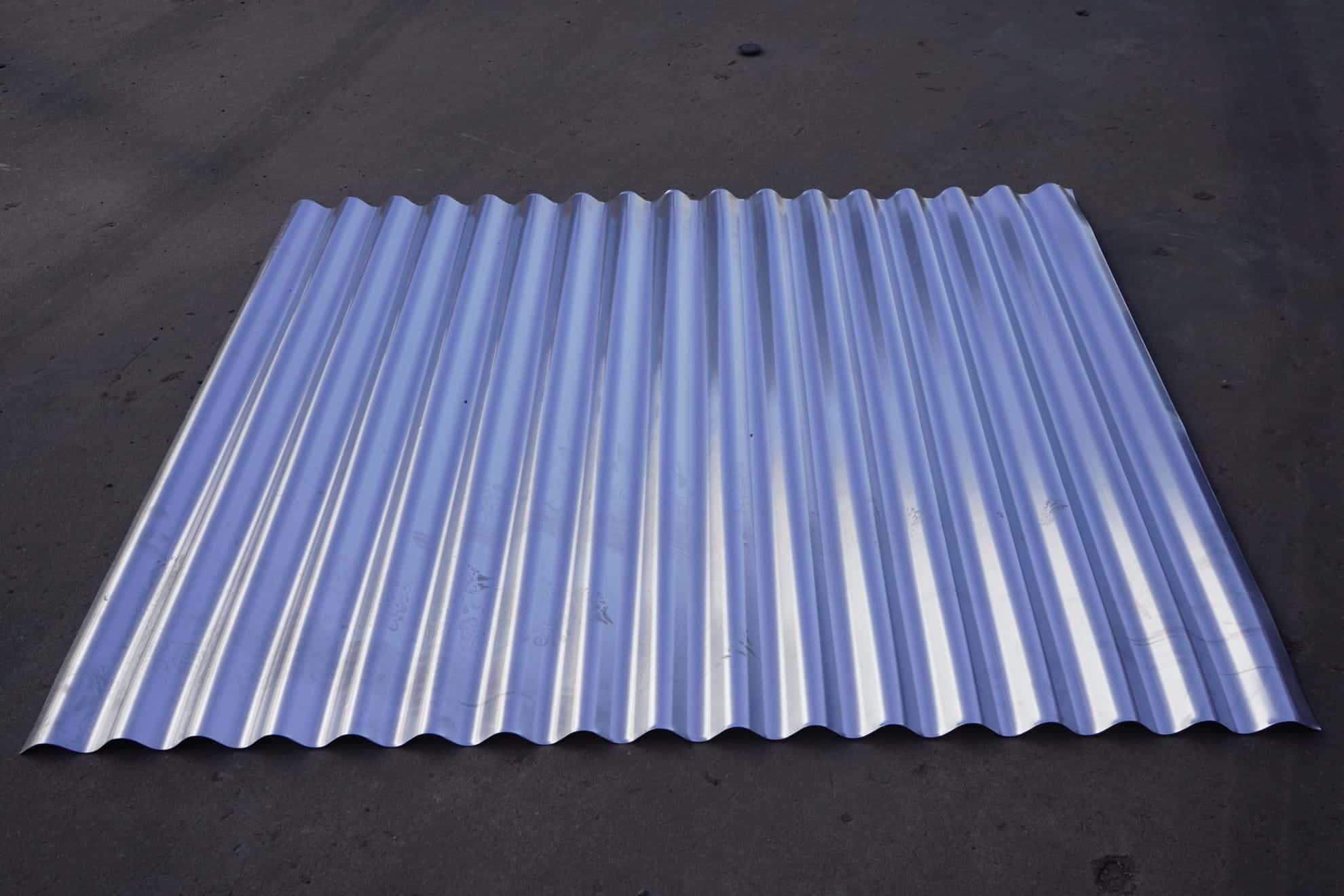

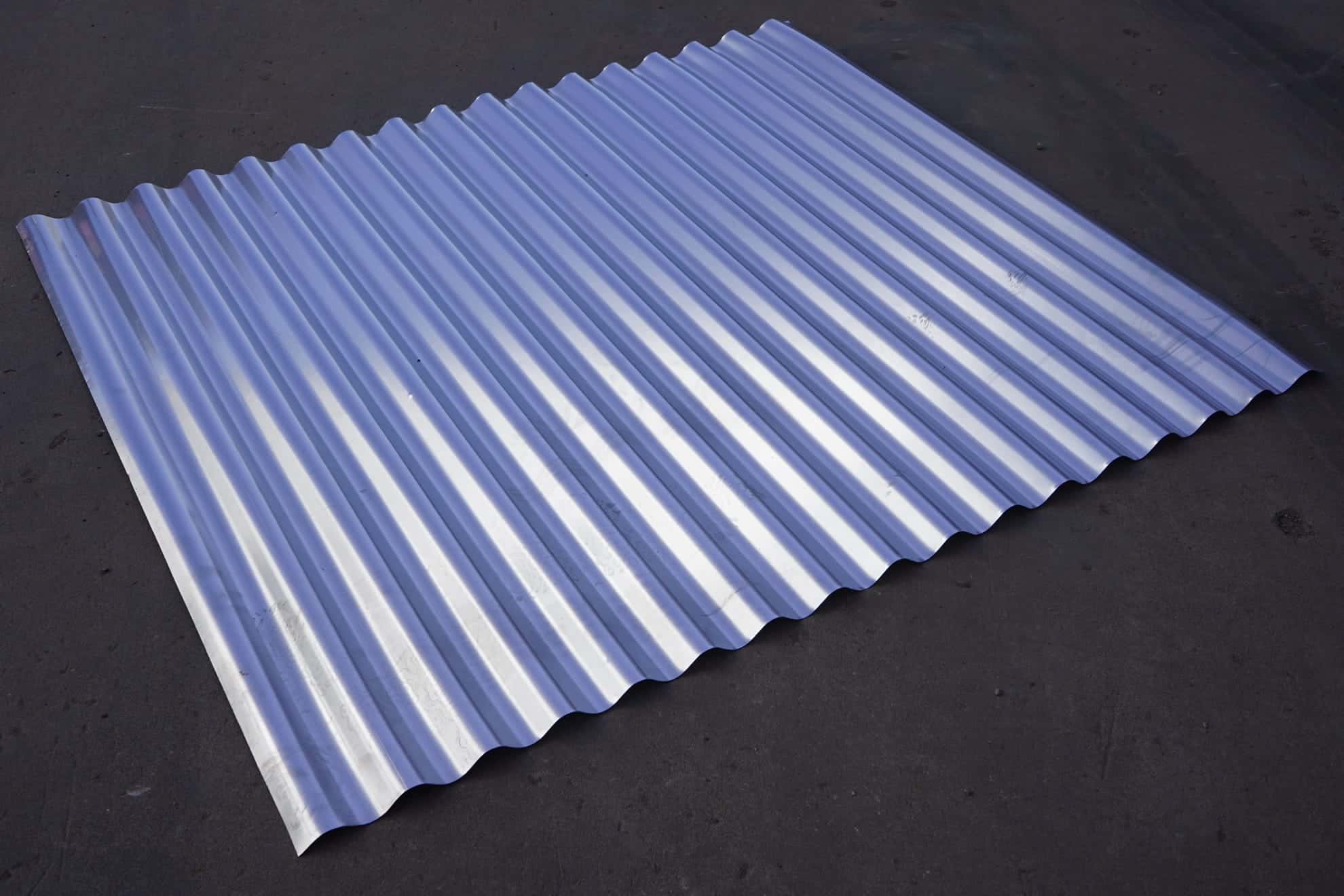

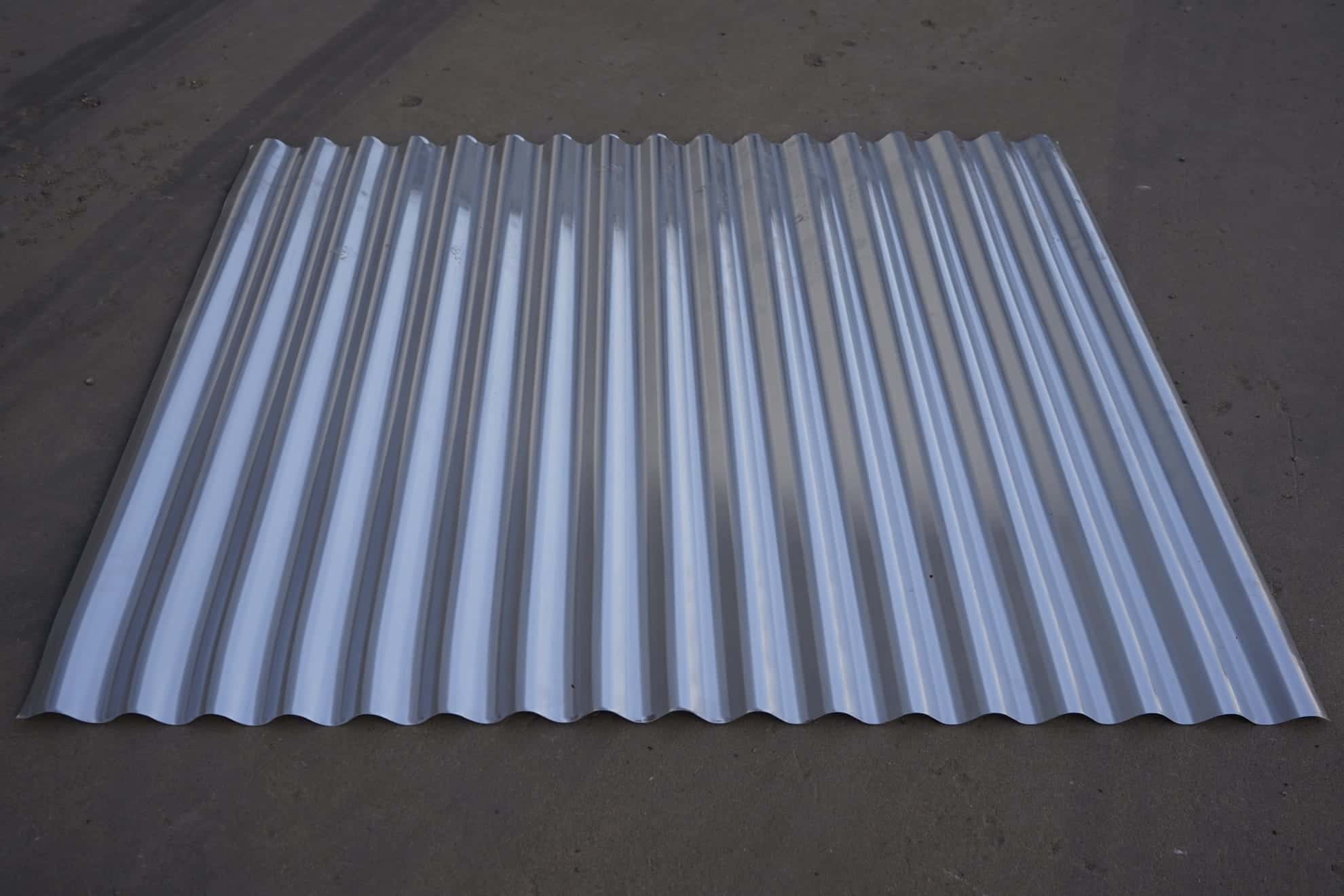

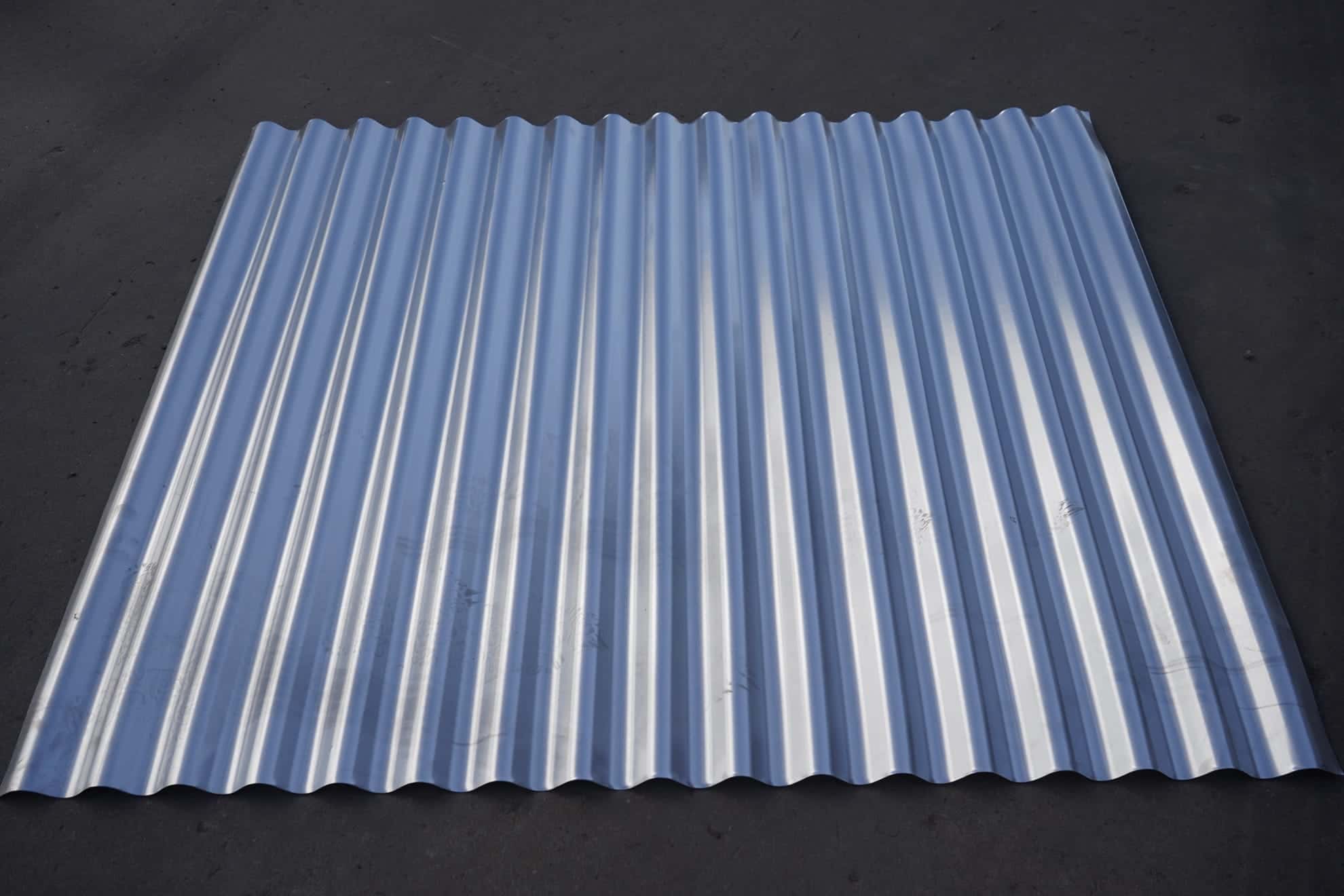

The corrugated roofing sheet roll forming machine is widely used for producing roofing sheets applied in factories, workshops, warehouses, shopping centers, agricultural sheds, steel structure buildings, logistics centers, and residential roofing systems.

Why Choose Our Roofing Sheet Machine

Our roll forming machine combines durable machine structure, intelligent automatic control, high-speed production capability, and excellent forming precision. The machine is manufactured using high-quality industrial components to ensure stable operation and long-term production reliability for roofing sheet manufacturers worldwide.
