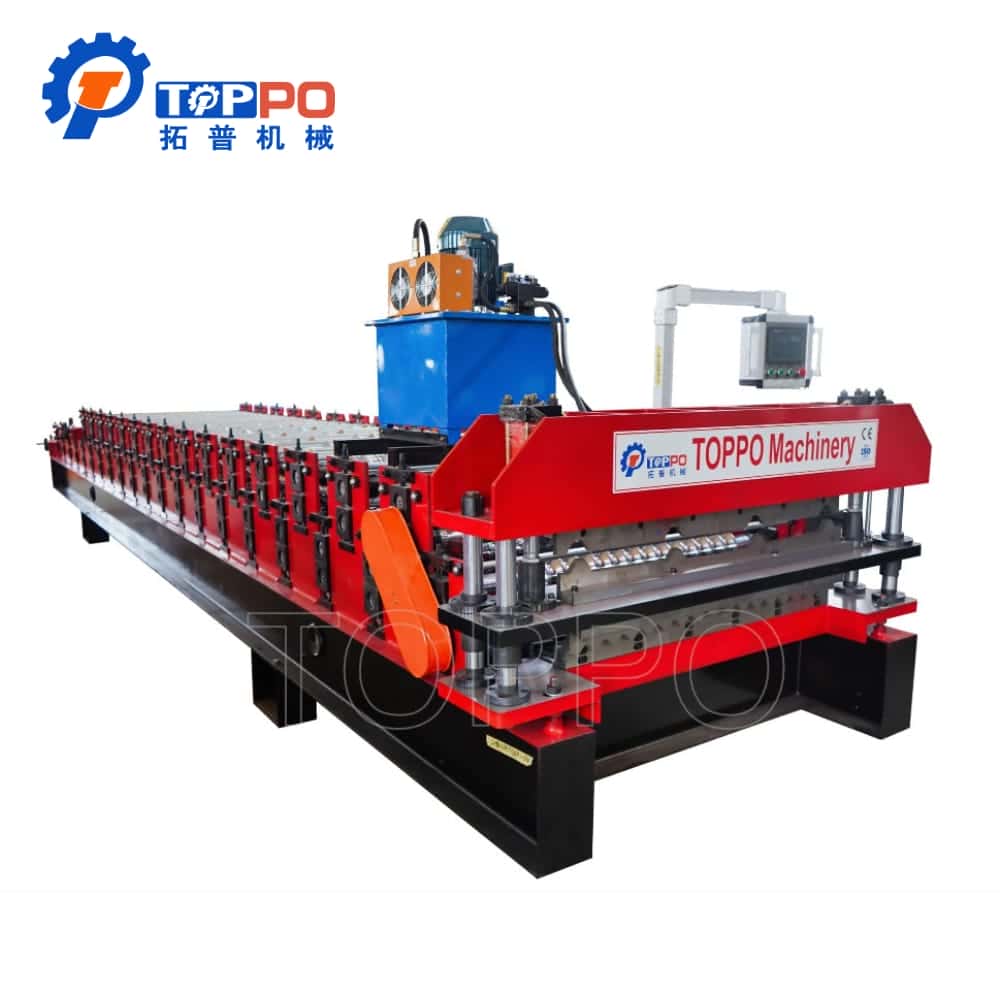

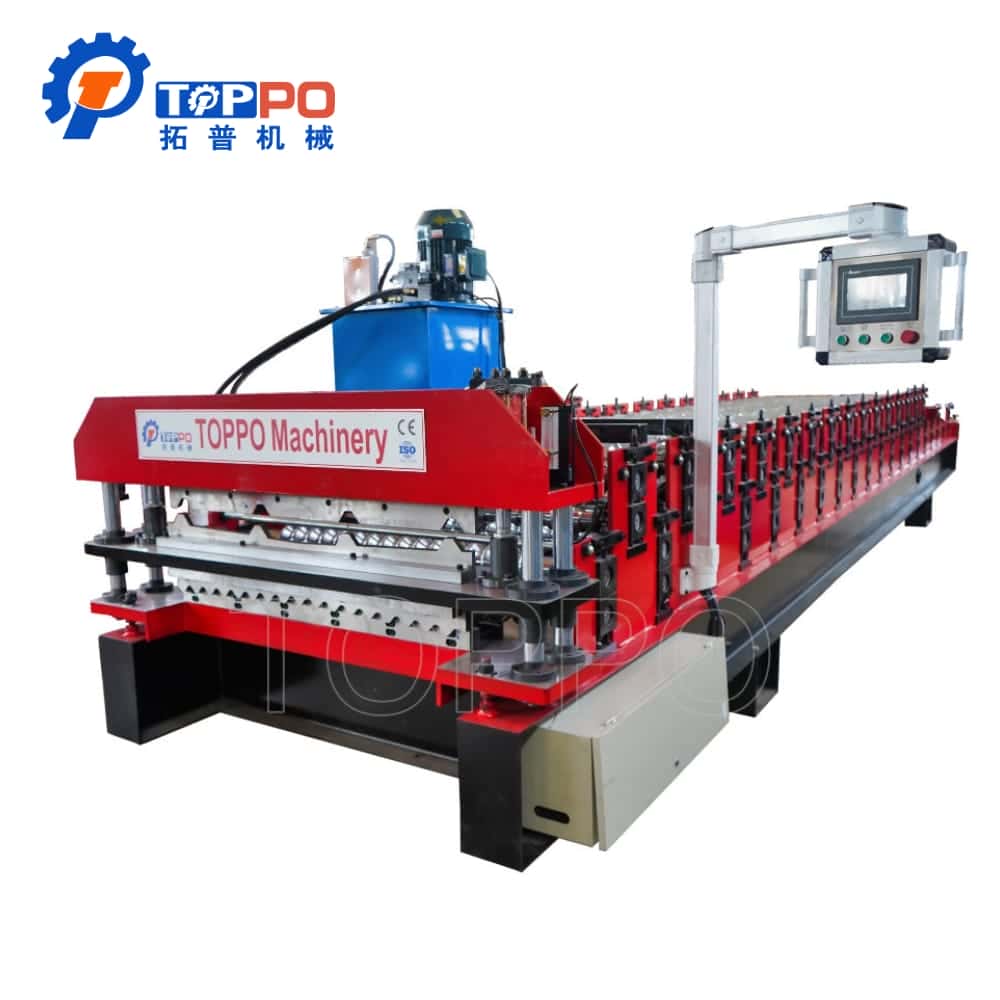

PLC Automatic Aluminum Steel Roofing Sheet Roll Forming Machine

This roofing sheet roll forming machine is designed for high-efficiency production of aluminum and steel corrugated roofing panels. Equipped with an advanced PLC automatic control system, hydraulic cutting technology, and high-precision forming rollers, the machine ensures smooth operation, accurate profile forming, and long-term production stability.

The machine is widely used in construction material manufacturing, steel structure projects, industrial buildings, agricultural roofing systems, warehouses, workshops, and residential roofing applications. It supports customized roofing profiles and flexible production configurations according to customer requirements.

Machine Description

The roll forming equipment adopts continuous cold forming technology to process metal coils into corrugated roofing sheets with high efficiency and excellent surface quality. Its heavy-duty welded frame structure and industrial-grade transmission system provide reliable performance even during long production cycles.

The machine is easy to operate through the intelligent touch screen interface. Operators can conveniently adjust production length, quantity, and cutting parameters through the PLC system, improving automation and reducing labor costs.

Technical Features & Product Attributes

• Machine Type: Roofing Sheet Roll Forming Machine

• Application Material: Aluminum Sheet, Galvanized Steel, PPGI Coil

• Material Thickness Range: 0.3mm - 0.8mm

• Control System: PLC Automatic Control

• Touch Screen Panel: Included

• Production Speed: 10-25m/min

• Forming Stations: 16-24 Stations

• Roller Material: High Strength 45# Steel

• Roller Surface Treatment: Hard Chrome Coating

• Shaft Material: Heat Treated Steel

• Transmission Type: Chain Drive System

• Cutting Method: Hydraulic Cutting

• Cutting Blade Material: Cr12 Mold Steel

• Main Motor Type: Industrial Grade Motor

• Hydraulic Station: High Pressure Hydraulic Unit

• Voltage Standard: 380V / 50Hz / 3Phase

• Frame Structure: Heavy Duty Welded Steel

• Machine Color: Customizable

• Suitable Profiles: Corrugated Roofing Panels

• Feeding Width: Customized Available

• Cutting Accuracy: ±1mm

• Length Measuring System: Encoder Measuring

• Automation Level: Fully Automatic

• Continuous Production Capability: Yes

• Low Noise Operation: Supported

• Automatic Lubrication System: Optional

• Hydraulic Decoiler Compatible: Yes

• Manual Decoiler Compatible: Yes

• Stable Forming Performance: Yes

• High Precision Forming: Yes

• Strong Structural Rigidity: Yes

• Corrosion Resistant Rollers: Yes

• Energy Saving Design: Yes

• Industrial Electrical Components: Yes

• Automatic Counting Function: Included

• Emergency Stop Function: Included

• Safety Protection System: Optional

• Easy Maintenance Structure: Yes

• Easy Operation Interface: Yes

• Custom Profile Design: Supported

• Custom Voltage Option: Available

• Roof Panel Manufacturing: Yes

• Steel Structure Industry Application: Yes

• Industrial Roofing Production: Yes

• Long Service Life: Yes

• High Efficiency Output: Yes

• Installation Support: Available

• Online Technical Support: Available

• Machine Warranty: 12 Months

• Export Standard Packaging: Included

• Container Shipment Service: Available

Application Industries

This roofing sheet forming machine is widely applied in factories, warehouses, workshops, agricultural facilities, shopping centers, logistics buildings, steel structure projects, and residential roofing systems. It provides efficient and reliable roofing sheet production for modern construction industries.

Why Choose Our Roofing Sheet Roll Forming Machine

Our machine combines advanced roll forming technology, durable machine construction, intelligent PLC automation, and excellent production efficiency. It is manufactured using premium industrial components to ensure stable performance, low maintenance cost, and long-term production reliability for customers worldwide.
