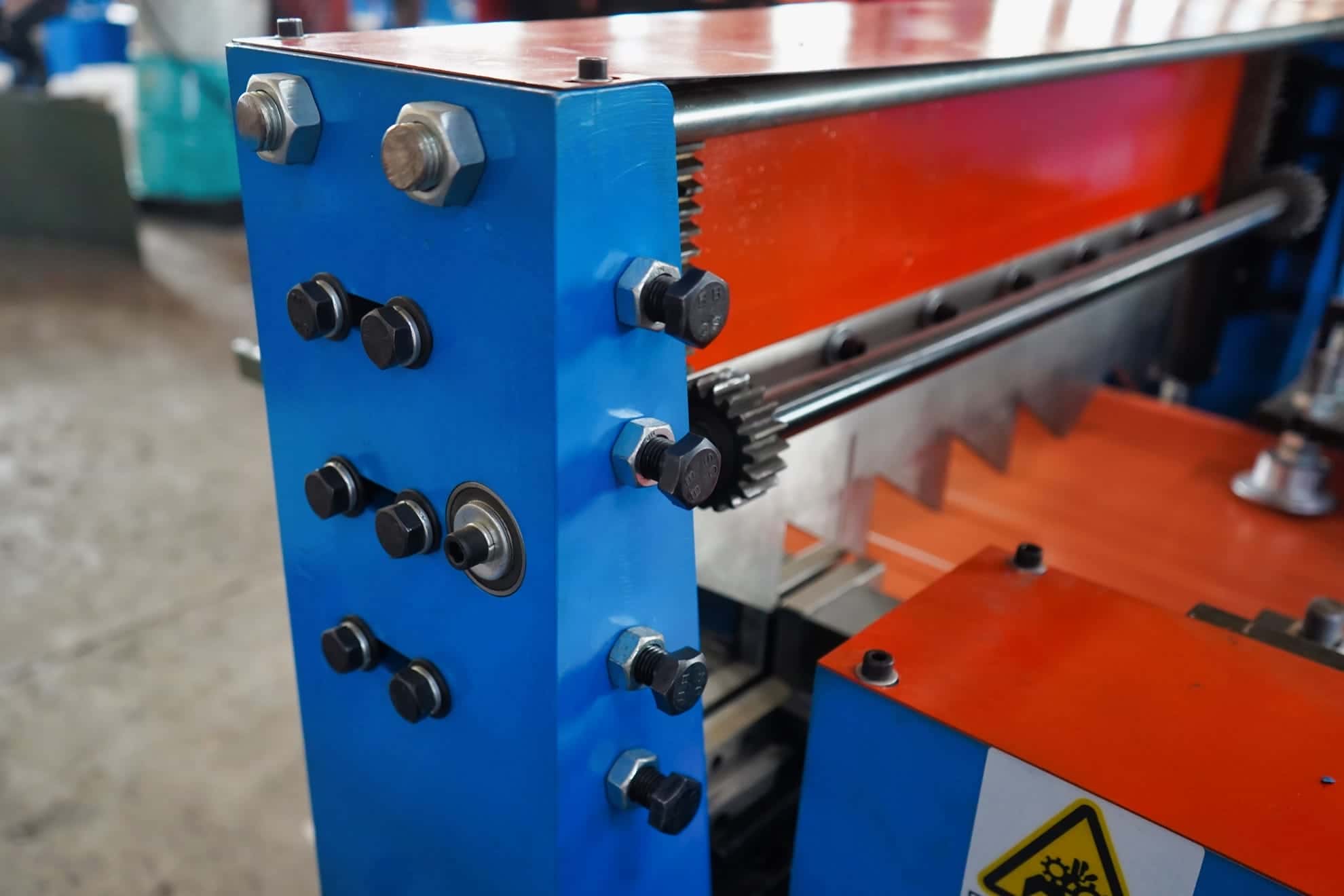

This standing seam roll forming machine is designed for manufacturing high-quality metal roofing panels with precision and efficiency. It is widely used in construction, industrial buildings, and roofing projects.
Machine Type: Standing seam roll forming machine
Material: High-grade steel structure
Roller Material: Cr12 hardened steel
Control System: PLC automatic control
Operation Mode: Fully automatic
Cutting Type: Hydraulic cutting
Cutting Tolerance: ±1mm
Forming Speed: 10-20 m/min
Voltage: 380V/50Hz/3Phase (customizable)
Drive System: Chain drive
Frame Structure: Welded steel frame
Roll Stations: 12-18 stations
Shaft Material: 45# steel
Shaft Diameter: 70mm
Thickness Range: 0.3-0.8mm
Feeding Width: Customizable
Profile Type: Standing seam roofing panel
Panel Width: Adjustable
Cut Length: Adjustable
Lubrication System: Automatic lubrication
Cooling System: Air cooling
Motor Power: 5.5KW
Hydraulic Power: 4KW
Transmission: Gear and chain combination
Surface Treatment: Painted and anti-rust
Noise Level: Low noise operation
Precision Level: High precision forming
Automation Level: High automation
Production Capacity: Continuous production
Safety System: Emergency stop button
Control Interface: Touch screen panel
Language Support: Multi-language
Maintenance: Easy maintenance
Installation: Simple installation
Application: Metal roofing production
Suitable Material: Galvanized steel, aluminum, PPGI
Machine Color: Customizable
Dimension: Custom design
Weight: Approx. 3-5 tons
Warranty: 1 year
After-sales Service: Technical support available
Packaging: Standard export package
Delivery Time: 30-45 days
The machine is engineered for durability and long-term performance. It ensures consistent panel quality and supports customized designs according to customer requirements. Ideal for roofing contractors and metal fabrication industries.
