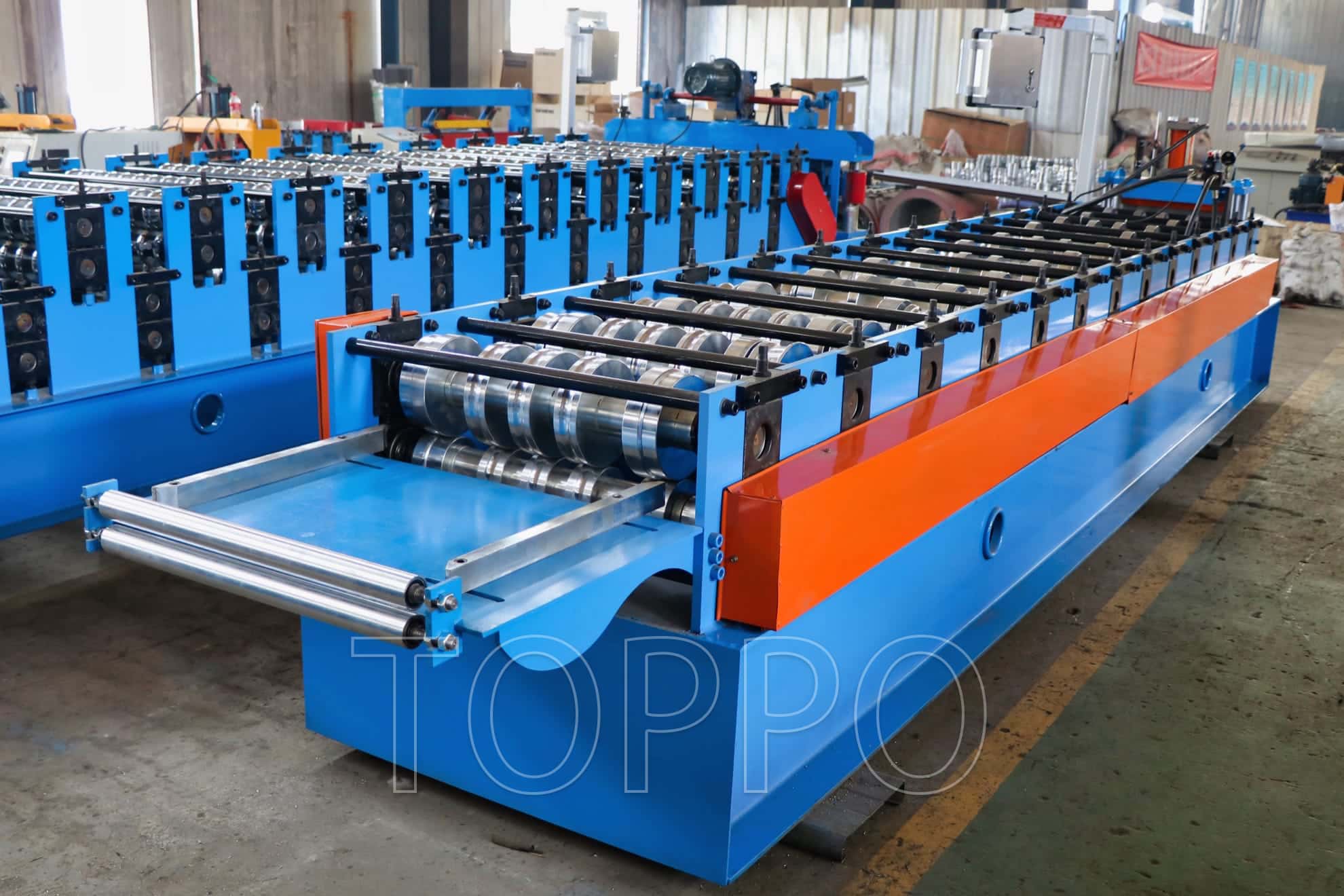

Automatic Standing Seam Roll Forming Machine

This machine is specially designed for producing standing seam metal roofing panels with high accuracy and durability. It integrates advanced forming technology with a robust mechanical structure, making it ideal for industrial and commercial roofing applications.

Product Features & Specifications

• Machine Type: Standing seam roll forming machine

• Application: Metal roofing panel production

• Material Compatibility: Galvanized steel, aluminum, PPGI

• Control System: PLC intelligent control

• Operation: Fully automatic

• Cutting Method: Hydraulic cutting system

• Forming Speed: 10-25 m/min

• Voltage: 380V/50Hz/3Phase (customizable)

• Drive System: Chain and gear transmission

• Roller Material: Cr12 steel with heat treatment

• Roll Stations: 14-20 stations

• Shaft Material: 45# high-strength steel

• Shaft Diameter: 70-80mm

• Frame Structure: Heavy-duty welded steel frame

• Thickness Range: 0.3-0.8mm

• Feeding Width: Adjustable

• Panel Width: Customizable

• Profile Type: Standing seam

• Cutting Accuracy: ±1mm

• Motor Power: 5.5-7.5KW

• Hydraulic Power: 4KW

• Cooling Method: Air cooling

• Lubrication System: Automatic lubrication

• Control Interface: Touch screen HMI

• Language: Multi-language support

• Transmission Type: Continuous forming

• Noise Level: Low noise

• Automation Level: High automation

• Production Mode: Continuous production

• Safety Protection: Emergency stop & safety guards

• Surface Treatment: Anti-rust painting

• Machine Color: Customizable

• Dimension: Custom design available

• Weight: Approx. 3-6 tons

• Installation: Easy installation

• Maintenance: Low maintenance cost

• Durability: Long service life

• Precision: High forming precision

• Stability: Stable operation

• Customization: Profile customization supported

• Packaging: Standard export packing

• Delivery Time: 30-45 days

• Warranty: 12 months

• After-sales Service: Technical support & training

Additional Advantages

This standing seam roll forming machine ensures smooth and precise panel shaping, making it suitable for modern roofing systems. It supports custom profile designs and can be integrated into automated production lines. With strong structural stability and user-friendly operation, it significantly improves production efficiency while reducing labor costs.

Widely used in construction projects, warehouses, factories, and steel structure buildings, this machine is an ideal choice for manufacturers seeking reliability and performance.
