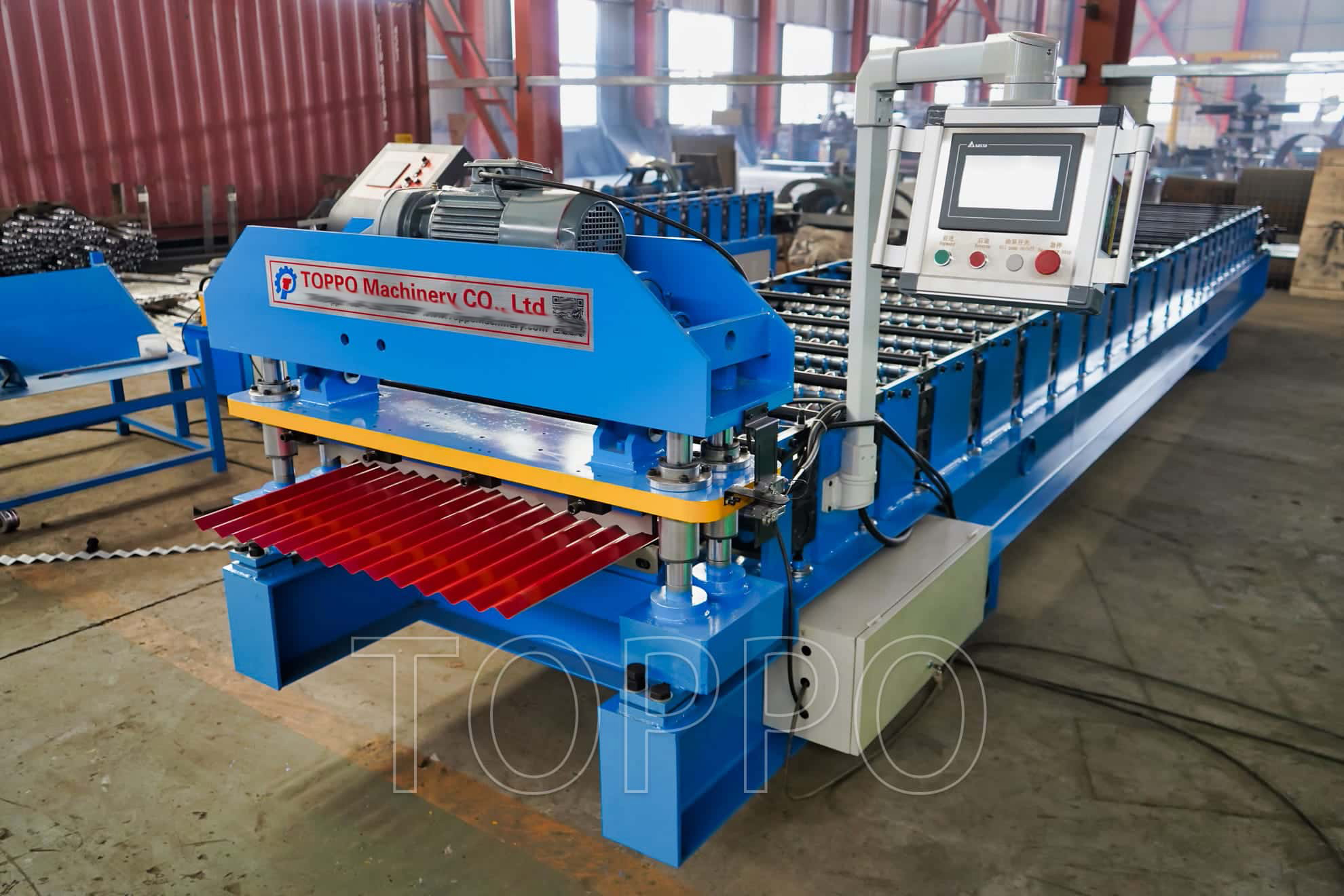

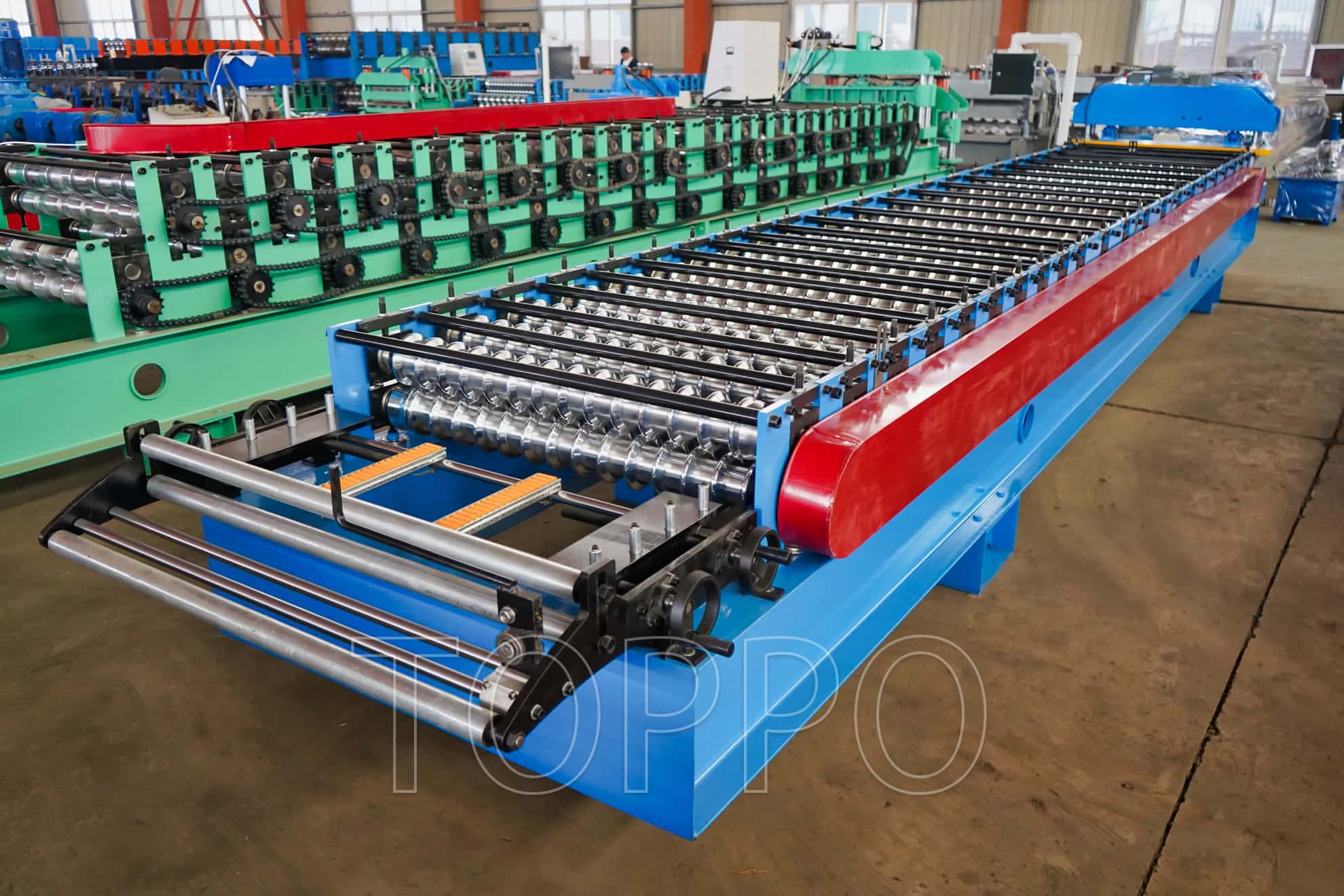

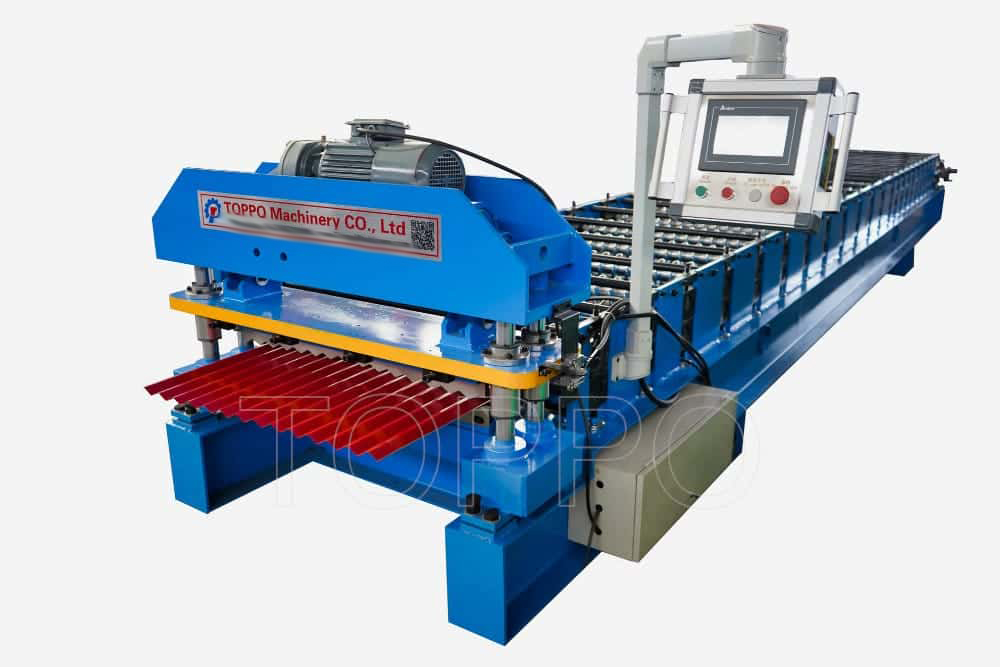

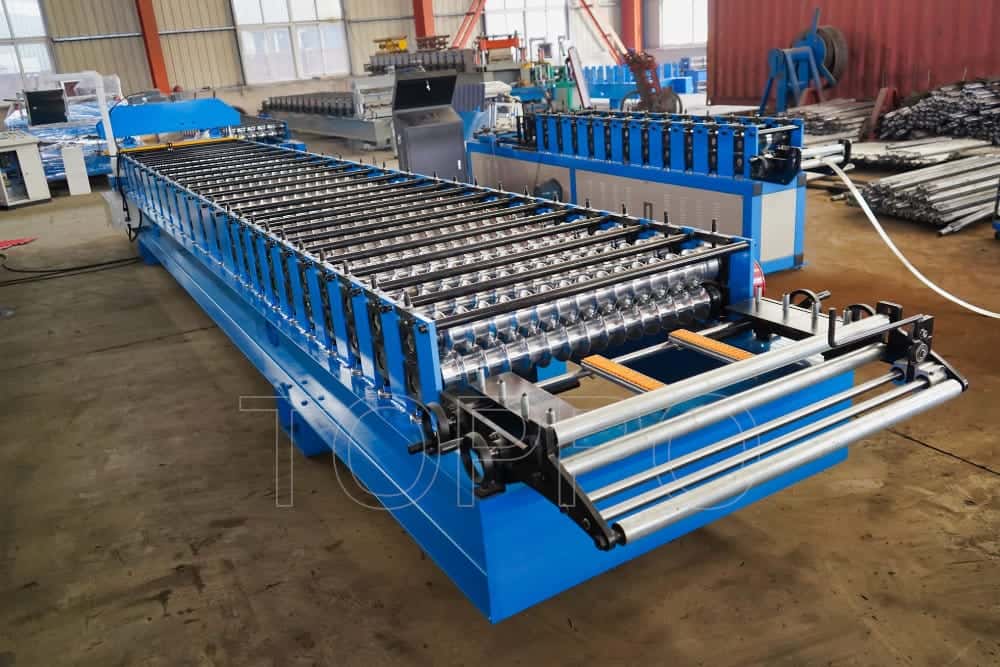

This AG roofing panel roll forming machine is a fully automatic production system engineered for manufacturing high-quality corrugated and trapezoidal metal roofing sheets. Featuring a robust structure, precision rollers, and an advanced PLC control system, it ensures smooth operation, high efficiency, and consistent product quality for industrial-scale production.
Machine Type: AG roofing panel roll forming machine
Forming Method: Continuous cold roll forming
Automation Level: Fully automatic
Control System: PLC intelligent control with touch screen
Material Type: PPGI, GI, aluminum, galvanized steel
Material Thickness: 0.3mm - 0.8mm
Forming Speed: 10-30 m/min

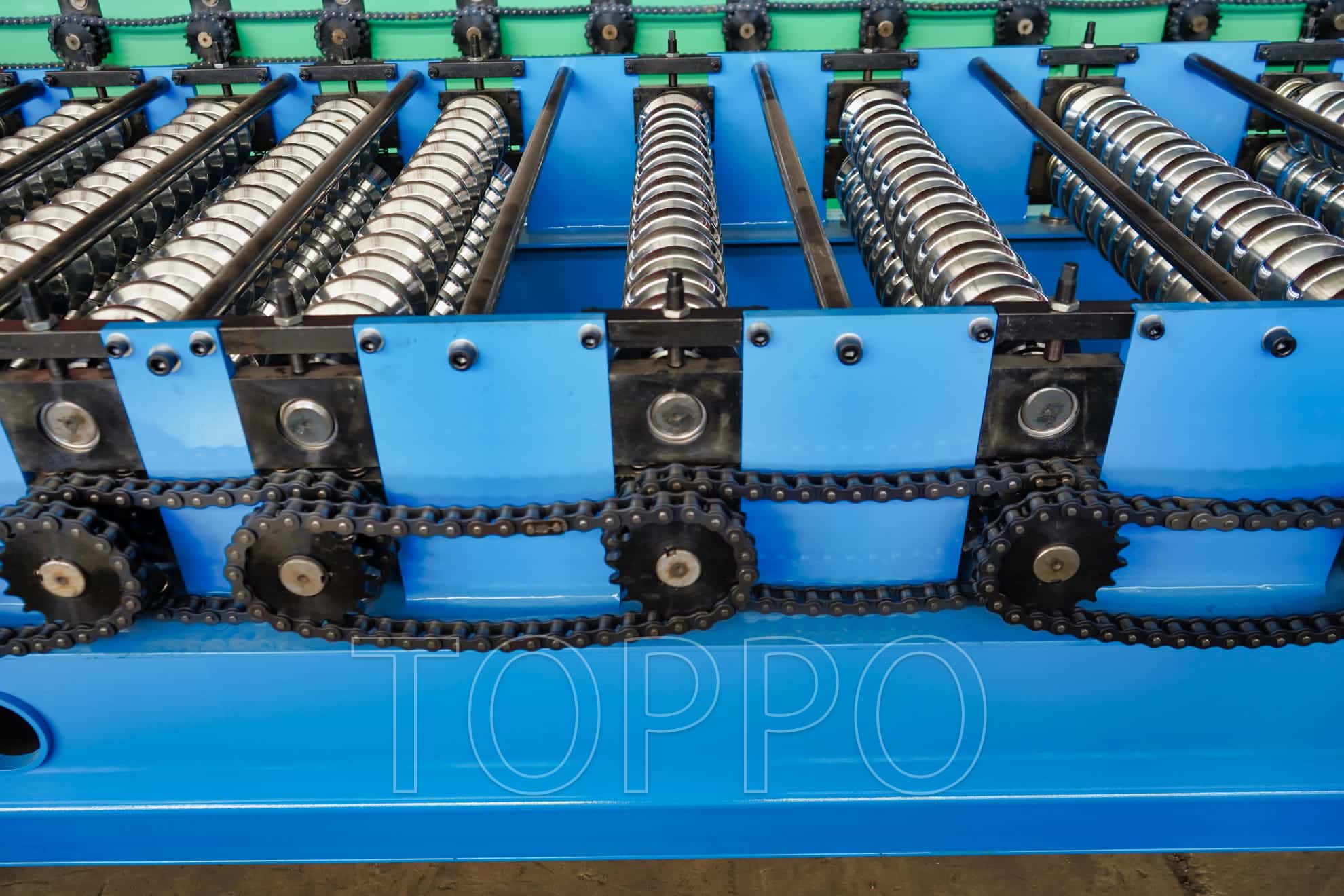

Roller Stations: 14-22 stations

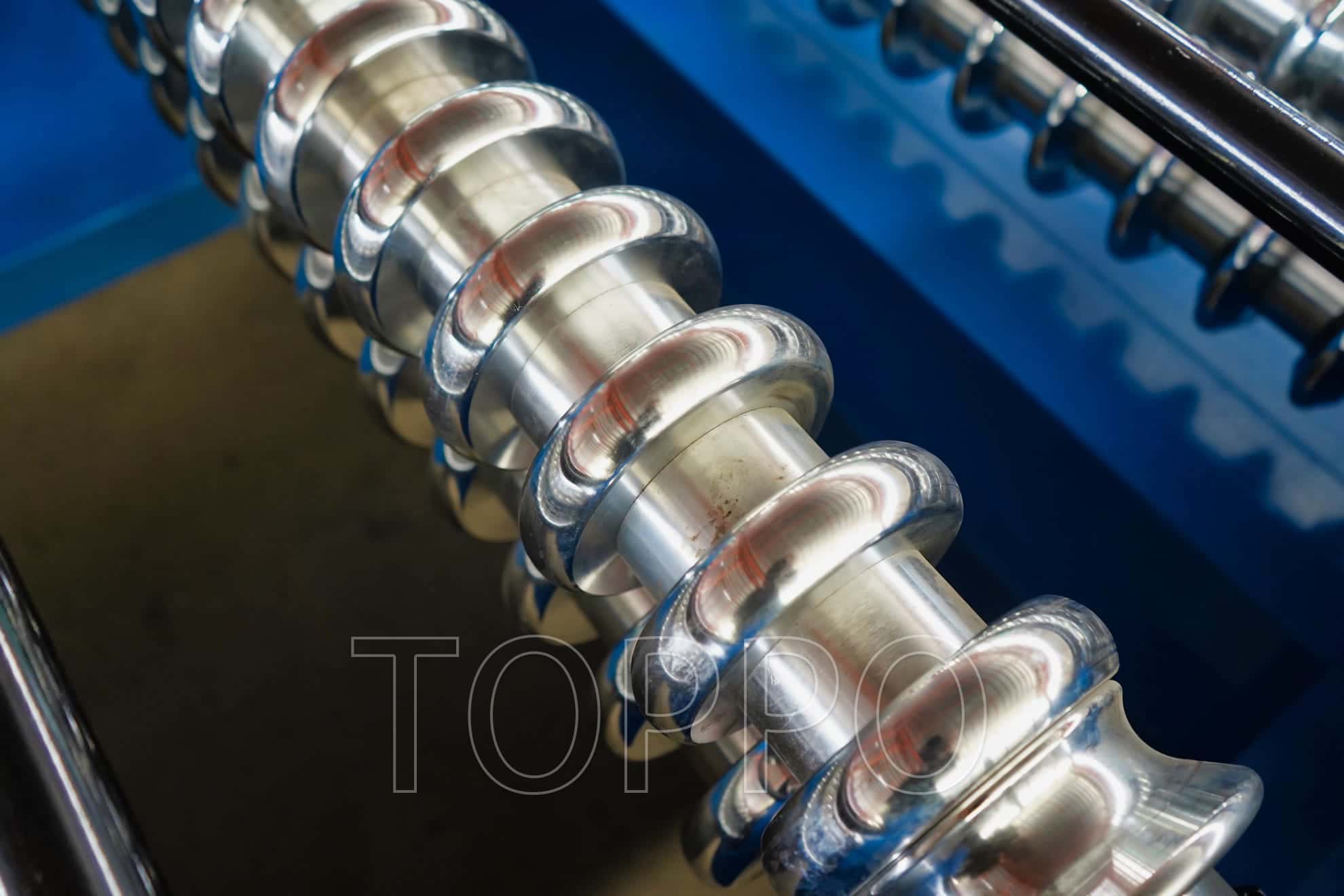

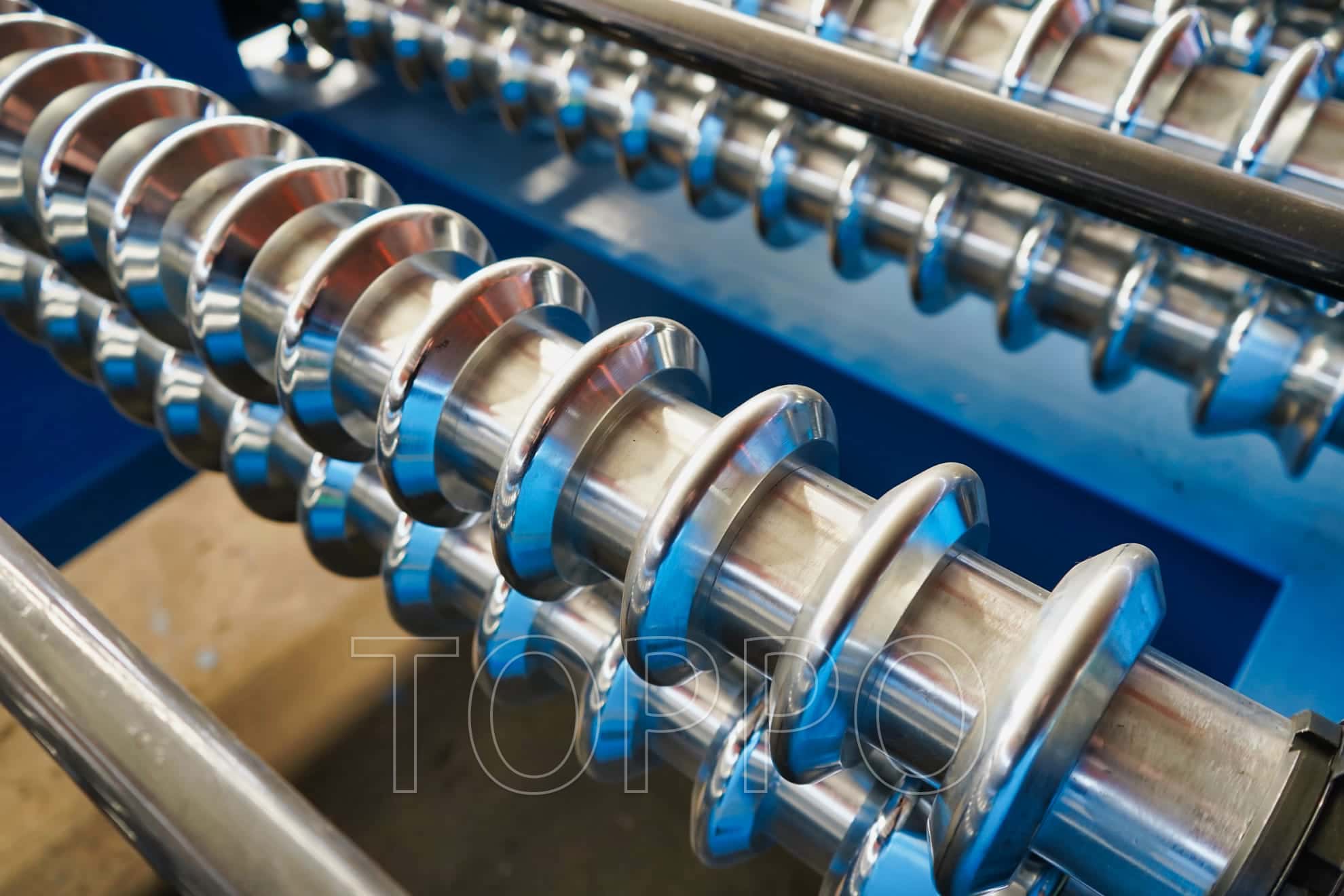

Roller Material: 45# high-strength steel
Roller Surface Treatment: Chrome plated
Shaft Material: Heat-treated 45# steel

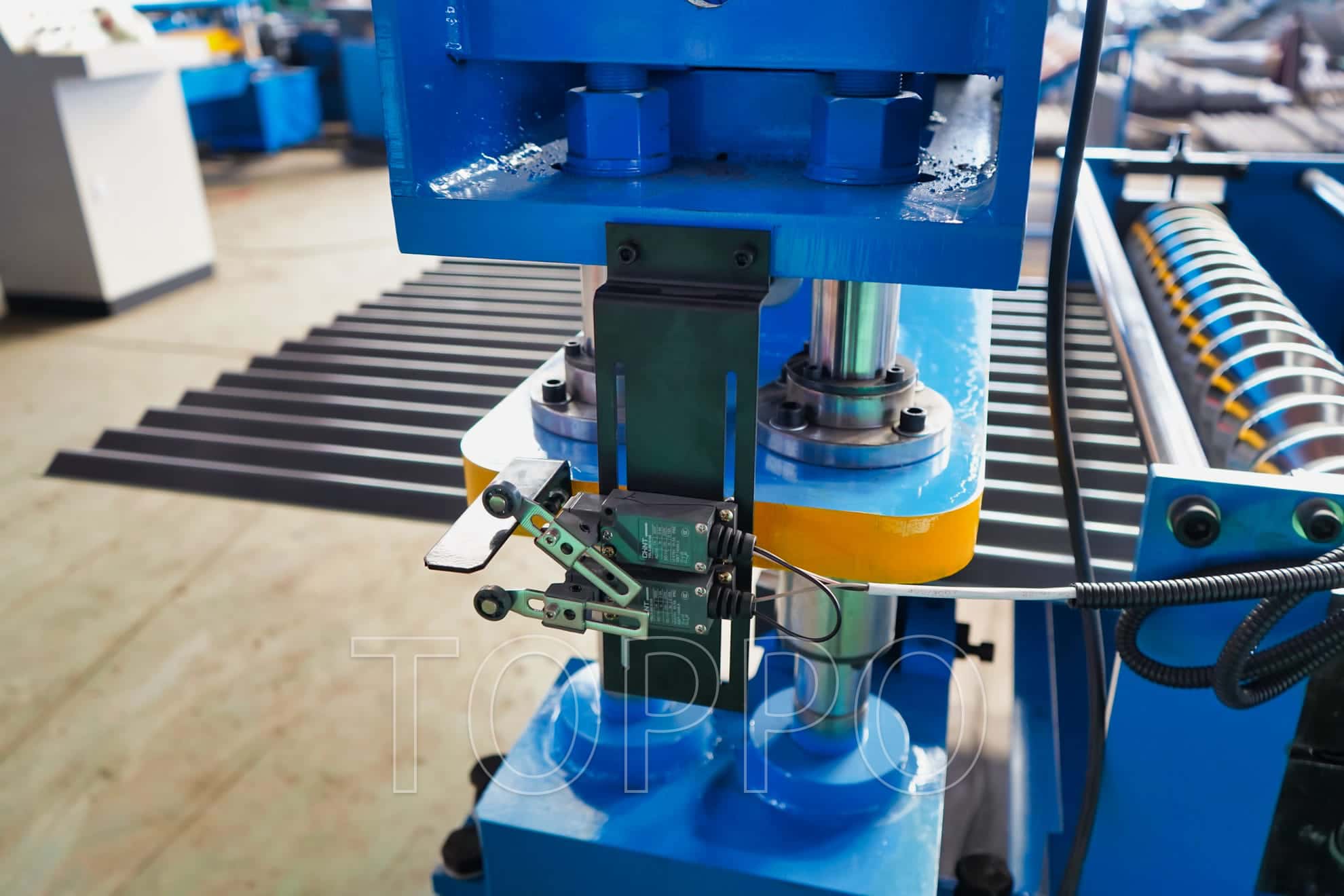

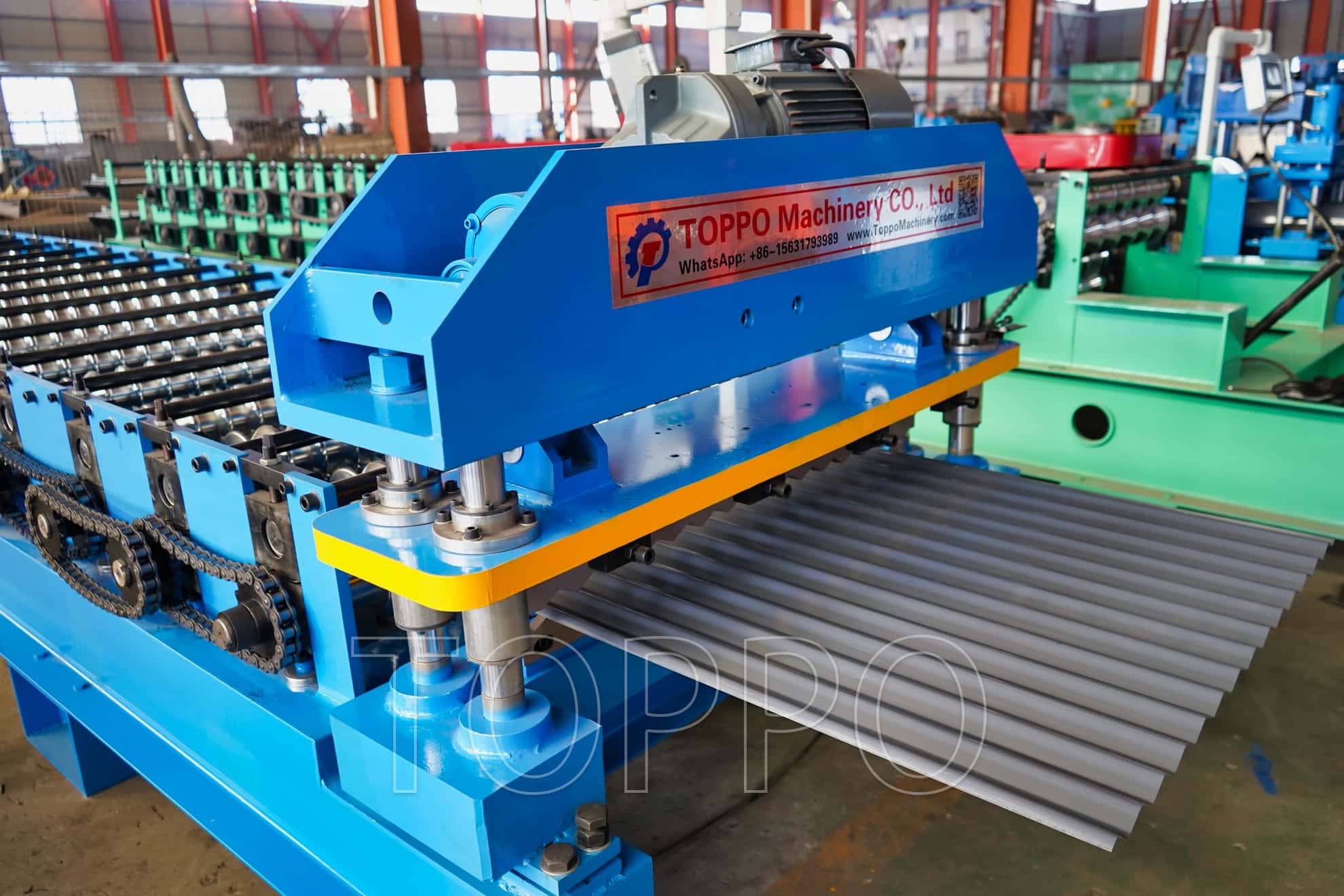

Cutting Type: Hydraulic cutting system
Blade Material: Cr12Mov steel

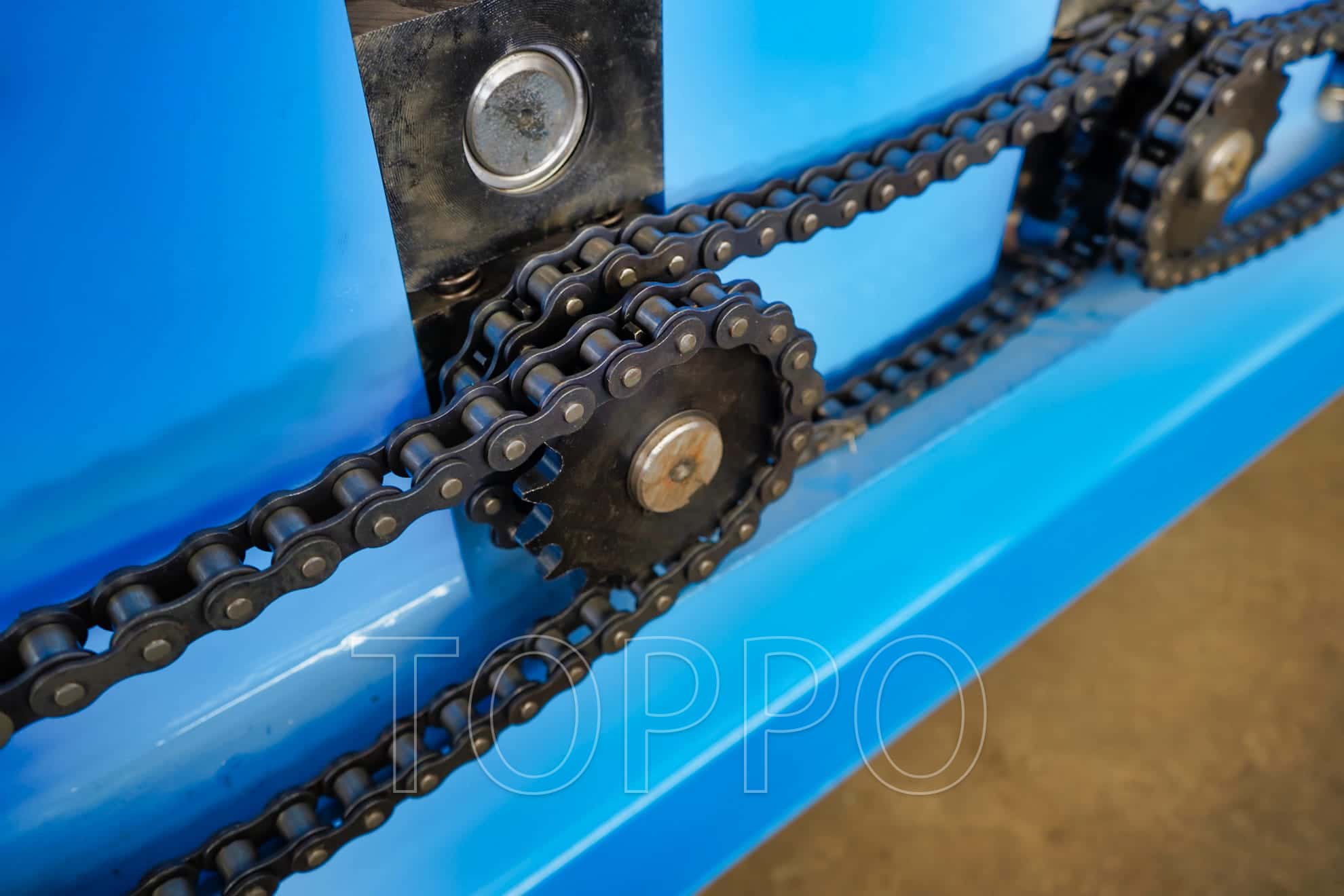

Drive System: Chain drive or gearbox optional
Main Motor Power: 5.5KW - 11KW
Hydraulic Power: 3KW - 5.5KW
Voltage: 380V / 50Hz / 3 Phase (customizable)
Feeding Width: Adjustable
Effective Width: Based on profile design
Frame Structure: Heavy-duty welded steel frame
Machine Color: Customizable
Decoiler Type: Manual or hydraulic decoiler
Decoiler Capacity: 5T - 10T
Leveling Device: Integrated leveling system
Transmission Precision: High precision transmission

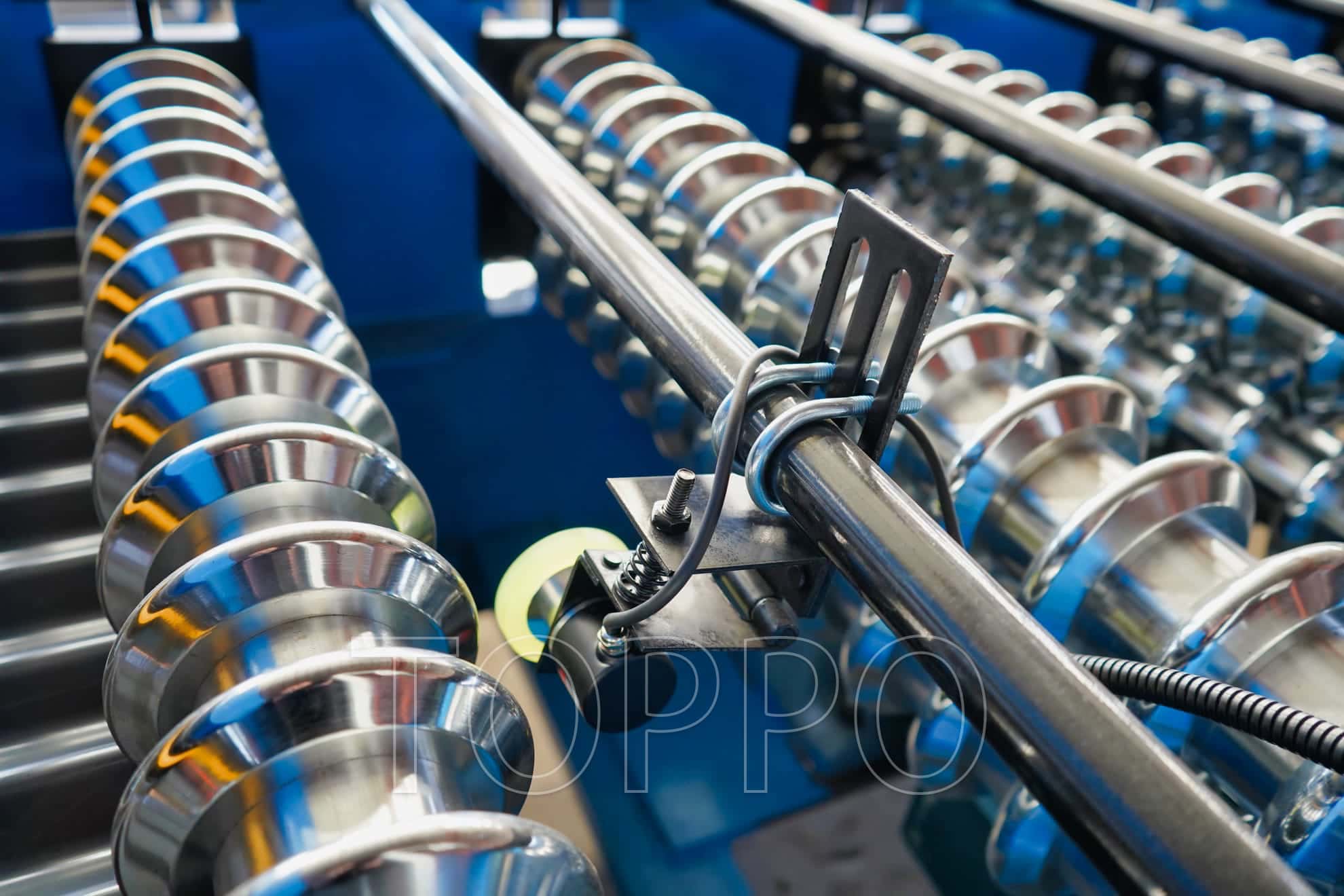

Length Control: Encoder controlled
Cut Length Accuracy: ±1mm
Electrical Components: Schneider / Delta brands
Touch Screen Brand: Siemens / Delta optional
Operation Language: Multi-language support
Lubrication System: Automatic lubrication
Cooling System: Optional configuration
Safety Features: Emergency stop and protective covers
Noise Level: Low noise operation
Maintenance: Easy maintenance design
Installation: Quick and simple setup
Operator Requirement: Minimal labor required
Durability: Long service life
Production Efficiency: High output capacity
Customization: OEM & ODM supported
Certification: CE / ISO standards
Widely used for producing AG type corrugated roofing panels for factories, warehouses, workshops, agricultural buildings, logistics centers, and commercial construction projects.
This machine combines precision engineering with automation to deliver stable performance and high productivity. It reduces labor costs while ensuring consistent product quality. Custom profile designs are supported to meet diverse customer requirements.
We provide comprehensive technical support including installation, commissioning, training, and after-sales service to ensure long-term reliable operation.
