Applicable Material: PPGI, GI, Aluminum
Material Thickness: 0.3–0.8 mm
Forming Speed: 12–18 m/min
Main Motor Power: 7.5 KW
Hydraulic Cutting Power: 4 KW
Roller Stations: 16–24
Roller Material: GCr15 steel, hardened and polished
Structure: 300–350 H-beam base

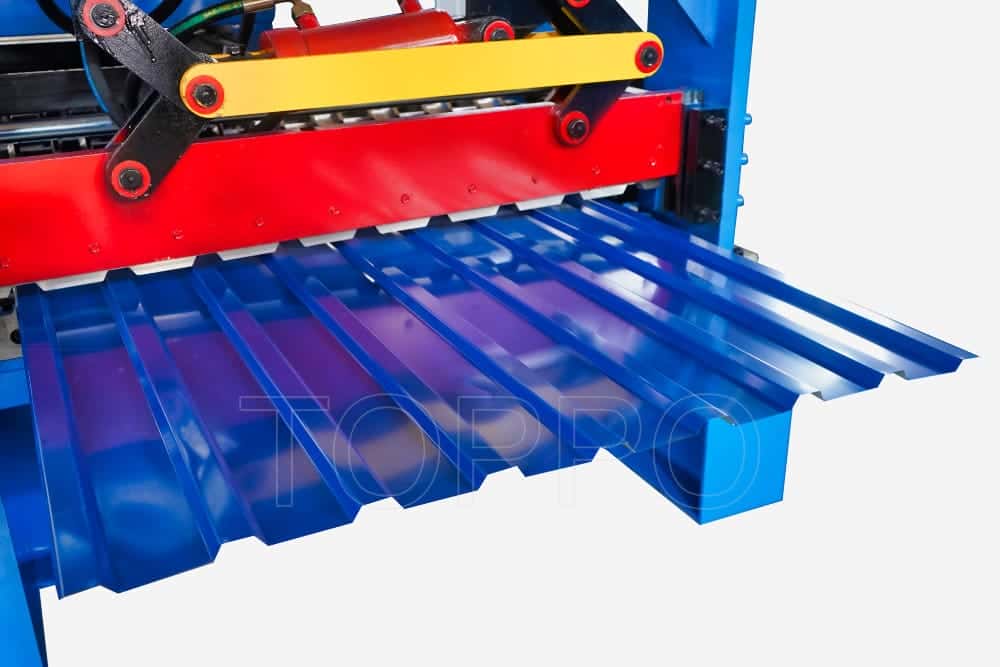

Cutting System: Hydraulic post-cutting with automatic length setting
Drive System: Chain or gearbox drive optional
Control Panel: PLC (Siemens/Mitsubishi/Delta) with touchscreen
Cutting Blade: Cr12 with heat treatment
Feeding Width: Custom based on profile
Effective Panel Width: 600–1000 mm
Output Length Accuracy: ±1 mm
Roller Shaft Diameter: 70–95 mm
Power Supply: 380V/50Hz/3Phase (custom available)
Machine Weight: 6–8 tons
Machine Size: ~8.5 x 1.6 x 1.5 m
Noise Level: ≤70 dB
Cooling System: Optional for tropical zones
Operation Language: Multiple language support
Safety Features: Protective covers and emergency stop
Profile Customization: Available upon request
Warranty: 12 months
Certification: CE, ISO9001
Support: Technical documentation and video training
Remote diagnostics support available
Low maintenance structure
Anti-rust treated components
High automation reduces manual labor
Integrated material guiding system
Standard export packing with waterproof film
Delivery Time: 30–45 working days
